Windows 7: How to create partition for win7 Home basic 64 bit??


30 Sep 2012   #1

windows 7 Ultimate 64bit


How to create partition for win7 Home basic 64 bit??

Hello,
I just got a new LENOVO ULTRABOOK U410, Windows 7 homebasic 64bit.
500 GB + 24 GB SSD;
It consist of 2 drives,
C drive- Os installed
D drive- drivers and applications installed

Now, i want to make partition of C or D drive but i dont have optical drive,so that to create a recovery disk. Didn't tried for any of the shrink methods to create dynamic drive as its a new 1 and i dont want to mess with it.
So, is there any solution to make recovery first(soft copy) and then create partitions on any drive.. Thnk u.

My System SpecsSystem Spec
.

30 Sep 2012   #2
Microsoft MVP

64-bit Windows 8.1 Enterprise



Hello vishUltra, and welcome to Seven Forums.

Please post back with a screenshot showing the full layout of your Disk Management (diskmgmt.msc) window first. This way we will be able to give you proper advice.
My System SpecsSystem Spec
30 Sep 2012   #3

windows 7 Ultimate 64bit



Actually , i hav not done yet.. coz I have to first make the recovery disk of the windows and drivers installed C & D resp. Now i dont hav disk drive..!!! So how to first create my back up for this ??

And after that i m thinkin to carry out the process to shrink the drives!!
Can u help.. thanks..
My System SpecsSystem Spec
.


30 Sep 2012   #4
Microsoft MVP

64-bit Windows 8.1 Enterprise



The link below from Lenevo can help show you how to create a set of factory recovery discs.

How do I recover my factory installed programs and files? - Desktops and Workstations

Quote:
Creating a Recovery Repair diskette
  1. Start your computer and operating system.
  2. Use Windows Explorer or My Computer to display the directory structure of your hard drive.
  3. Open the C:\IBMTOOLS folder.
  4. Double-click RRDISK.BAT and follow the instructions on the screen.
My System SpecsSystem Spec
30 Sep 2012   #5
Microsoft MVP



Please post back a screenshot of your maximized Disk Management drive map and listings:

1. Type Disk Management in Start Search box.
2. Open Disk Mgmt. window and maximize it.
3. Type Snipping Tool in Start Search box.
4. Open Snipping Tool, choose Rectangular Snip, draw a box around full map and all listings.
5, Save Snip, attach using paper clip in Reply Box.

Tell us what is on each partition and exactly what you want to do and we will tell you how to do it.

You do not want Dynamic drive so do not accept if it warns you it is about to convert to Dynamic Disk.
My System SpecsSystem Spec
30 Sep 2012   #6

win7



Lenovo laptops come with 4 primary partitions.
I think if you shrink one, you will find yourself suddenly forced into an extended partition the next time you do anything with partitions. Any change in partition tables will likely ruin the usability of the one touch restore to original button. Then you will need to locate and download a rather large engineering dvd just to repair that button and reload the OEM partition to restore its usability. It may look like its empty, but surely isnt. It contains your restore to original image and drivers.
My System SpecsSystem Spec
02 Oct 2012   #7

windows 7 Ultimate 64bit



Now i have made the recovery disk for my system, Now how should i create partitions on the C drive as it consist of 400 GB space the other D drive is only of 25 GB. ??
Thnks..

I m attaching my memory management file .. SO there u can see on right side that only available shrink volume to me is 210Gb . But i want that i should be able to partition the C drive wid C only 30 or 40 GB and other drives partioned with remaining space. ??
In short i want to keep my C drive having 30/40 Gb and more space for others.
Plz help.. thnks


Attached Files
File Type: docx Doc1.docx (138.9 KB, 76 views)
My System SpecsSystem Spec
02 Oct 2012   #8
Microsoft MVP

64-bit Windows 8.1 Enterprise



Quote   Quote: Originally Posted by vishUltra View Post
Now i have made the recovery disk for my system, Now how should i create partitions on the C drive as it consist of 400 GB space the other D drive is only of 25 GB. ??
Thnks..

I m attaching my memory management file .. SO there u can see on right side that only available shrink volume to me is 210Gb . But i want that i should be able to partition the C drive wid C only 30 or 40 GB and other drives partioned with remaining space. ??
In short i want to keep my C drive having 30/40 Gb and more space for others.
Plz help.. thnks

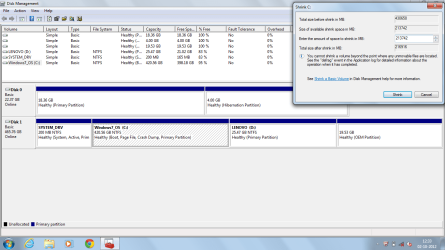

Here's the screenshot in the .docx file posted by the OP instead of having to download it.

How to create partition for win7 Home basic 64 bit??-disk-management.png


vishUltra,

You should be able to use OPTION TWO in the tutorial below to shrink C by what you want to create a logical partition with.

Partition / Extended : Logical Drives

Hope this helps,
Shawn


My System SpecsSystem Spec
02 Oct 2012   #9

windows 7 Ultimate 64bit



Thnks For help Shawn;

But, This means i will b using 3rd party app to partition my disk??
Is it safe?? To do so..?? and if any prob occurs , will the service center void my warranty coz i have used 3rd party app??
My System SpecsSystem Spec
02 Oct 2012   #10

windows 7 Ultimate 64bit



Gregrocker,
Actually i m new here so i uploaded doc file instead of screenshot..
Shawn did it for u above.. ..
Thnks..
My System SpecsSystem Spec
