Windows 7: Takes 2-4 times power on / off before booting (2 beeps) Mystery

25 Oct 2013   #21

x64 (6.1.7601) Win7_SP1 HomePrem



Fair enough, as long as the voltages and ma were the same it was most likely not an action that would cause damage.
Quote   Quote: Originally Posted by Mike14 View Post
I'm pretty sure the battery from my Dad's system is compatible, as it is the same model (Panasonic CR 2032 3V) and his PC was also a Dell. To be safe, I went and bought a brand new 2032 battery today.
Technically you haven't pulled all ram. You say except for 2 sticks and I will try that again systematically - so the deal is ALL ram, right!
[QUOTE=Mike14;2576017]I have experimented with pulling all ram (except for 2 sticks), but I will try that again systematically.
It's important that you follow only one path and provide detailed feedback. No one (except you) can tell what you did to "get it going".

etc, etc, etc provides little information about what the machine is reporting
What do F2 and F12 do?
Quote   Quote: Originally Posted by Mike14 View Post
However, I have a new problem. I got it going, and installed windows 7 again, but upon reboot, it now goes to a screen that says:

[Serial ATA AHCI BIOS, etc etc et]
then
Controller Bus#00, Device#1F, Funciton#02: 01 Ports, 01 Devices

and it's stuck on this black page (with the above text). I'm able to see the screen offering me F2 or F12 when I start the PC, but it always ends up on this screen.
The only time you should change the clock is when the system is operating normally.

Please take snapshots (camera or phone) of your BIOS settings and post them for someone to look through. I might not be available after tonight - I'm working out a new "ISP" plan.

Since I don't have any specific instructions and I can't gaurantee follow though, I'll bow out at this time.
Quote   Quote: Originally Posted by Mike14 View Post
I will note that at some point today before this, I had reset the bios settings to factory default, and did change the date later (to a newer time, when installing the new battery).
Any tips?
Tips? Yes - follow directions given and provide detailed feedback. No one can see what you see, don't make anyone ask twice or guess. If you're not sure, ask for clarification, but don't get off track.

So post the BIOS images and someone will see if they can help straighten things out. Which BIOS screens? Start with all top level screens - you might be asked to dig a little deeper.

My System SpecsSystem Spec
25 Oct 2013   #22

Windows 7 Ultimate x64



Slartybart,

Let me apologize for my vagueness. I know you are trying to help me, and the more random / fiddling I do, there's a good chance I'm complicating things further. I'm so desperate for this system to work, I have been logging too many hours and have not been able to always remain intelligent and objective.

Your clarity and support is very much appreciated, and I will try my best to seek help in a more effective manor going forward.

The current install is running, so hopefully things will be A OK.. Fingers crossed.

M14
My System SpecsSystem Spec
25 Oct 2013   #23

x64 (6.1.7601) Win7_SP1 HomePrem



Ok Mike,

Take your time - the more fiddling the less chance for success. If you need a break, take one.. sometimes we are in so much of a hurry that we miss something.

In the spirit of more effective manor.... what got you past the boot error?

-
My System SpecsSystem Spec
.


25 Oct 2013   #24

Windows 7 Ultimate x64



Patience is a virtue! Slow & methodical often does so much more than fast and energetic, but it's hard under pressure to remember that after 5 hours of troubleshooting.

So, getting around that boot error was a matter of

1. disconnecting the drives and ram.
2. turning on pc, then turning off pc
3. connecting ram, turning on pc, and having now access to bios.
4. changing hard drive setting to ata from achi

Then I was able to boot to my Windows 7 Usb.
I installed Windows 7 in the ata setting, then reinstalled the bios (went with newest version, which seemed same as old A08), then rebooted, changed ata to achi in bios, then rebooted and installed Windows 7 again.

All seemed OK.

However, as I write this, I've just rebooted the second system, and it's doing the same thing again

I'm now wondering if it's a video card issue, as soon before the problems started, I started using a program that decompresses video on the GPU rather than CPU, so it might have gotten it's first hard usage in years.

In any case, back to the drawing board, and thanks again.

M14
My System SpecsSystem Spec
25 Oct 2013   #25

Windows 7 Ultimate x64



Yeah, so after over 20 hours of trouble shooting and pulling my hair out, I have finally come to the conclusion that it is 99% the video card.

I don't know how / why I didn't test this earlier, but after my new install (with the old, simpler card), I went to put back in my Nvidia Quadro 3700, and it started doing the exact same thing.

Swapped back my consumer card, and it boots every time consistently.

So all that powering on / off, caused the hard drive trouble that made me reformat, but had I just originally tried the other video card, I would have avoided all those hours (most likely) and all the costs.

Not that I think about it, it really makes sense as a software I started using around the same time "does all the playback on the videocard's GPU it's faster than any other codec"..

My old card just probably couldn't keep up, and kicked the bucket. Anyway, again, 1000 thanks for all the support.

M14
My System SpecsSystem Spec
25 Oct 2013   #26

x64 (6.1.7601) Win7_SP1 HomePrem



Only 20 hours? I've spent weeks tracking down an issue

Good work figuring it out. Troubleshooting 101
back off most recent changes until the issue goes away

Now we know 2 beeps on a Dell is hardware

Bill
My System SpecsSystem Spec
25 Oct 2013   #27

Windows 7 Ultimate x64



Thanks so much! Weeks, YIKES!!

Now to track down a new video card
My System SpecsSystem Spec
25 Oct 2013   #28

Windows 7 Ultimate x64



Oh Maaaaaan. So this is the thread that never ends. I figured I'd try and match your 'weeks of troubleshooting' : )

So, all was going well. I specifically would shut down the machine, and restart to see if there were any hiccups. It would restart every time, flawlessly. I did this about 3 or 4 times.

After that, I did two things.

1. I plugged in an ethernet cable (to connect to start downloading drivers etc, although I didn't start installing).

2. I then went into the bios, and made usb later than the sata drive, so that I would not always boot into the windows install any time the usb was left plugged in on a reboot.

Low and behold, on the next reboot, I am cycling through problems again.

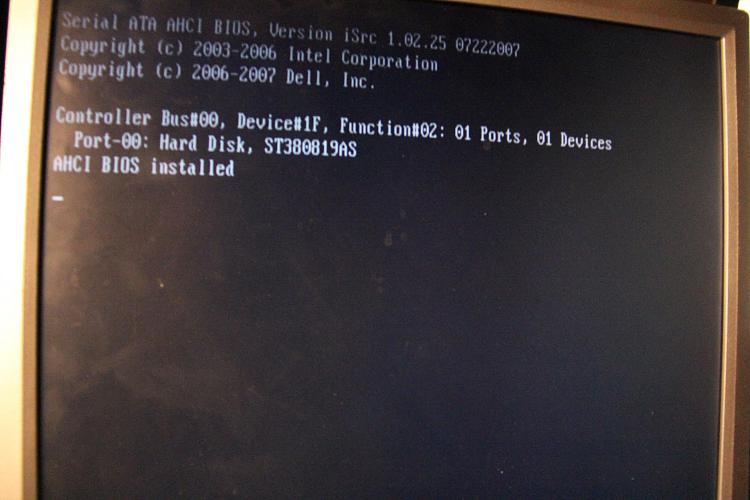

All I can get is a constant alternation between these two screens (see pictures attached).

Lol What's so strange to me is things work, then don't work. Work, then don't work.

I guess I will start trying your ram suggestion next, one at a time.

Any other thoughts of what might be causing this? There is no beeping now, so maybe that was the bad video card, but what is making it cycle like this is beyond me.

M14


Attached Thumbnails
Takes 2-4 times power on / off before booting (2 beeps) Mystery-img_0548.jpg   Takes 2-4 times power on / off before booting (2 beeps) Mystery-img_0549.jpg
My System SpecsSystem Spec
27 Oct 2013   #29

Windows 7 Ultimate x64



Gentlemen,

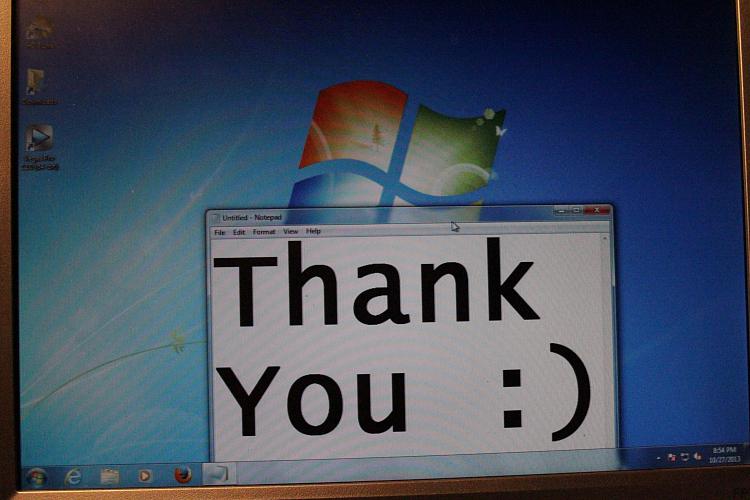

eventually got everything running, and it is indeed the video card.

A happy ending for me, as better the video card then the mother board.

Thanks again for all help.

M14


Attached Thumbnails
Takes 2-4 times power on / off before booting (2 beeps) Mystery-img_0934.jpg   Takes 2-4 times power on / off before booting (2 beeps) Mystery-img_0935.jpg
My System SpecsSystem Spec
27 Oct 2013   #30

x64 (6.1.7601) Win7_SP1 HomePrem



Hey Mike,

Great news. Now quit mucking around with things or you will break my record

That's a pretty powerful looking video card you have there.

Bill
My System SpecsSystem Spec
