Windows 7: How to Uninstall W7 When In A Multi-Boot

25 Nov 2008   #31
Bare Foot Kid
Microsoft MVP

W 7 64-bit Ultimate



Hello SIW2.

So this helps clear up what I've just done; as this is my disk management shot.
Just to confirm: Windows 7 is now ready to be removed with no problem; correct?
For those that don't know; this is the thread I started about this earlier.

Name:  DiscManagement_Boot.JPG
Views: 22
Size:  24.0 KB

Thanks!






Later Ted




My System SpecsSystem Spec
.
25 Nov 2008   #32
garysgold

Vista Ult 64 bit Seven Ult RTM x64



Sooo, seems that I should be fine with removing 7 from my second hdd as the Vista OS partition on disk 0 is the one marked active.


Why is my external drive also marked as active?

Gary


My System SpecsSystem Spec
25 Nov 2008   #33
SIW2

Microsoft Community Contributor Award Recipient

Vista x64 / 7 X64



Hi Gary,

There can be one Active partition per hard drive.

You may have seen this referred to as "Flagged On" if you have used Linux, or a Linux tool such as Gparted.

If you right click an inactive partition in Disk Management, you will get an option to "Mark partition as Active ". (Do not do this - the other partitions on that drive would then be inactive and you won't be able to boot.)

First you need to boot into Vista. Then remove the 7 boot files using Easy BCD.

Then, in Vista's Disk Management, right click on the 7 partition and format it. Or you could delete the 7 partition if you want to change the partition sizes on that drive.

Barefoot kid - looks the same procedure for you too.

Hope it helps

SIW2
My System SpecsSystem Spec
.

26 Nov 2008   #34
Bare Foot Kid
Microsoft MVP

W 7 64-bit Ultimate



Hello SIW2.

Thank you for the confirmation.















Later Ted
My System SpecsSystem Spec
26 Nov 2008   #35
garysgold

Vista Ult 64 bit Seven Ult RTM x64



I think I've got it. Thanks SIW2.

Gary
My System SpecsSystem Spec
26 Nov 2008   #36
smarteyeball




Quote   Quote: Originally Posted by frankzappa77 View Post
Or are you using GRUB for the bootloader?
Nope. W7 setup did it itself. I only created 3 partitions. I haven't re-installed Linux yet, so no GRUB. I must confess I wasn't really paying attention when I installed W7....



Quote   Quote: Originally Posted by SIW2 View Post
Hi,

MS speak is confusing to say the least.

You can say that again

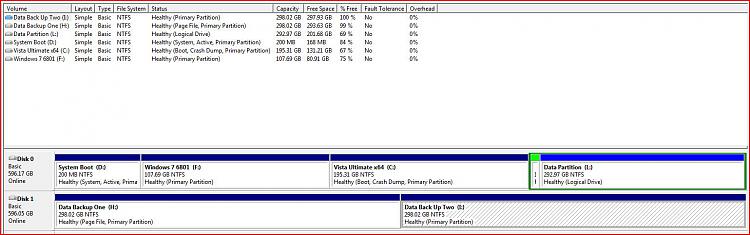

Vista CM:


Windows 7:




Bah. Attachments are still huge


Attached Thumbnails
-vistacm.jpg   -w7cm.jpg
My System SpecsSystem Spec
26 Nov 2008   #37
Mark

Windows 7 Ultimate Vista Ultimate x64



Can someone explain what's happening with mine.

B:\ Vista
c:\ Windows 7
f:\ external hard disk

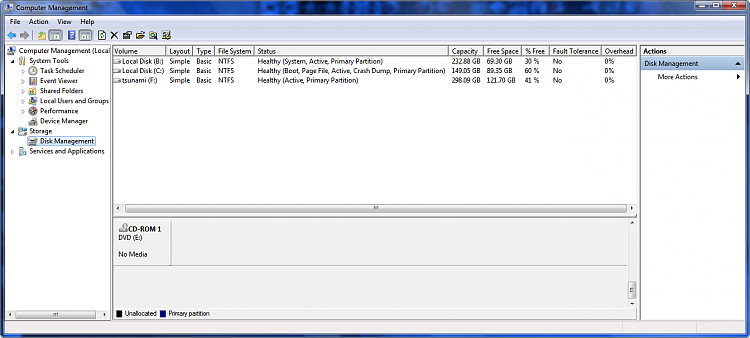

This is the view from within Windows 7


My System SpecsSystem Spec
26 Nov 2008   #38
SIW2

Microsoft Community Contributor Award Recipient

Vista x64 / 7 X64



Hi Mr Grim,

B ( in this view ) contains Vista boot files and Win7 boot files , it also contains Vista o/s.

C ( in this view ) contains Win7 o/s files.

Your external hd is marked as active as there is only one partition.

If you carve it into several partitions with Disk management , i.e shrinking from the right - you will find the partition on the left ( with lower address numbers on the hd ) will remain the Active partition by default.

Hope that helps

SIW2
My System SpecsSystem Spec
26 Nov 2008   #39
SIW2

Microsoft Community Contributor Award Recipient

Vista x64 / 7 X64



Hi Smarteyeball,

Thanks for posting the screenshot - it's interesting.

Quote:

I installed 7 first on a new HD and then Vista after 7. Your setup may be different:

7 created a small (200mb) partition at the beginning of the drive (containing all the boot data) and then installed itself on the next partition.

So my system looks like:

Hd0,0 (200mb boot data)
Hd0,1 (107GB Windows 7 6801)
Hd0,2 (195GB Vista x64)
Hd0,3 (290GB Data)

Both 7 and Vistas boot data reside on the 200MB partition. In my case, deleting that 200MB partition will wipe out Vista's boot as well.

Was that a new hd that you partitioned with Win7 during the installation ?

Everyone else seems to have installed after Vista and got the expected result , i.e. 7 installs it's boot files on the existing Active partition ( which for most people is the partition that already contains Vista's boot and o/s files ).

As you installed 7 first , it seems to have made it's own additional first partition.

Anybody else done the same thing, and got the same result?

It's a good thing as you can make an image of that 200mb partition to restore in an emergency. I have the Paragon Drive Backup, which lets you make a small bootable cd - so you can boot in , find the backup image and restore it - I assume Acronis etc are pretty much the same?

You could try using EasyBCD to remove the 7 boot files from the 200mb partition.

You might find that Vista doesn't know they've been removed and will still show 7 as a boot option. In that case it can be deleted from the boot tab in msconfig.

It will be fun to see how this pans out for us all

SIW2
My System SpecsSystem Spec
26 Nov 2008   #40
frankzappa77

Vista, XP, 7, Debian



Wait, so SIW2, what you're saying is (assume fresh install on a clean hard drive), if I had a 100GB HD and I (hd0,0) was a 200MB partition and the rest 99.8GB was (hd0,1), I can guide the 7 installer to install boot files to the 200MB partition?

Does that mean that when I get to the disk management page in the setup, that I select (hd0,0) as my installation partition? or will it automatically install the boot files to the first partition?

As for a backup of my boot record (not windows boot files), I use HD Hacker to create a raw image of my MBR just incase.

Also, just to clear something up with the 'active' partition thing. I recall when I installed OS X, I had to mark my 4th primary partition dedicated towards it as 'active' through the command line. I then decided to boot up GParted and check how the flags were re-associated, and my Vista partition was no longer the boot partition, (hd0,3) was. This insured that my MBR was not touched, and Darwin was installed to the bootsector of (hd0,3) - my question, does the same go for Windows?

Say I had GRUB on the MBR, can I tell Windows not to touch the MBR by flagging my second partition (or whichever partition I want to install it onto) as 'active'/boot?

Thanks for all the info so far everyone.
My System SpecsSystem Spec
