Windows 7: Dual Monitors - Swapped cables but screens stayed same

07 May 2011   #1
bobbyj

Windows 7 64 Premium


Dual Monitors - Swapped cables but screens stayed same

Hi,

I have Windows 7 setup with dual Samsung monitors. It works great, but when I booted it up, my left monitor was on the right site and the right was on the left.

No problem, so I just swapped cables, but the screens stayed the same.

How does Windows know that I changed monitors on connections and is there a way to clear this setting?

Thanks.


My System SpecsSystem Spec
.

07 May 2011   #2
Sardonicus

Windows 7 Home Premium 64 bit



The software......either Nvidia or AMD allows you to swap monitors.

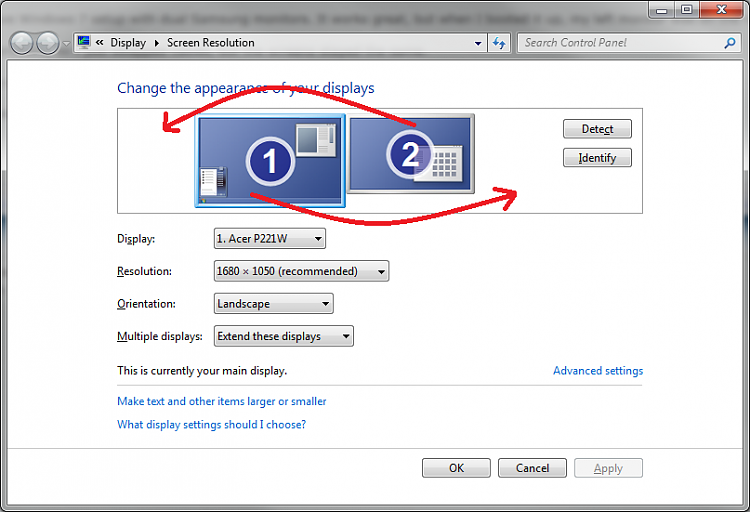

Also, you can do it from Appearance and Personalization, Adjust screen resolution.
My System SpecsSystem Spec
07 May 2011   #3
stormy13
Microsoft MVP

Win 7 Ultimate x64



Quote   Quote: Originally Posted by p5bdkw View Post
Also, you can do it from Appearance and Personalization, Adjust screen resolution.
Just drag and drop,



My System SpecsSystem Spec
.


10 May 2011   #4
bobbyj

Windows 7 64 Premium



Thanks. I know I can change the settings in Windows, but I need to know how Windows remembers the initial position of the monitors and keeps it that way even if the connections are swapped.

There has to be an INF setting somewhere where the EDID of the monitor is stored.

I want to be able to reset it.
My System SpecsSystem Spec
10 May 2011   #5
FredeGail

Microsoft Windows 7 Ultimate: x64 (SP1)



Hello bobbyj, welcome to Sevenforums.

Stupid question: Have you tried to tick 'Set to main display'.
- Or atleast something like that.
My System SpecsSystem Spec
10 May 2011   #6
bobbyj

Windows 7 64 Premium



Quote   Quote: Originally Posted by FredeGail View Post
Hello bobbyj, welcome to Sevenforums.

Stupid question: Have you tried to tick 'Set to main display'.
- Or atleast something like that.
Yes, I have tried that and it works.

I'm still trying to find out how and why Windows remembers the monitor position when it first powers up. The reason is I am using a dual headed DVI extender and it has the ability to request the EDID from the monitor.

I want to be able to "reset" the graphic card settings so it does not remember the initial monitor positions.
My System SpecsSystem Spec
10 May 2011   #7
gazz9496




uninstall the graphics drivers and reinstall them, that would be the easyist way to achieve what your after.

while editing a file can be done it's not something i would recommend as a good idea, as you may end up having to reinstall the drivers anyway.

the reason why windows remembers the position is pretty simple really, it logs things like resolution settings for cleartype/hue/saturation and so forth as these can be indepently adjusted for each monitor, as your task bar can be dragged around as well as widgets windows will always try to put things in the same place you left them.

if it didn't do that i'd get alot more phone calls from the more stupid side of society at work from screaming idiots crying over things being different every day.
My System SpecsSystem Spec
17 May 2011   #8
bobbyj

Windows 7 64 Premium



Thanks. I'll give that try. It makes sense now. I was hoping for something easier, but this should work.

Cheers,

Bobby
My System SpecsSystem Spec
