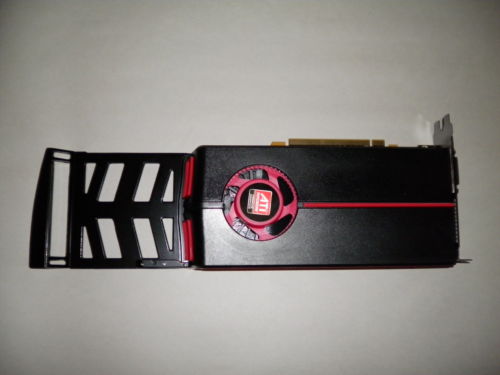

What did Dell do to this Radeon 6770?
- Thread starter Muad Dib
- Start date
badger906
I'm a badgerhollic!
does it attach to the other side of the case some how?
My Computer
- Computer type
- PC/Desktop
- Computer Manufacturer/Model Number
- Built by badgers!!!
- OS
- Windows 7 Ultimate x64, & Mac OS X 10.9.2
- CPU
- Intel Core i5 2500k
- Motherboard
- Asus P8z68 LE
- Memory
- Corsair Vengence 8gb 1866mhz
- Graphics Card(s)
- Nvidia GTX 770 OC
- Monitor(s) Displays
- 2x ASUS LED 22" IPS
- Screen Resolution
- 3840x1080
- Hard Drives
- 240GB Crucial M500 SSD
120gb Corsair Force 3 SSD
1TB Western Digital
- PSU
- Corsair HX650w Modular
- Case
- Corsair Air 540
- Cooling
- Corsair H60 Push/Pull
- Keyboard
- Corsair K70/ Logitech G27 wheel
- Mouse
- Saitek R.A.T 9
- Internet Speed
- Too slow!
- Other Info
- AMD fusion E350N Home server-Windows Home Server 2011 (also made by badgers!)
2011 Macbook 2.4ghz Core2Duo, 4gb ddr3, 120gb Ocz Vertex SSD
mrdemon
New member
Most of the Big cards get shipped out like this in CARTONS so they can be picket up, I spose there just too damn lazy too take it off.
My Very old NVidia 8800GTX had one. LOL at your though.
My Very old NVidia 8800GTX had one. LOL at your though.
My Computer
- Computer Manufacturer/Model Number
- Home Build.
- OS
- Windows 7 Home Pre
- CPU
- Q8200 Intell 2.333
- Motherboard
- Asus P5Q3 Delux
- Memory
- DDR3 1333 4gig
- Graphics Card(s)
- Ati HD4870
- Sound Card
- Onboard Soundmax. 7.1
- Monitor(s) Displays
- 1, 20" Samsung
- Screen Resolution
- 1600/900
- PSU
- Good enough
- Case
- Le Shark
- Cooling
- FAN FAN FAN FAN, Thermaltake Minitype 90 with speed fan 4.
- Keyboard
- Standard, Gaming Wolfking
- Mouse
- Cm-storm-inferno-wired-gaming-mouse
- Internet Speed
- Sky Crappy upto 20meg I get a whapping 5.8mbs.
stormy13
OutTooLunch
Extra hard drive bay.
My Computer
- Computer type
- PC/Desktop
- Computer Manufacturer/Model Number
- Me
- OS
- Win 7 Ultimate x64
- CPU
- FX-8350 @ 4.6 GHz so far
- Motherboard
- Asus M5A97 EVO
- Memory
- ADATA XPG V1 Series Black 8GB DDR3 1600
- Graphics Card(s)
- Sapphire R9 270x Dual-X
- Sound Card
- Xonar DGX w/ Corsair Vengence 1300
- Monitor(s) Displays
- Acer S232HL Abid
- Screen Resolution
- 1920x1080
- Hard Drives
- 120 GB OCZ Vertex 3
500 GB Seagate 7200.12
- PSU
- Antec Earthwatts 650W Green
- Case
- Antec Three Hundred
- Cooling
- Cooler Master 212 EVO
- Keyboard
- Logitech G510
- Mouse
- Logitech G500s
- Internet Speed
- 35000/3000
Muad Dib
New member
Good answers all!
I have found out that the XPS 8300 I7 2600 system that the Radeon 6700 is an option in (among other Dell systems I assume) has an optional bracket that is supposed to secure the end of the video card in the front of the case. The bracket is depicted in the 8300 Service Manual (as an option)
There was no bracket listed in the detail parts list in the Order Confirmation from Dell for the 8300 I ordered (refurb from Dell Outlet).
So I guess that Dell decided to do away with the optional bracket but still installs its OEM Radeon 6770 cards that have the extension (?).
It is somewhat odd looking in that the extension, while securely mounted to the video cards PCB, simply hangs suspended in the case touching nothing and doing nothing.
I have found out that the XPS 8300 I7 2600 system that the Radeon 6700 is an option in (among other Dell systems I assume) has an optional bracket that is supposed to secure the end of the video card in the front of the case. The bracket is depicted in the 8300 Service Manual (as an option)
There was no bracket listed in the detail parts list in the Order Confirmation from Dell for the 8300 I ordered (refurb from Dell Outlet).
So I guess that Dell decided to do away with the optional bracket but still installs its OEM Radeon 6770 cards that have the extension (?).
It is somewhat odd looking in that the extension, while securely mounted to the video cards PCB, simply hangs suspended in the case touching nothing and doing nothing.
My Computer
- OS
- XP Pro & Vista Home Premium (x86); Windows Ultimate 7600 x64 Retail
Muad Dib
New member
I am going to look at it again to see if it can be removed without jeopardizing the integrity of the card itself.
I would like to get rid of it since, if it really does not serve any purpose, it adds weight to the card and interferes with the ONLY space in the 8300 case where a second case fan (80 or 92mm) MIGHT be able to be mounted as an intake.
My Computer
- OS
- XP Pro & Vista Home Premium (x86); Windows Ultimate 7600 x64 Retail
Muad Dib
New member
Well, it is useful and needed after all.
After some time on the phone Dell is shipping me 2 graphics card brackets to ensure I get the right one. The extension in the picture in combination with the (missing) bracket secures the back end of the card to the case.
After some time on the phone Dell is shipping me 2 graphics card brackets to ensure I get the right one. The extension in the picture in combination with the (missing) bracket secures the back end of the card to the case.
My Computer
- OS
- XP Pro & Vista Home Premium (x86); Windows Ultimate 7600 x64 Retail
stormy13
OutTooLunch
Only as far as Dell is concerned. You won't find that bracket on any other 6770 (or even on any cards that are longer) made by any of the AMD partners.
My Computer
- Computer type
- PC/Desktop
- Computer Manufacturer/Model Number
- Me
- OS
- Win 7 Ultimate x64
- CPU
- FX-8350 @ 4.6 GHz so far
- Motherboard
- Asus M5A97 EVO
- Memory
- ADATA XPG V1 Series Black 8GB DDR3 1600
- Graphics Card(s)
- Sapphire R9 270x Dual-X
- Sound Card
- Xonar DGX w/ Corsair Vengence 1300
- Monitor(s) Displays
- Acer S232HL Abid
- Screen Resolution
- 1920x1080
- Hard Drives
- 120 GB OCZ Vertex 3
500 GB Seagate 7200.12
- PSU
- Antec Earthwatts 650W Green
- Case
- Antec Three Hundred
- Cooling
- Cooler Master 212 EVO
- Keyboard
- Logitech G510
- Mouse
- Logitech G500s
- Internet Speed
- 35000/3000
Zepher
New member
It was made that way specifically for shipping it installed in a PC.
My Computer
- Computer Manufacturer/Model Number
- HAL-9000
- OS
- Windows 7 Ultimate 64bit
- CPU
- Intel i7 3770K
- Motherboard
- Asus Sabertooth Z77
- Memory
- 16GB DDR3 1333 Corsair XMS3
- Graphics Card(s)
- XFX HD6950 2GB EyeFinity
- Sound Card
- Logitech G35 & Sennheiser PC135 & VIA HD
- Monitor(s) Displays
- 23" HP 2310e, 23" Samsung B2230, 21.5" Viewsonic
- Screen Resolution
- 5760x1080
- Hard Drives
- 16TB of Storage
128GB & 256GB Crucial M4 SSD's, 2X 1TB WD Black, 3x 2TB WD, 3x 2TB Samsung F4, 1.5TB Seagate, WD 500GB,
- PSU
- Antec True Power New 650watt
- Case
- Cooler Master HAF-932
- Cooling
- Corsair H60 Hydro Cooler, 3x 230mm Fans, 2x120mm Fan
- Keyboard
- Logitech G15 and G13
- Mouse
- Logitech G700 Gaming Mouse
- Internet Speed
- 50/10 Mbit
- Other Info
- Speakers : Alesis M1 Active Mk2 Studio Monitors , APC RS 1200 UPS, HP 4500DN Color Laser, HP P1006 mono Laser, Kodak 8500 Dye-Sub, Epson 1280 inkjet, Epson Worforce 610 MFC
stormy13
OutTooLunch
Makes sense I guess. Then again I have seen some weird things inside Dell computers.
My Computer
- Computer type
- PC/Desktop
- Computer Manufacturer/Model Number
- Me
- OS
- Win 7 Ultimate x64
- CPU
- FX-8350 @ 4.6 GHz so far
- Motherboard
- Asus M5A97 EVO
- Memory
- ADATA XPG V1 Series Black 8GB DDR3 1600
- Graphics Card(s)
- Sapphire R9 270x Dual-X
- Sound Card
- Xonar DGX w/ Corsair Vengence 1300
- Monitor(s) Displays
- Acer S232HL Abid
- Screen Resolution
- 1920x1080
- Hard Drives
- 120 GB OCZ Vertex 3
500 GB Seagate 7200.12
- PSU
- Antec Earthwatts 650W Green
- Case
- Antec Three Hundred
- Cooling
- Cooler Master 212 EVO
- Keyboard
- Logitech G510
- Mouse
- Logitech G500s
- Internet Speed
- 35000/3000
Muad Dib
New member
I would not have bothered if it was my PC. But the system is for someone so I wanted it "like new" so there could be no complaints.
I have never seen anything like it on any retail cards either.
Now when I worked in process control programing Bailey Control Systems (military class electronics, etc.) we had a "hardened" PC in which the PCI expansion cards were secured in a cage with a screwed on bracket running across the top of all of the cards to prevent vibration/shock issues. That was just one of design considerations in that case design..... but that was another life....
I have never seen anything like it on any retail cards either.
Now when I worked in process control programing Bailey Control Systems (military class electronics, etc.) we had a "hardened" PC in which the PCI expansion cards were secured in a cage with a screwed on bracket running across the top of all of the cards to prevent vibration/shock issues. That was just one of design considerations in that case design..... but that was another life....
My Computer
- OS
- XP Pro & Vista Home Premium (x86); Windows Ultimate 7600 x64 Retail
Zepher
New member
Here is an older card I had, it was quite long already and only has a short bracket that slips into the expansion card retainer that large cases had.
My Computer
- Computer Manufacturer/Model Number
- HAL-9000
- OS
- Windows 7 Ultimate 64bit
- CPU
- Intel i7 3770K
- Motherboard
- Asus Sabertooth Z77
- Memory
- 16GB DDR3 1333 Corsair XMS3
- Graphics Card(s)
- XFX HD6950 2GB EyeFinity
- Sound Card
- Logitech G35 & Sennheiser PC135 & VIA HD
- Monitor(s) Displays
- 23" HP 2310e, 23" Samsung B2230, 21.5" Viewsonic
- Screen Resolution
- 5760x1080
- Hard Drives
- 16TB of Storage
128GB & 256GB Crucial M4 SSD's, 2X 1TB WD Black, 3x 2TB WD, 3x 2TB Samsung F4, 1.5TB Seagate, WD 500GB,
- PSU
- Antec True Power New 650watt
- Case
- Cooler Master HAF-932
- Cooling
- Corsair H60 Hydro Cooler, 3x 230mm Fans, 2x120mm Fan
- Keyboard
- Logitech G15 and G13
- Mouse
- Logitech G700 Gaming Mouse
- Internet Speed
- 50/10 Mbit
- Other Info
- Speakers : Alesis M1 Active Mk2 Studio Monitors , APC RS 1200 UPS, HP 4500DN Color Laser, HP P1006 mono Laser, Kodak 8500 Dye-Sub, Epson 1280 inkjet, Epson Worforce 610 MFC
Had to re-read the entire thread. Saw these statements and thought you were talking about my boss.
My Computer
- Computer type
- Laptop
- Computer Manufacturer/Model Number
- Sony Vaio VPCEB47GM Laptop
- OS
- Win 7 Pro 64-bit
- CPU
- Intel i5 2.4 Ghz
- Memory
- 8GB DDR3
- Graphics Card(s)
- Intel HD 3000
- Sound Card
- IDT High Definition
- Monitor(s) Displays
- 15.6 WGXA Anti-Glare LED
- Screen Resolution
- 1280x800
- Hard Drives
- 640Gb 7200rpm
- Antivirus
- MSE
- Browser
- Opera (primary) with IE9 backup
Zepher
New member
Zepher, that is the longest AGP card I have seen without the extension.
Marsmimar, that is either the worst Boss ever or the best Boss ever depending on how you manage him!
Ya, that was a dual GPU card used for 3D work.
My Computer
- Computer Manufacturer/Model Number
- HAL-9000
- OS
- Windows 7 Ultimate 64bit
- CPU
- Intel i7 3770K
- Motherboard
- Asus Sabertooth Z77
- Memory
- 16GB DDR3 1333 Corsair XMS3
- Graphics Card(s)
- XFX HD6950 2GB EyeFinity
- Sound Card
- Logitech G35 & Sennheiser PC135 & VIA HD
- Monitor(s) Displays
- 23" HP 2310e, 23" Samsung B2230, 21.5" Viewsonic
- Screen Resolution
- 5760x1080
- Hard Drives
- 16TB of Storage
128GB & 256GB Crucial M4 SSD's, 2X 1TB WD Black, 3x 2TB WD, 3x 2TB Samsung F4, 1.5TB Seagate, WD 500GB,
- PSU
- Antec True Power New 650watt
- Case
- Cooler Master HAF-932
- Cooling
- Corsair H60 Hydro Cooler, 3x 230mm Fans, 2x120mm Fan
- Keyboard
- Logitech G15 and G13
- Mouse
- Logitech G700 Gaming Mouse
- Internet Speed
- 50/10 Mbit
- Other Info
- Speakers : Alesis M1 Active Mk2 Studio Monitors , APC RS 1200 UPS, HP 4500DN Color Laser, HP P1006 mono Laser, Kodak 8500 Dye-Sub, Epson 1280 inkjet, Epson Worforce 610 MFC
