Windows 7: Graphics Card to HDTV via HDMI Cable Even Possible?

20 Feb 2012   #1

Windows 7 [64-Bit]


Graphics Card to HDTV via HDMI Cable Even Possible?

I am trying to hook up my Radeon 5870 HD to my 1080p HDTV via HDMI cable and not only is the image onscreen slightly blurred, but there is also a black border that is approximately 1" around the entire display. Pardon me if I'm missing something but why even have a card with the option to hook up a HDTV via HDMI if it cannot properly display a picture?

Any help would be appreciated. Thanks.

Emitted from my Droid Bionic via Tapatalk

My System SpecsSystem Spec
.

20 Feb 2012   #2

Windows 7 Ultimate 64bit SP1



Hi.

First ensure that you have installed the most recent software\driver for your Radeon 5870 HD.

http://support.amd.com/us/gpudownload/Pages/index.aspx

Then,

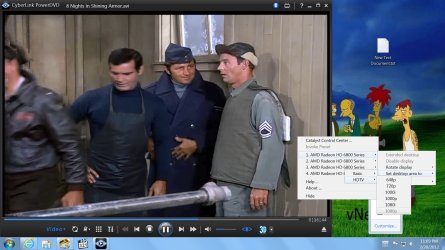

Right click on desktop,click\run Catalyst Control Center,on the right side click preferences and select Advanced view.

Now in the left side list select Desktop Management\Desktop Properties,on the Desktop area list click HDTV\1080p Aplly.

Now click on My Digital Flat Panels\Scaling options (Digital-Flat-Panel) and adjust the screen to eliminate the black border.


Attached Thumbnails
Graphics Card to HDTV via HDMI Cable Even Possible?-panais-1.png   Graphics Card to HDTV via HDMI Cable Even Possible?-panais-2.png
My System SpecsSystem Spec
20 Feb 2012   #3

Windows 7 Home Premium 64bit SP2



Have you set the output resolution to your HDTVs native resolution? It should be in your AMD Catalyst controls IIRC. My Nvidia card did this also. I had to set it to my HDTV's native resolution. This is most likely causing your issues.

My resolution is 1360*768 on my LG 720p 37". It doesn't default to it automatically.
My System SpecsSystem Spec
.


20 Feb 2012   #4

Windows 7 [64-Bit]



Quote   Quote: Originally Posted by panais View Post
Hi.

First ensure that you have installed the most recent software\driver for your Radeon 5870 HD.

AMD Graphics Drivers & Software

Then,

Right click on desktop,click\run Catalyst Control Center,on the right side click preferences and select Advanced view.

Now in the left side list select Desktop Management\Desktop Properties,on the Desktop area list click HDTV\1080p Aplly.

Now click on My Digital Flat Panels\Scaling options (Digital-Flat-Panel) and adjust the screen to eliminate the black border.
Thank you anyhow but this didn't work very well. I was able to manually adjust the scale but the scale still didn't line up with the corners of my HDTV the way that it should, plus the picture is still blurry and looks horrible in my opinion.
My System SpecsSystem Spec
20 Feb 2012   #5

Windows 7 [64-Bit]



Quote   Quote: Originally Posted by raven2510 View Post
Have you set the output resolution to your HDTVs native resolution? It should be in your AMD Catalyst controls IIRC. My Nvidia card did this also. I had to set it to my HDTV's native resolution. This is most likely causing your issues.

My resolution is 1360*768 on my LG 720p 37". It doesn't default to it automatically.
Thank you for your suggestion and I would love to try this but I have no idea how to go about doing so.
My System SpecsSystem Spec
20 Feb 2012   #6

Operating System : Windows 7 Home Premium Edition 6.01.7600 SP1 (x64)



hi i no panais covered this in his post but this is from ccc help hope it helps

Adjusting Image Size and Position for Digital Flat-Panels (Digital TVs)

To adjust black borders surrounding your display area, use the Underscan/Overscan slider to adjust your image so that the borders are no longer visible.

Navigate to one of the following pages:
Standard View—Desktops and Displays > My Digital Flat-Panels > Scaling Options (Digital Flat-Panel).
Advanced View—My Digital Flat-Panels > Scaling Options (Digital Flat-Panel).
If more than one digital flat-panel is available for your computer, use the display selection menu at the top of the page to select the display that you want to configure.
Click and drag the Underscan/Overscan slider to adjust the overall size of the image on the display.
Note: The slider is not available for display configured to use a custom or the default optimized timing mode.
To ensure that forcing a custom HDTV mode does not create conflicting resolutions, select Use the scaling values instead of the customized settings when the desktop resolution does not match your DTV resolution. For more information on creating and applying custom HDTV modes, see HDTV Support.
My System SpecsSystem Spec
20 Feb 2012   #7

Windows 7 Ultimate x64, & Mac OS X 10.9.2



I had the exact same problem with my new ASUS monitor. Connecting it via HDMI to my 6950, would never go full screen unless i did what Pansis suggested, but patches were still blurred and looked funny, while others were fine.

i then connected it via DVI and it was fine. I later did some research and found out theres some know issues with AMD cards and HDMI, with lots of unsolved issues.

Try a DVI to HDMI cable, may give better results.
My System SpecsSystem Spec
20 Feb 2012   #8

Windows 7 [64-Bit]



Quote   Quote: Originally Posted by badger906 View Post
I had the exact same problem with my new ASUS monitor. Connecting it via HDMI to my 6950, would never go full screen unless i did what Pansis suggested, but patches were still blurred and looked funny, while others were fine.

i then connected it via DVI and it was fine. I later did some research and found out theres some know issues with AMD cards and HDMI, with lots of unsolved issues.

Try a DVI to HDMI cable, may give better results.
Wow, thanks for that bit of info. The fact that this has been a problem with AMD for quite some time really makes me want to lean toward Nvidia when I upgrade again. I will just try to hook it up a different way. Thanks again.
My System SpecsSystem Spec
20 Feb 2012   #9

Windows 7 Home Premium 64bit SP2



Quote   Quote: Originally Posted by BeKure View Post
Quote   Quote: Originally Posted by raven2510 View Post
Have you set the output resolution to your HDTVs native resolution? It should be in your AMD Catalyst controls IIRC. My Nvidia card did this also. I had to set it to my HDTV's native resolution. This is most likely causing your issues.

My resolution is 1360*768 on my LG 720p 37". It doesn't default to it automatically.
Thank you for your suggestion and I would love to try this but I have no idea how to go about doing so.
Don't manually adjust. If its an HDTV, on HDMI, it will tell the AMD control center what its native resolution is.

On the desktop, right click, then select "AMD Catalyst control center.

Find the resolution/display tab, one of the outputs should say Native next to one of the resolutions.
My System SpecsSystem Spec
20 Feb 2012   #10

Windows 7 [64-Bit]



Tried DVI to VGA and the display looks great. I'm still bummed that the HDMI cable didn't display the way that it should. I like the fact that HDMI supports both video and audio and it sucks that it isn't working correctly with AMD cards.


Emitted from my Droid Bionic via Tapatalk
My System SpecsSystem Spec
