Windows 7: Dell Dimension 8200 Memory Problem


07 Jan 2011   #1

Windows 7 Pro x64 Bit


Dell Dimension 8200 Memory Problem

Dell Dimension 8200 Memory Problem
Today I just received my new processor for my Dell Dimension 8200. I upgraded from a 2.0 GHz, 400 bus, 256 L2 processor to a 3.06 GHz, 533 bus, 512 L2 with Hyper-Threading. The new processor runs at 2.3 GHz since I do not have the Dell Dimension 8200 with the 533 bus. I knew this before updating the computer. However after running the Windows Experience Scoring I went from a 4.2 score in memory to a 3.3 score. The processor went from a 2.6 score. The following is the build on this computer. 1024MB (4x256 ) Samsung PC400 45NS RDRAM running as duel channel. Any Ideas?


On PCI Raid CardOn PCI Raid CardOn PCI Raid Card3.2

Determined by lowest subscore
Memory (RAM)
1.00 GB
3.3
Graphics
ATI Radeon 9550 / X1050 Series
4.2
Gaming graphics
287 MB Total available graphics memory
3.8
Primary hard disk
100GB Free (120GB Total)
5.4
Windows 7 Professional


Manufacturer
Dell Computer Corporation

Model
Dimension 8200

Total amount of system memory
1.00 GB RAM

System type
32-bit operating system

Number of processor cores
1

64-bit capable
No


Storage


Total size of hard disk(s)
382 GB

Disk partition (C
101 GB Free (120 GB Total) On PCI Raid Card

Disk partition (D
110 GB Free (149 GB Total) On PCI Raid Card (Raid 0)

Disk partition (E
53 GB Free (112 GB Total) On PCI Raid Card

Media drive (F
CD/DVD On PCI Raid Card

Media drive (G
CD/DVD


Graphics


Display adapter type
ATI Radeon 9550 / X1050 Series

Total available graphics memory
287 MB

Dedicated graphics memory
256 MB

Dedicated system memory
0 MB

Shared system memory
31 MB

Display adapter driver version
8.593.100.0

Primary monitor resolution
1280x720

DirectX version
DirectX 9.0 or better


Network


Network Adapter
Bluetooth Device (Personal Area Network)

Network Adapter
Linksys WUSB600N Wireless-N USB Network Adapter with Dual-Band ver. 2

My System SpecsSystem Spec
.

08 Jan 2011   #2

Windows 7 ultimate 64 bit / XP Home sp3



Welcome to Seven Forums

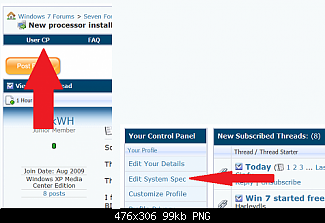

First off could I get you to enter your system information hereName:  usercp%201.png
Views: 228
Size:  65.0 KB

So all members have to do is clcik on My system specs in the lower left hand corner of any of your posts insted of having to go to this post.

Next coudl you download cpu-z and post a snip of what speed your memory is running at?
cpu-z CPUID - System & hardware benchmark, monitoring, reporting
Thanks. Fabe


My System SpecsSystem Spec
08 Jan 2011   #3

Windows 7 Ultimate SP1 x64



Also the easiest thing to do is to reseat the Memory DIMMS and then run Memtest86+ for at least 8 passes.
Memtest86+ - Advanced Memory Diagnostic Tool
My System SpecsSystem Spec
.


08 Jan 2011   #4

Windows 7 Pro x64 Bit


Info on system

Passes memtest after running 5 hours.

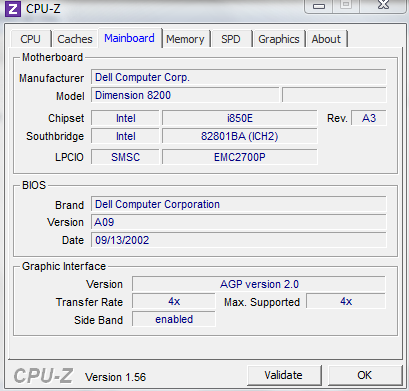

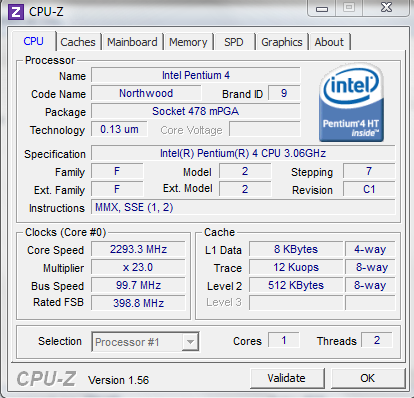

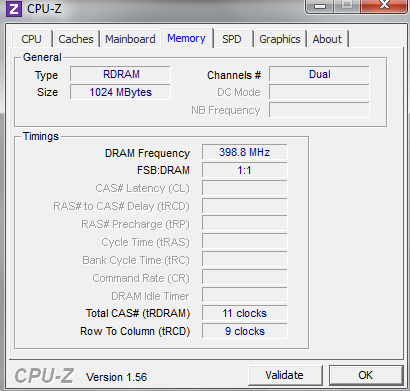

I have included the requested screen shots as attachments. Also the full report from cpu-z.


Attached Images

Attached Files
File Type: txt DELL-DESKTOP.txt (40.1 KB, 10 views)
My System SpecsSystem Spec
08 Jan 2011   #5

Windows 7 Pro X64 SP1



I don't know what to expect when combining a 533 MHz CPU with an Intel 850 (not 850E) chipset. That must be an unsupported processor.

You might have done better with one of the faster 400 MHz CPUs. Dell lists a 2.4GHz chip. There may be faster ones (2.6 GHz).

I hope that you're not sinking much cash into this system. A quick check on eBay suggests that the more desirable 850E version may be good for less than $100US.
My System SpecsSystem Spec
08 Jan 2011   #6

Windows 7 Pro x64 Bit



I take computer that do not wok or people do not want take 4-5 of them put them into one computer and then I have a fast computer. The cpu was the ony thing I paid for which was $22.50 with shiping. I wanted hyyper-treading which does work on this computer. Also this cpu is supported for this computer (This is the newest one that will work).
My System SpecsSystem Spec
08 Jan 2011   #7

Win7 Enterprise, Win7 x86 (Ult 7600), Win7 x64 Ult 7600, TechNet RTM on AMD x64 (2.8Ghz)

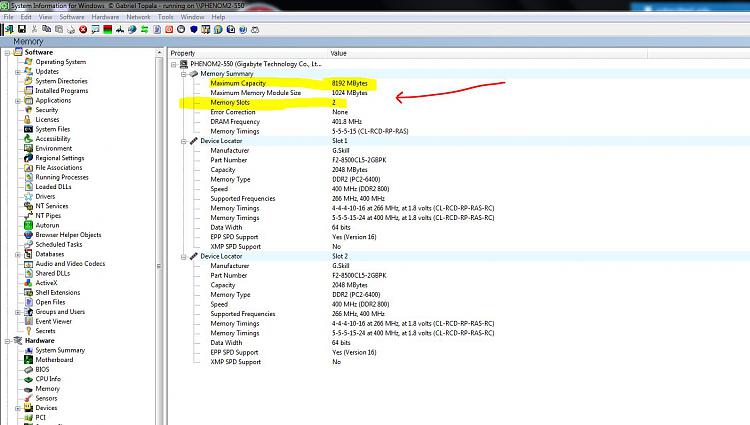

You might want to see how much maximum ram memory you can install in this MB ?

Dell Dimension 8200 Memory Problem-siw_max_memory_on_mb.jpg




SIW | System Information for Windows by Gabriel Topala


My System SpecsSystem Spec
08 Jan 2011   #8

Windows 7 Pro x64 Bit



2 gigs is the max. I only have 1 gig (4x256). Thats not the proble, the problem is after I installed the new cpu my memory score droped from 4.2 to 3.3 and I don't know why.
My System SpecsSystem Spec
08 Jan 2011   #9

Windows 7 Pro X64 SP1



Quote   Quote: Originally Posted by Here To Help View Post
I take computer that do not wok or people do not want take 4-5 of them put them into one computer and then I have a fast computer. The cpu was the ony thing I paid for which was $22.50 with shiping. I wanted hyyper-treading which does work on this computer. Also this cpu is supported for this computer (This is the newest one that will work).
By "supported", I mean one that Dell (or even Intel) officially supports for the 850 (not 850E) chipset. Does that apply to the 3.06GHz chip? Does the 850 also support hyperthreading? (Do you see two logical processors in Windows?)

This is only a guess: perhaps you're having a problem with the memory multiplier. The ratio of the RAM performance is roughly the same as the ratio of the FSBs.

A quick look at the manual for the 8200 doesn't show any ability to adjust the FSB or memory multiplier. What you see may be as good as it gets.
My System SpecsSystem Spec
08 Jan 2011   #10

Windows 7 Ultimate SP1 x64



Quote   Quote: Originally Posted by bobkn View Post
Quote   Quote: Originally Posted by Here To Help View Post
I take computer that do not wok or people do not want take 4-5 of them put them into one computer and then I have a fast computer. The cpu was the ony thing I paid for which was $22.50 with shiping. I wanted hyyper-treading which does work on this computer. Also this cpu is supported for this computer (This is the newest one that will work).
By "supported", I mean one that Dell (or even Intel) officially supports for the 850 (not 850E) chipset. Does that apply to the 3.06GHz chip? Does the 850 also support hyperthreading? (Do you see two logical processors in Windows?)

This is only a guess: perhaps you're having a problem with the memory multiplier. The ratio of the RAM performance is roughly the same as the ratio of the FSBs.

A quick look at the manual for the 8200 doesn't show any ability to adjust the FSB or memory multiplier. What you see may be as good as it gets.
That is not entierly true! The OP can use Memset:
Tweakers.fr
this would alowhim to set timimgs in windows 7 through software suport.

Also could you post snipets of the SPD tabin CPUID. that would be a total of 4 snipets for each DIMM(RAM module) I have the feeling that your RAM timimg are mismatched.
My System SpecsSystem Spec
