Windows 7: Show us your SSD performance 2

17 Feb 2013   #1061
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1



Yes, it's like racing, your speed depends on how much money you throw at the machine.


My System SpecsSystem Spec
.
17 Feb 2013   #1062
mitchfultz

Windows 7 Ultimate x64



Are these numbers good/bad? I don't know what they should be. My drive is the Kingston HyperX 3K 240gb.


Attached Images
Show us your SSD performance 2-ssd-bench-ata-kingston-sh1-2.17.2013-10-37-36-pm.png
My System SpecsSystem Spec
18 Feb 2013   #1063
theveterans

Windows 7 Professional x64 SP1



Great numbers. Since AS SSD uses incompressible data, you get much lower write speed. You can try ATTO disk benchmark which uses compressible data so it maximizes your SSD's controller throughput.
My System SpecsSystem Spec
.

18 Feb 2013   #1064
mitchfultz

Windows 7 Ultimate x64



Cool deal, thanks!
My System SpecsSystem Spec
18 Feb 2013   #1065
Dave76

Microsoft Community Contributor Award Recipient

Windows 7 Ult x64 - SP1/ Windows 8 Pro x64



Some SSD controllers use data compression, mainly Sandforce controllers, this speeds up most of the standard usage scenarios. Un-compressible data like videos, music, and a few others, will slow down in comparison to non compression controllers.
AS SSD and ATTO don't have any affect on controllers, they just report the speed from running a set program.
On Sandforce controller SSDs you will get faster write speed when benchmarking with compressible data, ATTO, then you will get with AS SSD, which uses un-compressable data.

Use ATTO on a Sandforce SSD, it will give you a better representation of normal daily use, unless you are going to be using a lot of un-compressible data.

The sequential speeds are not that important to the average user, these are promoted by the brand companies to show big numbers. This will only help when installing an OS or if you copy/move very large files multiple times a day on the SSD. Since most people store large files on HDD storage it doesn't help much.
If you want to see if your SSD is running as it should be, you need to compare with the same SSDs tested running the same benchmark.

The most important benchmarks are 4k transfer speeds and the acquisition time. These are what is used most by an OS on a daily basis.
My System SpecsSystem Spec
19 Feb 2013   #1066
mjf

Windows 7x64 Home Premium SP1



Quote   Quote: Originally Posted by Dave76 View Post
The sequential speeds are not that important to the average user, these are promoted by the brand companies to show big numbers. This will only help when installing an OS or if you copy/move very large files multiple times a day on the SSD. Since most people store large files on HDD storage it doesn't help much.
If you want to see if your SSD is running as it should be, you need to compare with the same SSDs tested running the same benchmark.

The most important benchmarks are 4k transfer speeds and the acquisition time. These are what is used most by an OS on a daily basis.
In support of this I recently put a Samsung 840 Pro into an older Intel Q8300 PC with Sata 2. The Samsung cost $140 and with a 5 year warranty it may end up somewhere else eventually. Even though the sequential speeds were limited by the Sata 2 512k, and in particular 4k/access times were great. It's like a new PC!
My System SpecsSystem Spec
23 Feb 2013   #1067
Bungee18

Windows 7 Ultimate x64 SP1

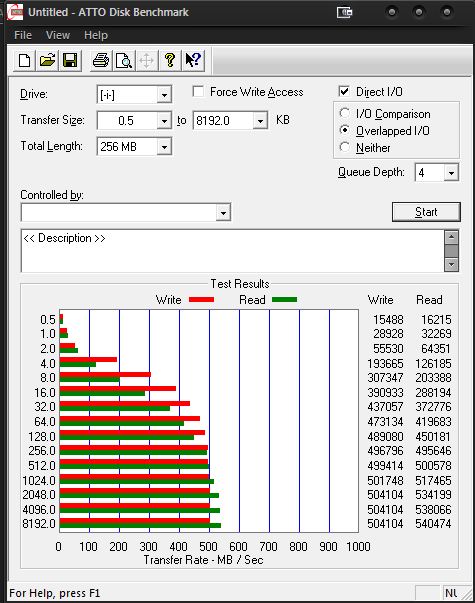

Here's my latest upgrade.
It's a Corsair Force Series 180GB. Got it for around 60% of what a 120GB 840 Pro goes for.
I know what most of you think about SandForce SSD's, but for games and some apps, it is a no brainer, at least till the 840 Pro pricing becomes a lot more competitive.


Attached Images
Show us your SSD performance 2-capture.jpg
My System SpecsSystem Spec
23 Feb 2013   #1068
essenbe

Windows 7 Enterprise X64/Windows 10 Enterprise X64/Windows 10 Pro X64/Linux Mint



Nice, Juan. You'll enjoy that.
My System SpecsSystem Spec
23 Feb 2013   #1069
A Guy

Microsoft Community Contributor Award Recipient

Windows 7 Home Premium x64 SP1



Very good Juan

A Guy
My System SpecsSystem Spec
23 Feb 2013   #1070
Dave76

Microsoft Community Contributor Award Recipient

Windows 7 Ult x64 - SP1/ Windows 8 Pro x64



Great scores, nice SSD.
My System SpecsSystem Spec
