Windows 7: Show us your SSD performance 2

26 Jun 2013   #1191
whs
Microsoft MVP

Vista, Windows7, Mint Mate, Zorin, Windows 8



Quote   Quote: Originally Posted by Britton30 View Post
I think the boot manager is on the SSD. For the original install I had only the SSD connected. Here it shows it has the System and boot flags. Is this correct?

Attachment 274146
Yeah, I guess that rules out a bootmgr problem. And since you made a fresh install, that would also rule out an alignment problem. So there is not much left other than a hardware problem.

I never updated my M4 firmware because I once read that there were problems with the recent versions. I stayed on FW 0309.


My System SpecsSystem Spec
.
26 Jun 2013   #1192
kbrady1979

Windows 7 Professional 64bit SP1



I also have the OS, programs, and 3-4 of the games that I play on my SSD. Users Data is on a HDD. Reboot time is 21-25 seconds. Doesn't really matter though........I rarely reboot this machine.
My System SpecsSystem Spec
26 Jun 2013   #1193
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1



Maybe we are comparing apples and oranges. The times I quote are from hitting the Restart button until the desktop in functional.
In Event viewer that would be event 100 + event 200 + POST time. Of course POST time isn't in the event viewer.
My System SpecsSystem Spec
.

27 Jun 2013   #1194
whs
Microsoft MVP

Vista, Windows7, Mint Mate, Zorin, Windows 8



Gary, what is the event 100 time - that would be the right measure.

There are, of course, all kinds of other factors involved. Example:

I have now installed an OCZ Vector on my Inspiron 530. The Vector is one of the fastest SSDs available. But my Inspiron has no 6Gb port, so I have it on a 3Gb port. In addition the Inspiron has only 4GB of RAM and a Q6600 (2.4GHz quad) CPU. Event 100 is 25 seconds.

The 'slower' M4 is on my XPS 8300 with an i7 and 8GB of RAM plus a 6Gb port. So event 100 shows 17 seconds.

Bottom line: Not only the speed of the SSD is responsible for the boot time but also the overall PC configuration.
My System SpecsSystem Spec
27 Jun 2013   #1195
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1



My worst event 100 is 33471ms, and the best is 21864ms. I think that worst time is the first reboot on the 840 Pro.

I had one event 200, Windows shutdown time, of more than 47 seconds and change.

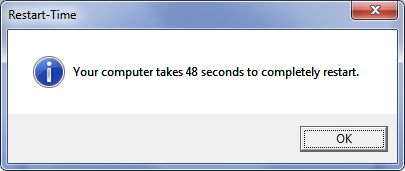

I have been using THIS to time reboots.

Show us your SSD performance 2-restart.png

I connected the 840 Pro to a SATA II port to format it and it was noticeably slower with the ASSSD test.


My System SpecsSystem Spec
28 Jun 2013   #1196
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1



I have just done a fresh install of w7 on the old M4 with only the basic board drivers and no programs. The entire OS is on the SSD. I assume the crazy ASUS BIOS is the bottle neck, it takes 21-22 seconds to POST. That's from the time the Shutting Down screen disappears until the Starting Windows appears. Here' the result of this install's reboot time.
Show us your SSD performance 2-capture.png


My System SpecsSystem Spec
28 Jun 2013   #1197
Faladu

Windows 7 Ultimate Retail Box (64-bit installed) + Service Pack 1



Any advice for me? Been using this SSD 8 months, or so, I think.

I just did upgrade my firmware, once I was able to, had to remove the AMD SATA controller driver temporarily, to push the new firmware and then put it back afterwards. Both the AMD SATA controller driver and firmware are the latest.

See newegg's details, my Seq. Writes up to 520MB/s??? I am 20% that: []

ADATA XPG SX900 ASX900S3-128GM-C 2.5" 128GB SATA III MLC Internal Solid State Drive (SSD) - Newegg.com

You guys cheating by using old version of AS SSD Benchmark, the current 1.7... is from May '09?


Attached Thumbnails
Show us your SSD performance 2-compr-bench-adata-sx-900-sat-6.28.2013-3-20-09-pm.png
Attached Images
Show us your SSD performance 2-ssd-bench-adata-sx-900-sat-6.28.2013-3-08-05-pm.png
My System SpecsSystem Spec
28 Jun 2013   #1198
kbrady1979

Windows 7 Professional 64bit SP1



The Adata SX900 uses a Sandforce controller, which deals with compressible data on the fly, which is what contributes to the faster write speeds. AS SSD tests with incompressible data which doesn't allow drives with Sandforce controllers to reach those high write speeds. To be honest, Sequential Read/Write speeds mean dick to 99.9% of users. The real world performance numbers are: 4K and Acc. time and they are exponentially faster than a mechanical hard drive.
My System SpecsSystem Spec
28 Jun 2013   #1199
ICIT2LOL

Desk1 7 Home Prem / Desk2 10 Pro / Main lap Asus ROG 10 Pro 2 laptop Toshiba 7 Pro Asus P2520 7 & 10



Quote   Quote: Originally Posted by Britton30 View Post
I have just done a fresh install of w7 on the old M4 with only the basic board drivers and no programs. The entire OS is on the SSD. I assume the crazy ASUS BIOS is the bottle neck, it takes 21-22 seconds to POST. That's from the time the Shutting Down screen disappears until the Starting Windows appears. Here' the result of this install's reboot time.
Attachment 274348
Yep Gary that is just about what my machine does at the moment the Sandy bridge boots faster than Ivy and both have the same 830 drive but the Sandy is a Gigabyte board withthe non EUFI BiOS.
My System SpecsSystem Spec
28 Jun 2013   #1200
kbrady1979

Windows 7 Professional 64bit SP1



Well, it's been a little over a year since I built this system and the Samsung 830 SSD is running as good today as the day I installed it. I've not been easy on it by any means, and it just asks for more!

Here are the numbers:

Show us your SSD performance 2-samsung-830-6-28-2013.jpg Show us your SSD performance 2-samsung-830-compression-benchmark.jpg

@ Faladu: If you want to see what your numbers are on compressible data, get Crystal Disk Mark, Click on File > Test Data > All 0x00 (0 Fill), then run a test. That will allow CDM to test the SSD and let it take advantage of it's compression algorithm.


My System SpecsSystem Spec
