Windows 7: Show us your SSD performance 2

08 Dec 2013   #1401
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1



Quote   Quote: Originally Posted by stve View Post
Here's mine had problems running Rapid mode Samsung Magician was claiming my Haswell i7-4770k was too slow the CPU needs to run at 1GHz or faster.
That may be Steve, I tested one and it idled at 800MHz till I changed the minimum in Power Settings.


My System SpecsSystem Spec
.
10 Dec 2013   #1402
garuda

Windows 7 Ultimate x64


Expand SATA ports with PCIe card

For those interested in the performance numbers when expanding SATA SSD device capacity using a PCIe card. My mobo ports were filled, so had to go PCIe.


Attached Thumbnails
Show us your SSD performance 2-dsc07846-bb.jpg
My System SpecsSystem Spec
10 Dec 2013   #1403
whs
Microsoft MVP

Vista, Windows7, Mint Mate, Zorin, Windows 8



That's different. Numbers are like on a 6Gb Sata port.
My System SpecsSystem Spec
.

10 Dec 2013   #1404
garuda

Windows 7 Ultimate x64



Quote   Quote: Originally Posted by whs View Post
That's different. Numbers are like on a 6Gb Sata port.
whs,

I'm not sure what you mean. Do you think the numbers are too fast for an SSD bridged thru a PCIe card?

Before purchasing, I checked with a SIIG tech who said to expect the PCIe mounted SSD (and 3 adjacent PCIe SATA ports) to be slower than the same SSD connected directly to on-mobo SATA ports. He reasoned that the PCIe SSD had to go thru more circuitry and therefore was slower, even though when plugged to x16 slot to main frontend bus.

I did try both ways. Interestingly, the SSD's SEQ. READ was faster, WRITE was slower (than mobo port) when on PCI slot. But when connected directly to 6Gb mobo port, the SEQ. WRITE was faster, with READ being slower (than when on PCI card). That was strange to me. Maybe I'll post the two readings here side-by-side.
My System SpecsSystem Spec
10 Dec 2013   #1405
whs
Microsoft MVP

Vista, Windows7, Mint Mate, Zorin, Windows 8



I would not disect the nums to the nth degree. Overall it looks like several of my SSDs that are Sata attached. And even if they were a bit different, in real life you would not notice it. It is the access time that drives the performance.

I just don't understand why everybody gets so excited about those measurements. They really don't mean much for your daily operation. At best they are good to determine whether there is a serious problem - e.g. misalignment.
My System SpecsSystem Spec
11 Dec 2013   #1406
garuda

Windows 7 Ultimate x64



Quote   Quote: Originally Posted by whs View Post
I would not disect the nums to the nth degree.... in real life you would not notice it. It is the access time that drives the performance.... I just don't understand why everybody gets so excited about those measurements.
I agree, the numbers are so close to each other, it really doesn't matter to me. In fact, I haven't run a bench on mine for over eight months. I'm not an OC'er or techie. I like to have them around, but I don't have the inclination. I'm more interested in SSD reliability than top performance, which is why I started with Intel SSDs. Then Crucial M500s got so cheap, I had to switch.

I ran these recent benches to see if the tech at SIIG was right. I just wanted one particularly fast SSD for a cache drive for Adobe stuff. I always thought the closer you get to the frontside bus, the better. I was surprised when he told me otherwise.

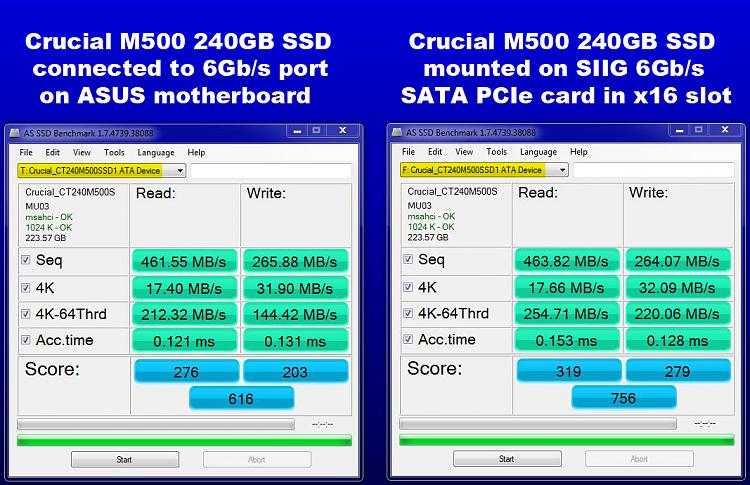

The other reason is I don't often get a chance to give back to this forum for the help they give me. I thought sharing the PCIe card info might help others who need more SATA ports. However, I did do a comparison out of curiosity, see below; and put together a short vid for the YouTubers.

https://www.youtube.com/watch?v=RwMhbsgShns


Attached Thumbnails
Show us your SSD performance 2-sata-port-vs-pcie-card.jpg
My System SpecsSystem Spec
11 Dec 2013   #1407
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1



Garuda, you may get a boost if that board can use the Intel SATA drivers, iastor.sys.
My System SpecsSystem Spec
12 Dec 2013   #1408
mjf

Windows 7x64 Home Premium SP1

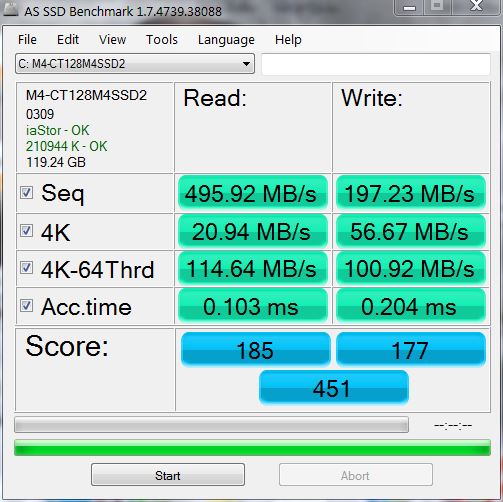

My results depress me a little when I revisit this thread. I guess the 4K-64 Thrd doesn't mean much in real life.
Show us your SSD performance 2-c4.jpg

Show us your SSD performance 2-s840.jpg


My System SpecsSystem Spec
12 Dec 2013   #1409
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1



Michael your 4K read/write scores and access time on both SSDs are really good, your machine should work fast. The alignment on your M4 drive is odd, but OK. Usually it is 1024K, maybe Wolfgang can speak to that.

I used Samsung Magician yesterday and there is a new version of it and new Firmware for the 840EVO. Rapid mode can now be invoked on the 840Pro now.

(The M4 has a newer firmware than what you have)

Show us your SSD performance 2-asssd.png


My System SpecsSystem Spec
12 Dec 2013   #1410
whs
Microsoft MVP

Vista, Windows7, Mint Mate, Zorin, Windows 8



Here is my M4 for comparison - from today. Maybe I should update the firmware after all.


Attached Thumbnails
Show us your SSD performance 2-2013-12-12_1655.png
My System SpecsSystem Spec
