Windows 7: Show us your SSD performance 2

26 Jun 2014   #1591
Wrend

Windows 7 Professional SP1 64bit, Debian GNU/Linux 64bit (virtual machine on a RAM drive)



Here's my 1TB Samsung 480 EVO with rapid mode on. There seems to be a bit of variation between times I've run the test.

Show us your SSD performance 2-ssd-01.png

...

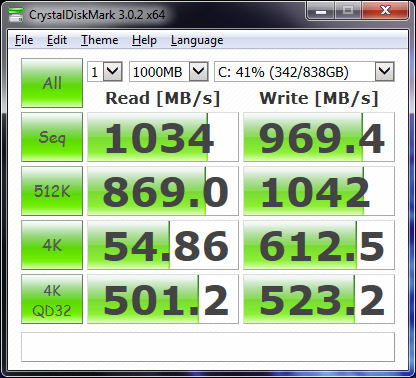

And here's CrystalDiskMark

Show us your SSD performance 2-cdm-ssd-01.png




My System SpecsSystem Spec
.
26 Jun 2014   #1592
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1

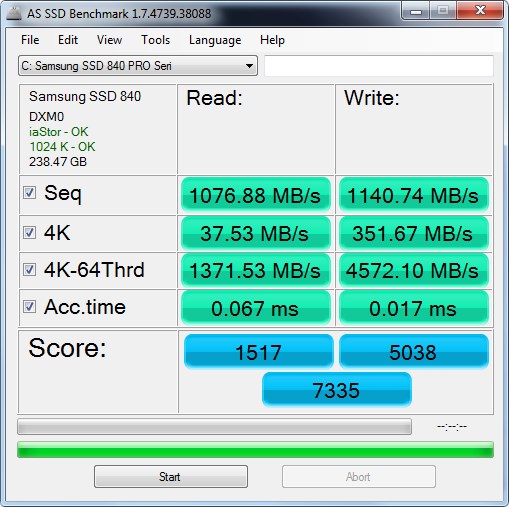

840Pro 256GB, 10% for Over Provisioning, with Rapid Mode.
Wrend it may not affect it much but these benchmarks do a lot of read/write cycles. ASSSD and Crystal never agree on mine. I think it's because one uses compressed data and one doesn't.

Show us your SSD performance 2-asssd.jpg


My System SpecsSystem Spec
26 Jun 2014   #1593
ZaLiTH

Win 10 x64 Pro x64 / Ubuntu 15.10 x64



Seems the Samsung 840's are owning the SSD department in speed.. Out of curiosity, how much different would / could the drive controller make in these cases? Or would it be a simple case of SATA2 or SATA3?
My System SpecsSystem Spec
.

26 Jun 2014   #1594
Wrend

Windows 7 Professional SP1 64bit, Debian GNU/Linux 64bit (virtual machine on a RAM drive)



Those are likely relevant factors too, but with the 840s, RAPID Mode probably has a lot to do with it. That is a feature of the Samsung SSD software that allows for caching of the SSD on RAM.
My System SpecsSystem Spec
26 Jun 2014   #1595
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1



Quote   Quote: Originally Posted by ZaLiTH View Post
Seems the Samsung 840's are owning the SSD department in speed.. Out of curiosity, how much different would / could the drive controller make in these cases? Or would it be a simple case of SATA2 or SATA3?
I think the controller has a lot to do with the Sammie's speeds. It is a 3 core made in-house by Samsung so they control the whole thing including making their own NAND.

You'd not notice any difference from SATAII to SATAIII but benchmarks would. Either will perform the same, faster than greased lightning.
I don't know where the caching is for Rapid Mode, looking as Resource Monitor it does not show and RAM for it.
My System SpecsSystem Spec
26 Jun 2014   #1596
Wrend

Windows 7 Professional SP1 64bit, Debian GNU/Linux 64bit (virtual machine on a RAM drive)



Quote   Quote: Originally Posted by Britton30 View Post
...

I don't know where the caching is for Rapid Mode, looking as Resource Monitor it does not show and RAM for it.
In RAM somewhere; I would imagine in used, but it might be in standby or similar, I suppose. It uses up to 1GB of your RAM, depending how much it deems you have available to use, and it will also free it up as needed.

More info on Samsung RAPID Mode here (interesting read, in my opinion): http://www.samsung.com/pl/business-i...pid-Mode-0.pdf
My System SpecsSystem Spec
26 Jun 2014   #1597
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1



I'm wrong, again, there are entries for Samsung Rapid Mode in RAM.

Show us your SSD performance 2-rapid.jpg


My System SpecsSystem Spec
26 Jun 2014   #1598
paulpicks21

Windows 7 Professional 64 bit



I remember when I tried out primocache. I guess it's similar to Rapid mode on the Samsung drives.

Show us your SSD performance 2
My System SpecsSystem Spec
26 Jun 2014   #1599
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1



Quote   Quote: Originally Posted by paulpicks21 View Post
I remember when I tried out primocache. I guess it's similar to Rapid mode on the Samsung drives.

Show us your SSD performance 2
I liked that too Paul until the trial run out.
My System SpecsSystem Spec
26 Jun 2014   #1600
A Guy

Microsoft Community Contributor Award Recipient

Windows 7 Home Premium x64 SP1



Is it worth it to get an 840 for a SATA2 system? It could always be moved to a newer system later, but with the way prices and advancements are going, there will be a new Top Dog then. If SATA2 will not benefit, then a lower priced/rated SSD would do just as well. A Guy
My System SpecsSystem Spec
