Windows 7: Show us your SSD performance 2

11 Aug 2014   #1611
paulpicks21

Windows 7 Professional 64 bit

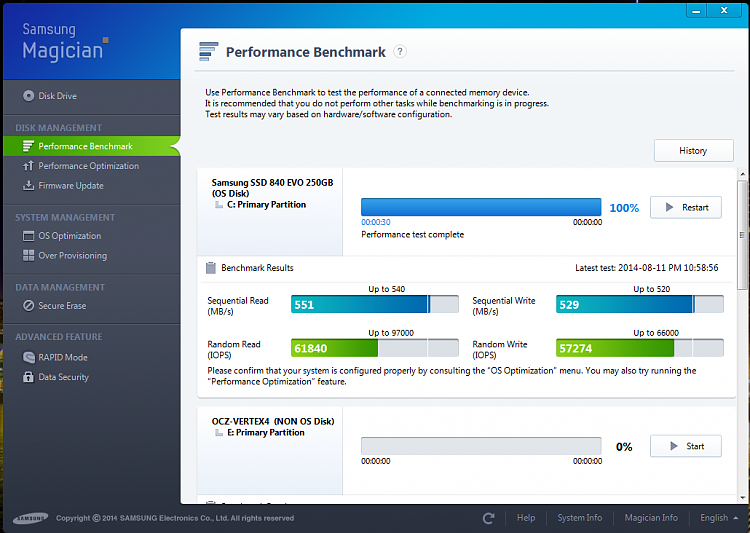

Here's a few benches from the Evo I installed recently. Nothing amazing but about right. Seems like a nice drive and the Samsung software made it very easy moving my OS from my old Vertex 4. A couple of clicks of the mouse and it was fully transferred and working perfectly within 10-15 mins

Show us your SSD performance 2-evo.png

Show us your SSD performance 2-.png

Show us your SSD performance 2-atto.png




My System SpecsSystem Spec
.
11 Aug 2014   #1612
Clintlgm

Windows 7 64 bit Pro MC



Quote   Quote: Originally Posted by Victek View Post
I installed my Crucial MX100 SSD a couple of weeks ago. It was originally connected to a SATA II motherboard port, but today I installed a PCIe SATA III card. Here are the best benchmarks to date. This is probably as good as it gets until I upgrade to a motherboard with embedded SATA III.
This is on a P7P55D-E6 PRO, Clean install MBR, Samsung 830 I must still not have set up correct yet?
I guess I can't post pictures?? My Score AS was only 369
My System SpecsSystem Spec
11 Aug 2014   #1613
paulpicks21

Windows 7 Professional 64 bit



Quote   Quote: Originally Posted by Clintlgm View Post
Quote   Quote: Originally Posted by Victek View Post
I installed my Crucial MX100 SSD a couple of weeks ago. It was originally connected to a SATA II motherboard port, but today I installed a PCIe SATA III card. Here are the best benchmarks to date. This is probably as good as it gets until I upgrade to a motherboard with embedded SATA III.
This is on a P7P55D-E6 PRO, Clean install MBR, Samsung 830 I must still not have set up correct yet?
I guess I can't post pictures?? My Score AS was only 369

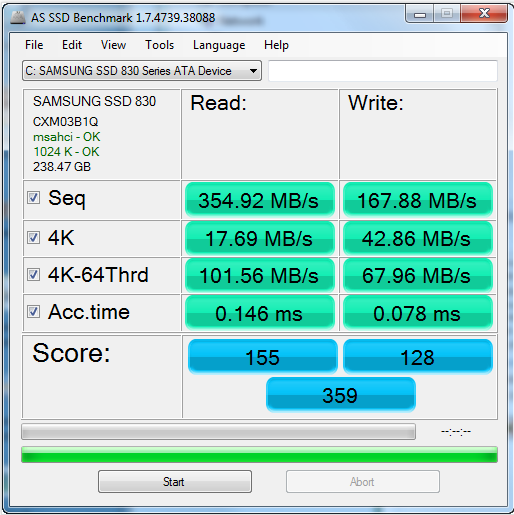

The image works if I click it, here ya go.

Show us your SSD performance 2-ssd.png

I would suspect on that motherboard you are running Sata II so the speeds won't be as fast as advertised.


My System SpecsSystem Spec
.

11 Aug 2014   #1614
kbrady1979

Windows 7 Professional 64bit SP1



Paul, you should try the Intel RST driver instead of the stock Microsoft driver and see what the difference is. As far as I know, Intel RST is somewhat better
My System SpecsSystem Spec
13 Aug 2014   #1615
Clintlgm

Windows 7 64 bit Pro MC



Quote   Quote: Originally Posted by paulpicks21 View Post
Quote   Quote: Originally Posted by Clintlgm View Post
Quote   Quote: Originally Posted by Victek View Post
I installed my Crucial MX100 SSD a couple of weeks ago. It was originally connected to a SATA II motherboard port, but today I installed a PCIe SATA III card. Here are the best benchmarks to date. This is probably as good as it gets until I upgrade to a motherboard with embedded SATA III.
This is on a P7P55D-E6 PRO, Clean install MBR, Samsung 830 I must still not have set up correct yet?
I guess I can't post pictures?? My Score AS was only 369

The image works if I click it, here ya go.

Attachment 328944

I would suspect on that motherboard you are running Sata II so the speeds won't be as fast as advertised.
No it has SATA 3 on 2 ports this SSD is on the 1 of these two port. They are controlled by a Marvel drivers. I have tried to install IRST drivers with out any luck. I guess this MB is just to old
My System SpecsSystem Spec
13 Aug 2014   #1616
paulpicks21

Windows 7 Professional 64 bit



Quote   Quote: Originally Posted by Clintlgm View Post
Quote   Quote: Originally Posted by paulpicks21 View Post
Quote   Quote: Originally Posted by Clintlgm View Post

This is on a P7P55D-E6 PRO, Clean install MBR, Samsung 830 I must still not have set up correct yet?
I guess I can't post pictures?? My Score AS was only 369

The image works if I click it, here ya go.

Attachment 328944

I would suspect on that motherboard you are running Sata II so the speeds won't be as fast as advertised.
No it has SATA 3 on 2 ports this SSD is on the 1 of these two port. They are controlled by a Marvel drivers. I have tried to install IRST drivers with out any luck. I guess this MB is just to old
Looking again at the motherboard specs, it states the fastest ports are Sata 3Gb/s so I guess that's your limiting factor. Obviously all the new boards are 6Gb/s.
My System SpecsSystem Spec
14 Aug 2014   #1617
ZaLiTH

Win 10 x64 Pro x64 / Ubuntu 15.10 x64



Quote   Quote: Originally Posted by Clintlgm View Post
This is on a P7P55D-E6 PRO, Clean install MBR, Samsung 830 I must still not have set up correct yet?
Quote   Quote: Originally Posted by paulpicks21 View Post
Looking again at the motherboard specs, it states the fastest ports are Sata 3Gb/s so I guess that's your limiting factor. Obviously all the new boards are 6Gb/s.
Not sure which specs you're looking at Paul. Just to chime in (not sure what the problem is, sorry), but according to the Asus website, the P7P55D-E Pro does actually support SATA3.

I'm not sure what a "P7P55D-E6 Pro" is though, unless that was just a typo(?), I can't find any boards with that model number...
My System SpecsSystem Spec
14 Aug 2014   #1618
mjf

Windows 7x64 Home Premium SP1

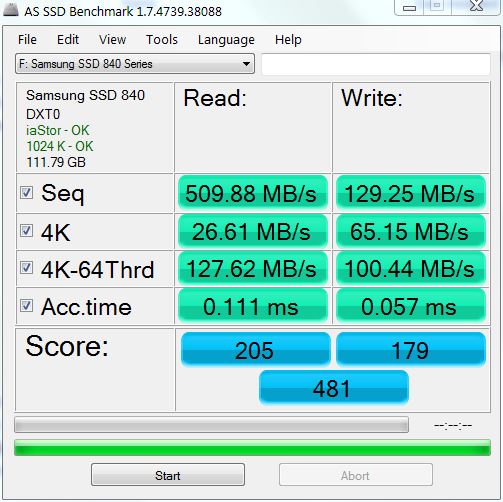

I have one of the older Samsung 840 series - different from the 840 EVO I think which can give higher sequential writes (Rapid DRAM caching thing?)
Show us your SSD performance 2-samsung-840-ssd-.jpg
Also, my Crucial M4 128G isn't great on sequential writes but that doesn't stop the performance (4k R/W, access times) being a standout for the OS drive compared to a HDD.
I also have a Samsung SSD on an older PC connected to a Sata II port and the performance gain is worth it IMO.


My System SpecsSystem Spec
15 Aug 2014   #1619
Clintlgm

Windows 7 64 bit Pro MC



Quote   Quote: Originally Posted by paulpicks21 View Post
Quote   Quote: Originally Posted by Clintlgm View Post
Quote   Quote: Originally Posted by Victek View Post
I installed my Crucial MX100 SSD a couple of weeks ago. It was originally connected to a SATA II motherboard port, but today I installed a PCIe SATA III card. Here are the best benchmarks to date. This is probably as good as it gets until I upgrade to a motherboard with embedded SATA III.
This is on a P7P55D-E6 PRO, Clean install MBR, Samsung 830 I must still not have set up correct yet?
I guess I can't post pictures?? My Score AS was only 369

The image works if I click it, here ya go.

Attachment 328944

I would suspect on that motherboard you are running Sata II so the speeds won't be as fast as advertised.
https://www.dropbox.com/s/woveh1sc48...20MB%20Add.png

As I typed earlier the P7P does have 2 ports that are SATA III and my Samsung 840 pro is on the first one. I don't seem to be able to install IRST drivers
My System SpecsSystem Spec
15 Aug 2014   #1620
essenbe

Windows 7 Enterprise X64/Windows 10 Enterprise X64/Windows 10 Pro X64/Linux Mint



That's because they are controlled by a Marvell controller and not the Chipset controller. You will typically get better results from the Chipset controlled ports. IRST will only work on the Intel chipset controllers.
My System SpecsSystem Spec
