Windows 7: Show us your SSD performance 2

22 May 2012   #281
Hopalong X

Windows7 Pro 64bit SP-1; Windows XP Pro 32bit



Quote   Quote: Originally Posted by BarryBGB View Post
Quote   Quote: Originally Posted by whs View Post
The one good thing besides the confusing nums is that in real life it probably makes very little difference. A little more or a little less in R/W times is hardly measurable during daily operations.
I totally agree.

There is some questions I have about the alignment though. Is there an alignment number that is better than the rest?

If so, how would I change the alignment number?

I plan on imaging the Vertex4 tonight and start from scratch with both the Vertex4 array and the Vertex3 array. I need to be consistant with the tests.
That is why I am asking about the alignment.
As you can see on AS SSD yours is 1024 and that is perfect.


My System SpecsSystem Spec
.
22 May 2012   #282
whs
Microsoft MVP

Vista, Windows7, Mint Mate, Zorin, Windows 8



Quote   Quote: Originally Posted by BarryBGB View Post
Quote   Quote: Originally Posted by whs View Post
The one good thing besides the confusing nums is that in real life it probably makes very little difference. A little more or a little less in R/W times is hardly measurable during daily operations.
I totally agree.

There are some questions I have about the alignment though. Is there an alignment number that is better than the rest?

If so, how would I change the alignment number?

I plan on imaging the Vertex4 tonight and start from scratch with both the Vertex4 array and the Vertex3 array. I need to be consistant with the tests.
That is why I am asking about the alignment.
I understand that 1024 is a good alignment. But I am not sure whether that really performs better than any other valid number.

If you want to change it, there are several ways. I have described one method here: SSD - Fix Misalignment
My System SpecsSystem Spec
22 May 2012   #283
BarryBGB

Microsoft Windows 7 Professional & Ultimate 64-bit 7601 Multiprocessor Free Service Pack 1



Hopalong X,

Yes, those are but I have a couple with 103424 as well. Not sure what happened there. I think that is when the Vertex4 was with firmware 1.3 and I did a clean install instead of imaging.


Attached Images
Show us your SSD performance 2-2012-05-12_vertex4-raid0-v1.3.jpg
My System SpecsSystem Spec
.

22 May 2012   #284
Hopalong X

Windows7 Pro 64bit SP-1; Windows XP Pro 32bit



If they have System Reserve they often end up at 103424.

1024 is often the offset when there is no System Reserve partition.
As WHS stated above it does not really matter.
The only important thing is the number showing divisible by four (4)?
In both case yours are so both are perfectly fine.

Mike


This is one you previously posted below 32K. It is divisible by 4 so you are good to go.

My System SpecsSystem Spec
22 May 2012   #285
BarryBGB

Microsoft Windows 7 Professional & Ultimate 64-bit 7601 Multiprocessor Free Service Pack 1



Quote   Quote: Originally Posted by whs View Post
Quote   Quote: Originally Posted by BarryBGB View Post
Quote   Quote: Originally Posted by whs View Post
The one good thing besides the confusing nums is that in real life it probably makes very little difference. A little more or a little less in R/W times is hardly measurable during daily operations.
I totally agree.

There are some questions I have about the alignment though. Is there an alignment number that is better than the rest?

If so, how would I change the alignment number?

I plan on imaging the Vertex4 tonight and start from scratch with both the Vertex4 array and the Vertex3 array. I need to be consistant with the tests.
That is why I am asking about the alignment.
I understand that 1024 is a good alignment. But I am not sure whether that really performs better than any other valid number.

If you want to change it, there are several ways. I have described one method here: SSD - Fix Misalignment
Now I remember! I used Diskpart when I first got my Crucial in 2010 and used that method. Thanks for the tip.



Quote   Quote: Originally Posted by Hopalong X View Post
If they have System Reserve they often end up at 103424.

1024 is often the offset when there is no System Reserve partition.
As WHS stated above it does not really matter.
The only important thing is the number showing divisible by four (4)?
In both case yours are so both are perfectly fine.

Mike


This is one you previously posted below 32K. It is divisible by 4 so you are good to go.

Ah yes. That was the single Vertex3 but not sure how it got to 32K.

You are right about the 103424, I remember I did a fresh install with the DVD and of course Win decided to add the 100MB partition. I can't tell you how much I hate that. I remember now that when I saw that, I started over and partitioned the drive from another OS just to keep Windows from making another one.

As far as the alignment goes, someone on another site told me that to do a proper comparison of the single, Vertex3 Raid, and Vertex4 raid, they all need to have the same alignment.

I never thought that mattered, only that they were aligned.

Am I wrong or are they wrong?
As it pertains to benchmarks that is.
My System SpecsSystem Spec
22 May 2012   #286
Hopalong X

Windows7 Pro 64bit SP-1; Windows XP Pro 32bit



They are wrong.

Benchmarks can vary as much as 2-5% from run to run from what I have seen.
TRIM, and garbage collection (GC). How close to needing TRIM run? Did it just run GC or is it almost due? No way of knowing after you run the Bench the first time when the SSD is new.
Antivirus running, indexing by Windows all can have an effect on the benchmark. These shut down if running in the background but did they have time to shut down before the benchmark started running or slightly after? That can effect the results.

Benches can be good to make sure everything is good when they are new. After they are used a while if it seems to be slow and you run the bench again and it is slow then???
Say your 4K drops from 24mb/s to 10Mb/s. Now you know something is off.

Sequential drop from 500Mb/s to 490Mb/s is not a big deal on the other hand.

Otherwise enjoy.
Mike

Your question. As far as I know alignment has no effect on benchmarks unless alignment is wrong- not divisible by four.
My System SpecsSystem Spec
22 May 2012   #287
BarryBGB

Microsoft Windows 7 Professional & Ultimate 64-bit 7601 Multiprocessor Free Service Pack 1



Quote   Quote: Originally Posted by Hopalong X View Post
They are wrong.

Benchmarks can vary as much as 2-5% from run to run from what I have seen.
TRIM, and garbage collection (GC). How close to needing TRIM run? Did it just run GC or is it almost due? No way of knowing after you run the Bench the first time when the SSD is new.
Antivirus running, indexing by Windows all can have an effect on the benchmark. These shut down if running in the background but did they have time to shut down before the benchmark started running or slightly after? That can effect the results.

Benches can be good to make sure everything is good when they are new. After they are used a while if it seems to be slow and you run the bench again and it is slow then???
Say your 4K drops from 24mb/s to 10Mb/s. Now you know something is off.

Sequential drop from 500Mb/s to 490Mb/s is not a big deal on the other hand.

Otherwise enjoy.
Mike

Your question. As far as I know alignment has no effect on benchmarks unless alignment is wrong- not divisible by four.

Thank you Mike for the very clear description.
My System SpecsSystem Spec
22 May 2012   #288
Hopalong X

Windows7 Pro 64bit SP-1; Windows XP Pro 32bit



Quote   Quote: Originally Posted by BarryBGB View Post
Thank you Mike for the very clear description.
Rats!!! I was trying to confuse you.
My System SpecsSystem Spec
23 May 2012   #289
smarteyeball

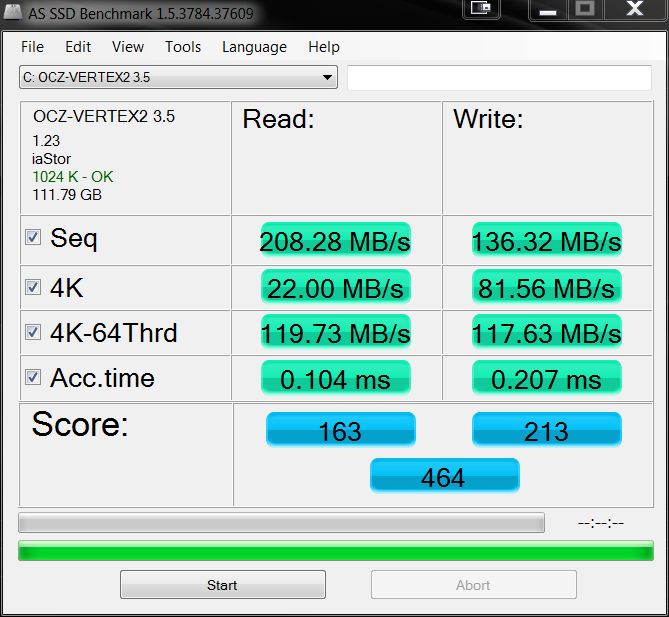

128GB Vertex 2
Show us your SSD performance 2-vertex-2-ssd-mbs.jpg

128GB Crucial C300
Show us your SSD performance 2-hd-ssd-c300-fw-007.jpg

128 Crucial M4
Show us your SSD performance 2-hd-c4.jpg

240GB Intel 520
Show us your SSD performance 2-ssd-intel-520.jpg


I was going to Raid the intel drives, but figured they're fast enough without doing so.


My System SpecsSystem Spec
24 May 2012   #290
Dave76

Microsoft Community Contributor Award Recipient

Windows 7 Ult x64 - SP1/ Windows 8 Pro x64



Nice upgrade.

Any noticeable difference between the 128GB M4 and the 520?
The 4k read and access times are slightly better on the M4 but, my guess is it's not a noticeable difference.
My System SpecsSystem Spec
