Windows 7: Show us your SSD performance 2

25 Oct 2012   #651
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1



Quote   Quote: Originally Posted by ICit2lol View Post
Hum just ran mine again and got this?? any ideas please??
Oh meant to add it had a message re over or underclocking the CPU??
Sorry I missed this John. No, I've never seen that happen before. Could you run it again and take a snip of the error message?


My System SpecsSystem Spec
.

25 Oct 2012   #652
ICIT2LOL

Desk1 8 Pro / Desk2 7 Home Prem / Main lap Asus ROG 7 Pro



Hiyya Gary It must have been a bad download or something with that red screen stuff - this application I downloaded from Filehippo

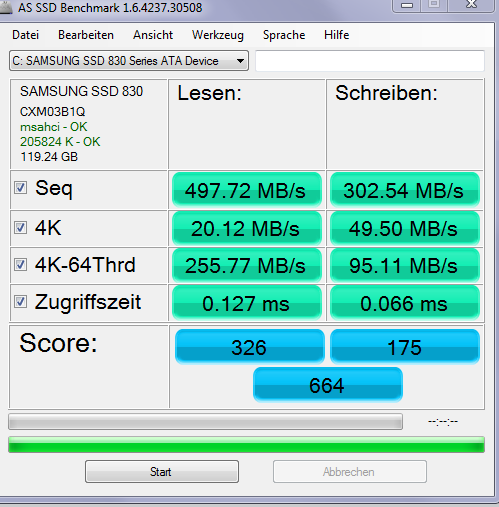

Attached is this reading but I am still not real sure which are the most important readings are.


Attached Images

My System SpecsSystem Spec
25 Oct 2012   #653
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1



John it's the 4K Thread thats most important, the others are for statistical use mainly. Your scores are very good!
My System SpecsSystem Spec
.


26 Oct 2012   #654
ICIT2LOL

Desk1 8 Pro / Desk2 7 Home Prem / Main lap Asus ROG 7 Pro



Quote   Quote: Originally Posted by Britton30 View Post
John it's the 4K Thread thats most important, the others are for statistical use mainly. Your scores are very good!
Ok Gary got that so I can use this reading as a bit of a benchmark for my other stuff I am thinking?
My System SpecsSystem Spec
26 Oct 2012   #655
whs
Microsoft MVP

Vista, Windows7, Mint Mate, Zorin, Windows 8



Zugriffszeit (access time) is the other important reading. Anything around 0.1ms is excellent.

The 4K reading is important because the OS uses 4K blocks 65% of the time - at least that is the number I saw once in a Microsoft article.

The other important reading is top left where it says 205.824K. If that is divisible by 4 (which it is in this case), it means that the SSD is alingned. The mention of "OK" means the same thing.

And as Gary says, the rest is just for statistical and bragging purposes.
My System SpecsSystem Spec
26 Oct 2012   #656
Commodore Pet

Windows 7 Home Premium 64 bit SP1

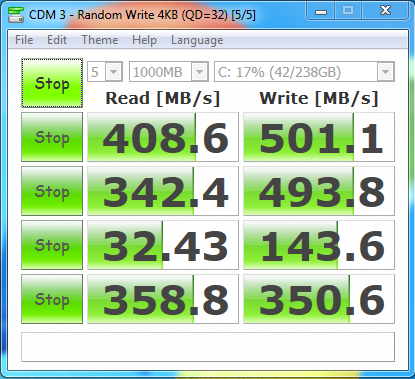

Here are my results for my Vertex 4. I just did an upgrade and I am quite happy with the speed boost.


Attached Images

My System SpecsSystem Spec
26 Oct 2012   #657
ICIT2LOL

Desk1 8 Pro / Desk2 7 Home Prem / Main lap Asus ROG 7 Pro



Quote   Quote: Originally Posted by whs View Post
Zugriffszeit (access time) is the other important reading. Anything around 0.1ms is excellent.

The 4K reading is important because the OS uses 4K blocks 65% of the time - at least that is the number I saw once in a Microsoft article.

The other important reading is top left where it says 205.824K. If that is divisible by 4 (which it is in this case), it means that the SSD is alingned. The mention of "OK" means the same thing.

And as Gary says, the reat is just for statistical and bragging purposes.
Thanks Wolfgang I am beginning to get a bit of a handle on this now and yes always use your alignment tutorial for everything - second chapter of the Bible in my desk folder
My System SpecsSystem Spec
27 Oct 2012   #658
whs
Microsoft MVP

Vista, Windows7, Mint Mate, Zorin, Windows 8



I am glad my tutorials are of some help. After the 5th SSD you will get the hang of it. Here is an interesting series of 6 articles that are worth reading. On the bottom of the linked article you find the other ones. Garbage Collection and TRIM in SSDs Explained - An SSD Primer - The SSD Review
My System SpecsSystem Spec
27 Oct 2012   #659
ICIT2LOL

Desk1 8 Pro / Desk2 7 Home Prem / Main lap Asus ROG 7 Pro



Wolfgang they are more than just a help on to my 7th now and as I said 2nd chapter of my Tutorial Bible

That ref is good too as I kept reading about it and never got round to staying still long enough to take it in.

Just out of curiosity I was looking at trying a G Skill but notice they have a Sandforce controller and would like your opinion on it please.
My System SpecsSystem Spec
27 Oct 2012   #660
kbrady1979

Windows 7 Professional 64bit SP1



I've learned the hard way to stay away from Sandforce controller based SSD's.............EVEN the Intel 520's(especially these)

There are too many excellent SSD's that DON'T use Sandforce.......Samsung 830/840, Plextor M5 Pro, Corsair Neutron GTX, OCZ Vertex 4....all these are FAST AND RELIABLE.

Kelly
My System SpecsSystem Spec
