Windows 7: Show us your SSD performance 2

13 Dec 2012   #791
Dave76

Microsoft Community Contributor Award Recipient

Windows 7 Ult x64 - SP1/ Windows 8 Pro x64



Quote   Quote: Originally Posted by JerometheGiraff View Post
Quote   Quote: Originally Posted by Dave76 View Post
Quote   Quote: Originally Posted by JerometheGiraff View Post

It's a Patriot Pyro 60 gig SSD.
Before doing anything to your SSD make a full image backup.
You have to decide if you want to try any methods of improving performance to your SSD, there are risks, as with most things done on computers.

Check your firmware version with AS SSD, you don't have to run the benchmark, it will tell you the firmware version in the upper left corner.
Also CrystalDiskInfo will show you the firmware.

First, make sure this is your SSD, installing the wrong firmware may brick the SSD.
Drivers and downloads for Pyro 60GB SATA III 2.5

One option to secure erase: Guide: Secure Erase/Zero Write/Factory Clear a Patriot SSD with Free/OSS software.
Those are the right drivers Why do I have to wipe my drive ?
You don't have to, but a secure erase will return performance, depending on the number of writes it has accumulated, it will start to have a diminishing affect as the SSD gets higher number of writes.
If it's still performing well for you, then don't worry about any benchmarks or the WEI score, leave it as it is.

Quote   Quote: Originally Posted by Hopalong X View Post
My new laptop with a Samsung 840 250GB.
That is a really nice SSD, that's a great score.
Any noticeable performance increase over the other SSDs you have?


My System SpecsSystem Spec
.
13 Dec 2012   #792
A Guy

Microsoft Community Contributor Award Recipient

Windows 7 Home Premium x64 SP1



Quote   Quote: Originally Posted by Hopalong X View Post
I like it so far.
This is the standard 840 not the Pro.
Good, keeping it's amateur status keeps it's options open Nice numbers. A Guy
My System SpecsSystem Spec
14 Dec 2012   #793
JerometheGiraff

Windows 10 Pro



Quote   Quote: Originally Posted by Dave76 View Post
Quote   Quote: Originally Posted by JerometheGiraff View Post
Quote   Quote: Originally Posted by Dave76 View Post
Before doing anything to your SSD make a full image backup.
You have to decide if you want to try any methods of improving performance to your SSD, there are risks, as with most things done on computers.

Check your firmware version with AS SSD, you don't have to run the benchmark, it will tell you the firmware version in the upper left corner.
Also CrystalDiskInfo will show you the firmware.

First, make sure this is your SSD, installing the wrong firmware may brick the SSD.
Drivers and downloads for Pyro 60GB SATA III 2.5

One option to secure erase: Guide: Secure Erase/Zero Write/Factory Clear a Patriot SSD with Free/OSS software.
Those are the right drivers Why do I have to wipe my drive ?
You don't have to, but a secure erase will return performance, depending on the number of writes it has accumulated, it will start to have a diminishing affect as the SSD gets higher number of writes.
If it's still performing well for you, then don't worry about any benchmarks or the WEI score, leave it as it is.

Quote   Quote: Originally Posted by Hopalong X View Post
My new laptop with a Samsung 840 250GB.
That is a really nice SSD, that's a great score.
Any noticeable performance increase over the other SSDs you have?
Is there anything else I could try ?
My System SpecsSystem Spec
.

14 Dec 2012   #794
Hopalong X

Windows7 Pro 64bit SP-1; Windows XP Pro 32bit



Quote   Quote: Originally Posted by Dave76 View Post

Quote   Quote: Originally Posted by Hopalong X View Post
My new laptop with a Samsung 840 250GB.
That is a really nice SSD, that's a great score.
Any noticeable performance increase over the other SSDs you have?
Yes but not because of the SSD.
My Samsung 830 in my desktop is on a Marvell 6.0Gbs controller chipset. So it never reaches its full potential.

The 840 is using the Intel 6.0Gbs chipset in the laptop.
A big difference in the Marvell and Intel controller chipsets.
My System SpecsSystem Spec
16 Dec 2012   #795
Dave76

Microsoft Community Contributor Award Recipient

Windows 7 Ult x64 - SP1/ Windows 8 Pro x64



Thanks, agree the Intel controller is much better than the Marvell.
My System SpecsSystem Spec
17 Dec 2012   #796
theveterans

Windows 7 Professional x64 SP1

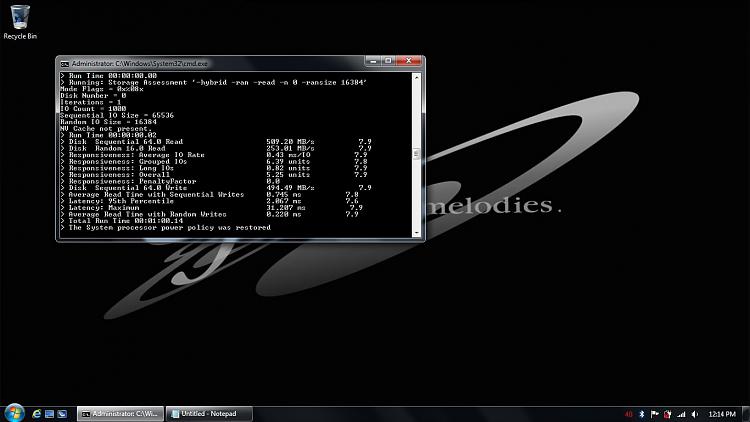

My sister's laptop with 128 GB SSD:

Show us your SSD performance 2-disk-performance.jpg

Code:
Microsoft Windows [Version 6.1.7601]
Copyright (c) 2009 Microsoft Corporation.  All rights reserved.
C:\Windows\system32>winsat disk -v
Windows System Assessment Tool
> Command Line 'winsat  disk -v'
> DWM running... leaving it on
> System processor power policy saved and set to 'max performance'
> Running: Feature Enumeration ''
> Gathering System Information
> Operating System                        : 6.1 Build-7601
> Processor                               : Intel(R) Core(TM) i7-2670QM CPU @ 2.
20GHz
> TSC Frequency                           : 0
> Number of Processors                    : 1
> Number of Cores                         : 4
> Number of CPUs                          : 8
> Number of Cores per Processor           : 4
> Number of CPUs Per Core                 : 2
> Cores have logical CPUs                 : YES
> L1 Cache and line Size                  : 32768  64
> L2 Cache and line Size                  : 262144  64
> Total physical mem available to the OS  : 7.94 GB (8,531,066,880 bytes)
> Adapter Description                     : Intel(R) HD Graphics 3000
> Adapter Manufacturer                    : NVIDIA
> Adapter Driver Version                  : 9.18.13.697
> Adapter Driver Date (yy/mm/dd)          : 2012\10\2
> Has DX9 or better                       : Yes
> Has Pixel shader 2.0 or better          : Yes
> Has LDDM Driver                         : Yes
> Dedicated (local) video memory          : 64MB
> System memory dedicated as video memory : 0MB
> System memory shared as video memory    : 1632MB
> Primary Monitor Size                    : 1366 X 768  (1049088 total pixels)
> WinSAT is Official                       : Yes
> Run Time 00:00:00.00
> Running: Storage Assessment '-seq -read -n 0'
Mode Flags = 0x%08x
Disk Number = 0
Iterations = 1
IO Count = 256
Sequential IO Size = 65536
Random IO Size = 16384
Run[1] Type[0x01080001] Zone[0] - 485.738111 MB/s
Run[1] Type[0x01080001] Zone[1] - 511.131829 MB/s
Run[1] Type[0x01080001] Zone[2] - 514.992237 MB/s
Run[1] Type[0x01080001] Zone[3] - 448.251559 MB/s
Run[1] Type[0x01080001] Zone[4] - 446.652099 MB/s
Run[1] Type[0x01080001] Zone[5] - 507.411427 MB/s
Run[1] Type[0x01080001] Zone[6] - 510.545974 MB/s
Run[1] Type[0x01080001] Zone[7] - 512.928171 MB/s
Run[1] Type[0x01080001] Zone[8] - 512.943513 MB/s
Run[1] Type[0x01080001] Zone[9] - 514.590449 MB/s
Run[1] Type[0x01080001] Zone[10] - 517.861513 MB/s
Run[1] Type[0x01080001] Zone[11] - 512.529595 MB/s
> Run Time 00:00:02.43
> Running: Storage Assessment '-ran -read -n 0'
Mode Flags = 0x%08x
Disk Number = 0
Iterations = 1
IO Count = 1000
Sequential IO Size = 65536
Random IO Size = 16384
Run[1] Type[0x01000002] Zone[0] - 210.969240 MB/s
> Run Time 00:00:00.23
> Running: Storage Assessment '-scen 2009 -drive C:'
Mode Flags = 0x%08x
Disk Number = 0
Iterations = 1
IO Count = 9000
Sequential IO Size = 65536
Random IO Size = 16384
        Requesting a file of size 1073741824 located at physical offset 0xeeae00
200.
Expected number of IOs: 9000
Number of IOs in trace file:9223
> Run Time 00:00:51.65
> Running: Storage Assessment '-seq -write -drive C:'
Mode Flags = 0x%08x
Disk Number = 0
Iterations = 8
IO Count = 1000
Sequential IO Size = 65536
Random IO Size = 16384
        Requesting a file of size 65536000 located at physical offset 0x6500200.

Run[1] Type[0x02000001] Zone[0] - 488.467719 MB/s
Run[2] Type[0x02000001] Zone[0] - 489.943199 MB/s
Run[3] Type[0x02000001] Zone[0] - 444.684874 MB/s
Run[4] Type[0x02000001] Zone[0] - 490.477705 MB/s
Run[5] Type[0x02000001] Zone[0] - 493.107927 MB/s
Run[6] Type[0x02000001] Zone[0] - 490.975592 MB/s
Run[7] Type[0x02000001] Zone[0] - 489.654906 MB/s
Run[8] Type[0x02000001] Zone[0] - 490.813713 MB/s
> Run Time 00:00:02.82
> Running: Storage Assessment '-flush -drive C: -seq'
Mode Flags = 0x%08x
Disk Number = 0
Iterations = 1
IO Count = 2501
Sequential IO Size = 65536
Random IO Size = 16384
        Requesting a file of size 67108864 located at physical offset 0xeeae0020
0.
Expected number of IOs: 2501
Number of IOs in trace file:2531
> Run Time 00:00:01.54
> Running: Storage Assessment '-flush -drive C: -ran'
Mode Flags = 0x%08x
Disk Number = 0
Iterations = 1
IO Count = 2501
Sequential IO Size = 65536
Random IO Size = 16384
        Requesting a file of size 67108864 located at physical offset 0xeeae0020
0.
Expected number of IOs: 2501
Number of IOs in trace file:2521
> Run Time 00:00:00.62
> Running: Storage Assessment '-hybrid -ran -read -n 0 -ransize 4096'
Mode Flags = 0x%08x
Disk Number = 0
Iterations = 1
IO Count = 1000
Sequential IO Size = 65536
Random IO Size = 4096
NV Cache not present.
> Run Time 00:00:00.00
> Running: Storage Assessment '-hybrid -ran -read -n 0 -ransize 16384'
Mode Flags = 0x%08x
Disk Number = 0
Iterations = 1
IO Count = 1000
Sequential IO Size = 65536
Random IO Size = 16384
NV Cache not present.
> Run Time 00:00:00.02
> Disk  Sequential 64.0 Read                   509.20 MB/s          7.9
> Disk  Random 16.0 Read                       253.01 MB/s          7.9
> Responsiveness: Average IO Rate              0.43 ms/IO          7.9
> Responsiveness: Grouped IOs                  6.39 units          7.8
> Responsiveness: Long IOs                     0.82 units          7.9
> Responsiveness: Overall                      5.25 units          7.9
> Responsiveness: PenaltyFactor                0.0
> Disk  Sequential 64.0 Write                  494.49 MB/s          7.9
> Average Read Time with Sequential Writes     0.745 ms          7.8
> Latency: 95th Percentile                     2.067 ms          7.6
> Latency: Maximum                             31.207 ms          7.9
> Average Read Time with Random Writes         0.220 ms          7.9
> Total Run Time 00:01:00.14
> The System processor power policy was restored
C:\Windows\system32>


My System SpecsSystem Spec
17 Dec 2012   #797
Ramon Zarat

Microsoft Windows 7 Ultimate 64-bit 7601 Multiprocessor Service Pack 1

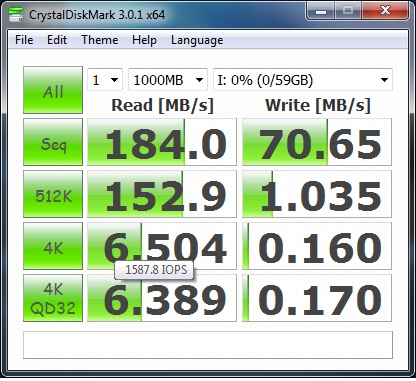

Just for fun, this is my new Mushkin 64GB USB3 score! This is the first USB flash drive I ever owned that can slap a traditional hard drive badly! This thing is amazingly fast! It came with FAT 32. Quickly formated to ExFAT and this is the result:



Show us your SSD performance 2-mushkin-64gb-exfat.jpg


My System SpecsSystem Spec
17 Dec 2012   #798
whs
Microsoft MVP

Vista, Windows7, Mint Mate, Zorin, Windows 8

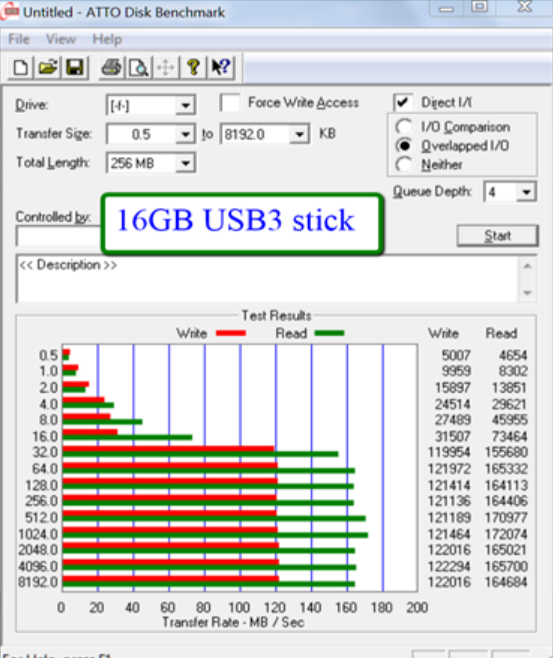

If you had Atto numbers, it would be interesting to compare. Here is my USB3 stick:


Attached Images
Show us your SSD performance 2-2012-12-17_2054.png
My System SpecsSystem Spec
19 Dec 2012   #799
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1



Here's a 64GB USB 3 stick, NTFS.

Wolfgang I was going to get ATTO but they have a long registration form to download it, so I passed.

Show us your SSD performance 2-cdmark.jpg


My System SpecsSystem Spec
19 Dec 2012   #800
Hopalong X

Windows7 Pro 64bit SP-1; Windows XP Pro 32bit



This is where I got my ATTO> ATTO Disk Benchmark Download - Softpedia

US, UK and RO download of free version. Zip file on right side of page.
Just download and unzip.
My System SpecsSystem Spec
Reply

 Show us your SSD performance 2




Thread Tools Search this Thread
Search this Thread:

Advanced Search




Similar help and support threads
Thread Forum
Show us your hard drive performance
I thought it would be interesting to compare everyones hard drive performances with screenshots from HD Tune utility (get from HD Tune). Maybe after some time we could produce a results table. So heres mine: Im going to show you the single WD Raptor X results first for interest: ...
Hardware & Devices
SSD show low performance
I bought a Samsung 840 EVO120Gb which is showing a very disappointing performance. My system is the following: Windows 7 Ultimate x64 Asus P7P55 WS GSkill 12gb Intel i5 760 2.8Ghz 4x Nvidia Quadro NVS 290
Performance & Maintenance
HDDs Show in BIOS, But Do Not Show in Disk Management
Hello, A newbie here that just completed a first-time new Win7 PC build. Successful installation of Win7 Pro on WD 600GB 10000 system drive. Went back and installed 4 additional HDD. (2) WD Caviar Black 1TB 7200 RPM and (2) WD Caviar 7200 500GB HDD from XP system that were used for storage. ...
Hardware & Devices
Show us your SSD performance
I'm interested to see what others are getting out of their SSD or SSDs in RAID. It's cool to look through the "Show us your hard drive performance" thread but here's a place for just SSD performance. I have a 128GB Patriot Torqx. (F/W v1881) Please post your benchmarks.:) Edit: I now have...
Hardware & Devices
Show us your Mechanical HDD performance...
Since the SSD boys and girls have a "Show us your SSD Performance" thread, I thought I'd start one for us mechanical HDD owners. Simply DL, install, and run HD Tune and post screenshots of results here in this thread. Please also tell us the Make and Model of your HDD(s) and any other specs you...
Hardware & Devices
show hidden folders show file extensions thru registry
I am trying to setup a default user or machine setup for how win7 handles folder view options. I want show hidden folders to be set to on for all users and the hide extensions for know file types to be unchecked or turned off ffor all users (so extensions show) I have located them in the registry...
General Discussion


Our Sites

Site Links

About Us

Find Us

Windows 7 Forums is an independent web site and has not been authorized, sponsored, or otherwise approved by Microsoft Corporation. "Windows 7" and related materials are trademarks of Microsoft Corp.

© Designer Media Ltd

All times are GMT -5. The time now is 00:14.

Twitter Facebook Google+



Windows 7 Forums

Seven Forums Android App Seven Forums IOS App
