Windows 7: toshiba satellite a500-18x turns off while gaming


02 Oct 2013   #1

windows 7


toshiba satellite a500-18x turns off while gaming

I have a 4 year old toshiba satellite a500-18x and ever since i bought it i have never been able to play games (counter strike, call of duty etc) whilst plugged into the mains as it would just switch itself off. Sometimes i could play hours before it switches off other times just a few minutes. When i would play on the battery it would work fine but this obviously isnt very practical as battery doesnt last very long when gaming. But now i cant even do that as i have recently had to buy a new battery and now when i play on battery within a minute of playing it beeps and says low battery and then turns off saying 0% battery power but when i reboot it no longer says low battery and goes back to whatever percent it was on..

Please if anyone could help solve either issue (why it switches off when plugged in and why it says battery depleted when i play on battery and its fully charged) i would much appreciate it! thanks in advance!!

Vick

My System SpecsSystem Spec
.

03 Oct 2013   #2

Desk1 8 Pro / Desk2 7 Home Prem / Laptop 8.1 Pro all 64bit



Hiyya redcherry mate a few things first up run Speccy for a look at the temps mate Speccy - Download < from piriform.

Now I can tell you now the power adaptor is cactus or the power jack is broken more likely the former. Now if you can test the volts on the adaptor and then take out the battery and with the power adaptor plugged in see what the volts are at the battery connections.


Now being four years old if it has never been cleaned then I am guessing it is sort of quite dirty inside. But the temps will show up any irregularities.

Now lastly are you capable of working on the machine if need be? I can guide you through a bit if you are happy with that.
My System SpecsSystem Spec
03 Oct 2013   #3

windows 7



Hi! Thanks for the answer! I will run speccy and let you know what it says..

What do you mean by cactus? And how do I test the volts on the adapter?

It has never been cleaned no but that was something I am going to do this week anyway.

What do you mean by working on the machine? If you mean capable of taking it apart and things id rather not but if you mean working on it as in software and program wise then ye id be fine.

Vick
My System SpecsSystem Spec
.


03 Oct 2013   #4

Desk1 8 Pro / Desk2 7 Home Prem / Laptop 8.1 Pro all 64bit




Ok Vick cactus means - has had the Richard - eaten the biscuit - gone to God- dropped its bundle -thrown in the towel etc etc LOL!

Seriously all you need is a multimeter a digital one very cheap these daysand plug the adaptor in and set the meter to say 100v on its dial put the twoprobes usually red and a black one to one of the adaptors output lead terminalsone to the other and see what the reading is. If it measures up at about 19v(typically) it is ok then then do the same on the battery terminals in thebattery bay and see if the supply is coming through.

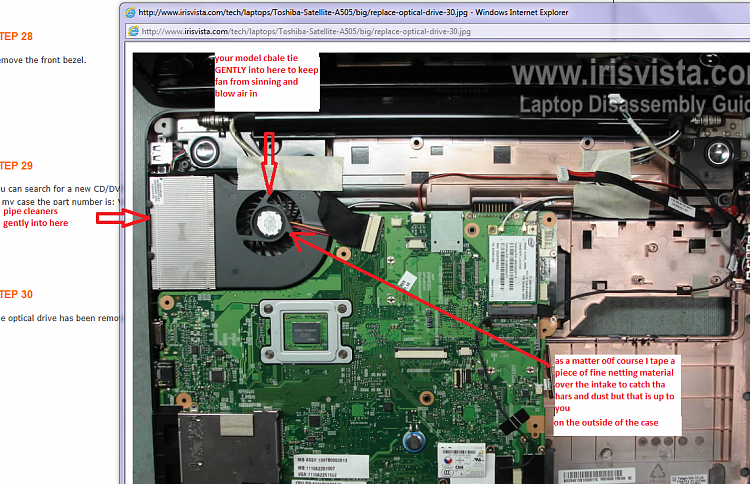

Well just one thing you can do is overturn the machine onto its lid - shinea very bright light into that air intake where the small fan is and look to seeif there is a lot of dust on the fan. Then keeping the light source there lookinto the exhaust vents on the side of the machine and see if any light iscoming through that small radiator. If there is very litle light coming throughthen the cooing "rad" is blocked and the high temps will cause theCPU to shut itself down.

Now as for cleaning you can suck from the fan aperture using a vacuumcleaner and / or blow it with a can of compressed air - cheap to buy . Cleaningthe rad you can use pipe cleaners to GENTLY push the dust lose form the outside.

but one word of WARNING ifyou blow the air into that fan opening please place say the end of a cable tieinto the blades first because the compressed air will spin the fan at more thanit s designed speed and could wreck the bearing !!

To take it apart is easy for me and at a shop expensive for you take a lookat this

http://www.irisvista.com/tech/laptops/Toshiba-Satellite-A505/removing-optical-drive-1.htm

In the pics the rad and heatsinks are from another model but most are fairly similar and typical

The CPU temp I should myself like to see below 5-C at least when you run Speccy.


Attached Thumbnails
toshiba satellite a500-18x turns off while gaming-fan.png   toshiba satellite a500-18x turns off while gaming-fan2.png
My System SpecsSystem Spec
03 Oct 2013   #5

Win8/8.1,Win7-U64, Vista U64, uncounted Linux distor's



Check this DIY. This laptop looks fairly easy to work on. Cleaning four years of dust should help with temps. Like Prof.Tinkerer Tink said, check the voltage from the power supply.
My System SpecsSystem Spec
03 Oct 2013   #6

windows 7



just ran speccy and cpu read this:


CPU
Intel Mobile Core 2 Duo P8700
Cores 2
Threads 2
Name Intel Mobile Core 2 Duo P8700
Code Name Penryn
Package Socket P (478)
Technology 45nm
Specification Intel Core2 Duo CPU P8700 @ 2.53GHz
Family 6
Extended Family 6
Model 7
Extended Model 17
Stepping A
Revision R0
Instructions MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, Intel 64, NX, VMX
Virtualization Supported, Enabled
Hyperthreading Not supported
Bus Speed 266,0 MHz
Rated Bus Speed 1064,1 MHz
Stock Core Speed 2533 MHz
Stock Bus Speed 266 MHz
Average Temperature 76 °C
Caches
L1 Data Cache Size 2 x 32 KBytes
L1 Instructions Cache Size 2 x 32 KBytes
L2 Unified Cache Size 3072 KBytes
Core 0
Core Speed 2527,3 MHz
Multiplier x 9,5
Bus Speed 266,0 MHz
Rated Bus Speed 1064,1 MHz
Temperature 69 °C
Thread 1
APIC ID 0
Core 1
Core Speed 2527,3 MHz
Multiplier x 9,5
Bus Speed 266,0 MHz
Rated Bus Speed 1064,1 MHz
Temperature 82 °C
Thread 1
APIC ID 1



temp is quite high isnt it?and i only just turned on the pc bout 15 mins ago..
My System SpecsSystem Spec
03 Oct 2013   #7

Desk1 8 Pro / Desk2 7 Home Prem / Laptop 8.1 Pro all 64bit



Quote   Quote: Originally Posted by madcratebuilder View Post
Check this DIY. This laptop looks fairly easy to work on. Cleaning four years of dust should help with temps. Like Prof.Tinkerer Tink said, check the voltage from the power supply.
Yep a site I use a fair bit too Mad and like you say the things are reasonably easy to work on and the first tim is always the worst LOL!! Plus there is usually a few Youtubes that will help but avoid the nine year olds mate they use Klingon for a language LOL!!

Now some TIPS Vick if you decide to give it a go I ALWAYS work on top of a spread out white bath towel taped to the hard surface top to stop those small screws from skidding onto the floor and the Abyss because you will invariably lose one or two if they do get on the floor. Plus get a reasonably strong magnet (the ones you get out of hard drives are really good) for magnetising the screwdrivers by stroking the blades along the magnet
My System SpecsSystem Spec
03 Oct 2013   #8

windows 7



What about the battery problem?the fact that it says its flat after a minute of playing and then when i reboot it says its full again? this only happens when i play. if i use the pc normally running on battery its fine. Do you think i should take battery back and get a new one?
My System SpecsSystem Spec
03 Oct 2013   #9

Desk1 8 Pro / Desk2 7 Home Prem / Laptop 8.1 Pro all 64bit



Mate th CPU is running too hot for my liking the Tcase is 105C and that does not give you a lot of leeway especially in a hot ambient temperature plus what you have I would be careful in giving the thing a hammering. ARK | Intel® Core

It would be interesting to see what the temp is with Core Temp Core Temp as we could see the cores differently.

The battery well if the charge is going in and the battery isn't going to full charge and the board is telling you different then maybe the board is going south.
My System SpecsSystem Spec
03 Oct 2013   #10

windows 7



with core temp its readin mid 60's for both core 0 and core 1.

The battery is going to full charge though and works fine. its only when i start playing that it beeps and turns off saying it has no battery and then when i turn back on it shows the charge again and i can carry on using it on battery just not to play.
My System SpecsSystem Spec
