Windows 7: No display during cold boots

05 Jun 2014   #11
ICIT2LOL

Desk1 7 Home Prem / Desk2 10 Pro / Main lap Asus ROG 10 Pro 2 laptop Toshiba 7 Pro Asus P2520 7 & 10



Yep sounds very much like a GPU problem mate.
The paper clip trick is only the power on - there is circuitry inside the PSU that tests the volts etc before the machine can be turned on by the Power_Good at pin 8 on the 24 pin plug. The system is only fired once that signal is reached at pin 8.
Otherwise the machine could be exposed to volts outside of any normal parameters as most of the rails have to run within a very tight +/- percentage of the stated volts.
The Power_Good voltage has to be above 2.4v and below 6v for the purpose of turning on the machine ie booting.


My System SpecsSystem Spec
.
05 Jun 2014   #12
matts6887

Windows 7 ultimate 64-bit



I too concur with Icit2lol; at this point its probably something having to do with your or gpu. Most graphics cards require a certain amount of voltage that is set voltage(parameters) in order for them to work properly which is also why you need to make sure your power supply is putting out the right amount of voltage as well.
My System SpecsSystem Spec
05 Jun 2014   #13
ICIT2LOL

Desk1 7 Home Prem / Desk2 10 Pro / Main lap Asus ROG 10 Pro 2 laptop Toshiba 7 Pro Asus P2520 7 & 10



As Matt says mate and you might try this to figure out what power PSU you need.

eXtreme Power Supply Calculator just enter the gear you have and it will spit out what power (wattage) PSU will be needed - minimum.
My System SpecsSystem Spec
.

05 Jun 2014   #14
easwar2641993

Desk: Win 7 SP1 HP 64BIT & Lap:Win 8.1 Pro 64BIT



Quote   Quote: Originally Posted by ICit2lol View Post
As Matt says mate and you might try this to figure out what power PSU you need.

eXtreme Power Supply Calculator just enter the gear you have and it will spit out what power (wattage) PSU will be needed - minimum.
I calculated the minimum power required and got 237W and recommended watt is 350W.
However, I got an Antec VP550W and I know its not a good PSU but still it should provide more power than the Corsair VS350W. If problems still exist, will report soon.
My System SpecsSystem Spec
06 Jun 2014   #15
ICIT2LOL

Desk1 7 Home Prem / Desk2 10 Pro / Main lap Asus ROG 10 Pro 2 laptop Toshiba 7 Pro Asus P2520 7 & 10



Hmm that doesn't sound like a large power consumption at all I would have thought it would have been closer to the max there was.

The Antec sounds a decent one to me although like I said I would have stuck to a Corsair but with 60 amps 12+v on tap you should have more than enough power to play with.

Anyway let us know how it goes.
My System SpecsSystem Spec
06 Jun 2014   #16
easwar2641993

Desk: Win 7 SP1 HP 64BIT & Lap:Win 8.1 Pro 64BIT



Quote   Quote: Originally Posted by ICit2lol View Post
Hmm that doesn't sound like a large power consumption at all I would have thought it would have been closer to the max there was.

The Antec sounds a decent one to me although like I said I would have stuck to a Corsair but with 60 amps 12+v on tap you should have more than enough power to play with.

Anyway let us know how it goes.
Performed a cold boot with Antec. So far no problems now. Preparing to RMA the Corsair one. Still I am waiting for 2-3 more days to confirm.
My System SpecsSystem Spec
07 Jun 2014   #17
ICIT2LOL

Desk1 7 Home Prem / Desk2 10 Pro / Main lap Asus ROG 10 Pro 2 laptop Toshiba 7 Pro Asus P2520 7 & 10



Ok mate I still think the readout you got before was low for what you have you might try a rerun with it and make sure everything is put in - some of it is pretty technical and some stuff it seems irrelevant I know but worth looking at.

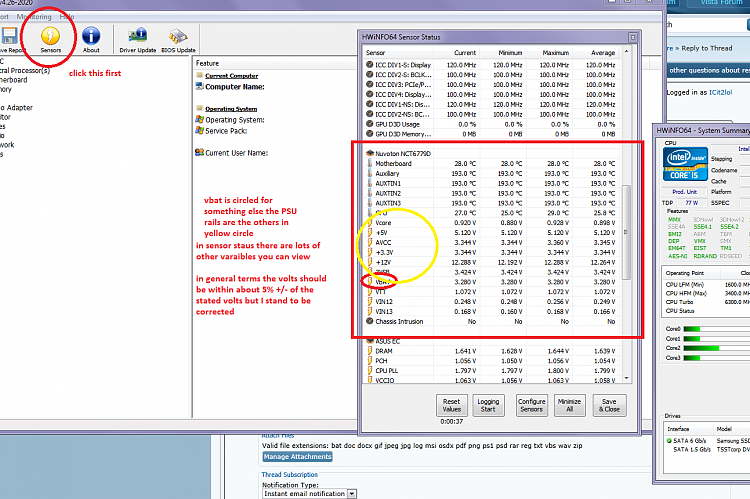

If you want to keep an eye on the volts from the new PSU and other stuff in the machine run HW Info HWiNFO, HWiNFO32/64 - Download < get the right bit version > close the right hand window and click on Sensors > scroll down the window that opens and check the volts.

The other devices can be viewed by opening them out in the left hand side window see my pics.


Attached Thumbnails
No display during cold boots-hw-info-volts.png   No display during cold boots-hw-info-specs.png
My System SpecsSystem Spec
07 Jun 2014   #18
easwar2641993

Desk: Win 7 SP1 HP 64BIT & Lap:Win 8.1 Pro 64BIT



Quote   Quote: Originally Posted by ICit2lol View Post
Ok mate I still think the readout you got before was low for what you have you might try a rerun with it and make sure everything is put in - some of it is pretty technical and some stuff it seems irrelevant I know but worth looking at.

If you want to keep an eye on the volts from the new PSU and other stuff in the machine run HW Info HWiNFO, HWiNFO32/64 - Download < get the right bit version > close the right hand window and click on Sensors > scroll down the window that opens and check the volts.

The other devices can be viewed by opening them out in the left hand side window see my pics.
Thanks for mentioning about that software. I have sent the Corsair PSU for RMA and now I am using Antec VP550W. So far , system performed more than 4-5 cold boots. no issues so far. Can I say that graphics card is working fine?
My System SpecsSystem Spec
07 Jun 2014   #19
ICIT2LOL

Desk1 7 Home Prem / Desk2 10 Pro / Main lap Asus ROG 10 Pro 2 laptop Toshiba 7 Pro Asus P2520 7 & 10



Well mate lets say so far so good and don't let us count out chickens yet but it is looking to be that way.

I don't know if you run any cleaners for the system or on call malware checks but these are worth keeping.

CCleaner - Download < download from piriform will keeps the temp files and rubbish at bay this is the tutorial for it CCleaner - Delete Junk Files just one thing before you run the cleaner make sure to Analyse > Options > Cookies - and any that you use for sites you need passwords for save to the right and liist by highlighting them then click the arrow right. When done go back to Cleaner and run it. (See pic)

Theses are there on call malware scanners I use and a lot of the others use

http://www.superantispyware.com/

http://www.malwarebytes.org/products/malwarebytes_free/

http://www.bleepingcomputer.com/download/adwcleaner/

ADW download frombleeping computer delete any rubbish found with the malware scans
the ADW not so much and you will need to download it each time you run it if you have to.

This is handy too Optimize Windows 7


Attached Thumbnails
No display during cold boots-cccookies.png
My System SpecsSystem Spec
28 Dec 2014   #20
bhaveshzzz

WINDOWS 8.1



I am facing the same prob as you bud!! Kindly tell me if changing PSU solved it premanently!
My System SpecsSystem Spec
