Windows 7: Disk structure is corrupt and unreadable

12 Jun 2014   #21
jumanji

Windows 7 Home Premium 32 bit



yep, click on testdisk_win.exe to run Test Disk and then follow the screen as indicated.

Read each screen.

And yes, you have to navigate with up/down Left/right arrow keys and use Enter key or any other key indicated in the screen. At anytime you can quit Test Disk by pressing Q repeatedly


If you have any doubts post the screenshot as you did above.


My System SpecsSystem Spec
.
12 Jun 2014   #22
shokan2

Windows 7 Pro 64bit



Not sure what to do at last screen. And, will I need a separate empty volume for the result?


Attached Images

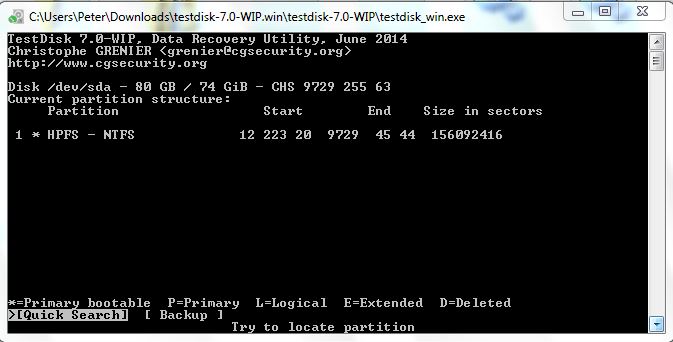

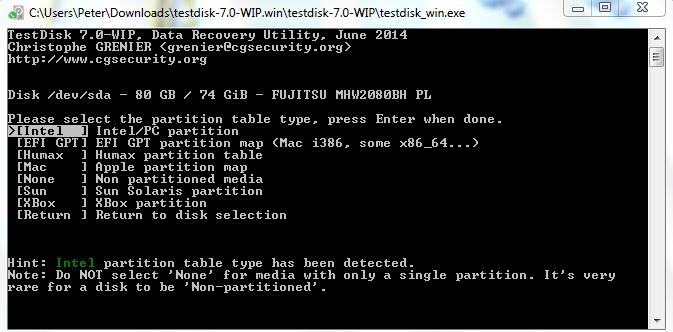

Disk structure is corrupt and unreadable-capturetd1.jpg Disk structure is corrupt and unreadable-capturetd2.jpg Disk structure is corrupt and unreadable-capturetd3.jpg Disk structure is corrupt and unreadable-capturetd4.jpg Disk structure is corrupt and unreadable-capturetd5.jpg Disk structure is corrupt and unreadable-capturetd6.jpg Disk structure is corrupt and unreadable-capturetd7.jpg Disk structure is corrupt and unreadable-capturetd8.jpg
My System SpecsSystem Spec
12 Jun 2014   #23
jumanji

Windows 7 Home Premium 32 bit



No you have selected the wrong drive. Quit Test Disk. Press Q Q Q Q or X on the window.

Then remove all other external drives except your problem drive.

Run Test disk. No log Enter

You will see two drives 1. Your system drive and 2. your problem drive.

You should be able to differentiate by reading the capacity. I think your system drive is some 80GB

Select your 1TB problem drive by arrow keys and proceed.
My System SpecsSystem Spec
.

12 Jun 2014   #24
shokan2

Windows 7 Pro 64bit



Right. Saw that, and here is current.


Attached Images

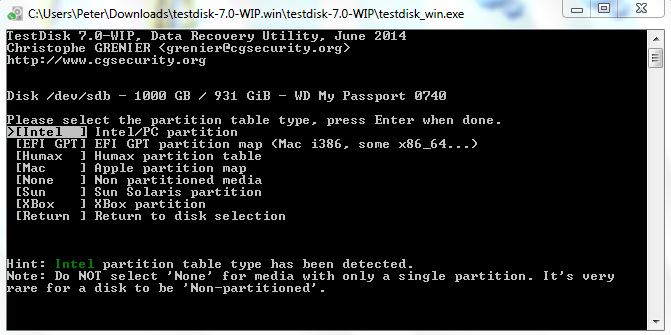

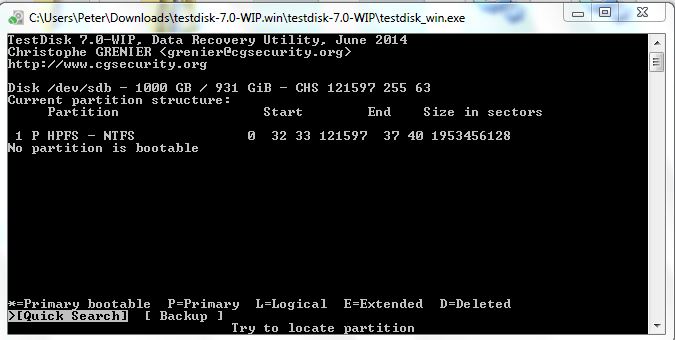

Disk structure is corrupt and unreadable-capturetd1a.jpg Disk structure is corrupt and unreadable-capturetd2a.jpg Disk structure is corrupt and unreadable-capturetd3a.jpg Disk structure is corrupt and unreadable-capturetd4a.jpg Disk structure is corrupt and unreadable-capturetd5a.jpg
My System SpecsSystem Spec
12 Jun 2014   #25
shokan2

Windows 7 Pro 64bit



Quitting and starting again. Saw your note about removing other drives.
My System SpecsSystem Spec
12 Jun 2014   #26
jumanji

Windows 7 Home Premium 32 bit



QUit Quit Quit . You still didn't remove the other external drives. It is a cardinal rule to have only your problem drive connected so that there is no possibility of selecting a wrong drive.

So safely Remove all other external drives.

Confirm with Windows Disk Management that the problem drive is the one connected. You seem to have many 1 TB drives and we don't want to make any mistake. A wrong move in Test disk will cost you dear.

So with only your problem drive connected run TestDisk. With the arrow key select your 1 TB drive.

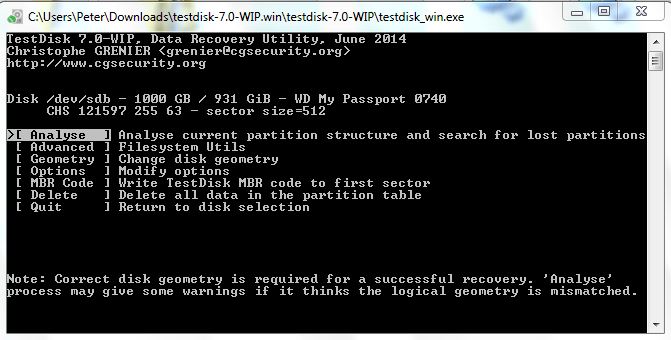

In the fourth screen by default Analyse is highlighted. But we do not want to analyse. With the arrow key go one step down and select Advanced File Utilities.

If you think a screen by screen guidance is required we can do it. I am on station. Post each screen and then follow the instructions.
My System SpecsSystem Spec
12 Jun 2014   #27
shokan2

Windows 7 Pro 64bit



After Advanced File Util I'm at this screen. Saw note about other drives, done.


Attached Images
Disk structure is corrupt and unreadable-capture.jpg
My System SpecsSystem Spec
12 Jun 2014   #28
jumanji

Windows 7 Home Premium 32 bit



Have you made sure that the drive connected is your problem drive by looking at it in Windows Disk Management?

Yes /no
My System SpecsSystem Spec
12 Jun 2014   #29
shokan2

Windows 7 Pro 64bit



Quote   Quote: Originally Posted by jumanji View Post
Have you made sure that the drive connected is your problem drive by looking at it in Windows Disk Management?

Yes /no
Yes, it is.
My System SpecsSystem Spec
12 Jun 2014   #30
jumanji

Windows 7 Home Premium 32 bit



OK, good.

Boot is highlighted. In the normal course we will press Enter to go to the next screen.

But I am just curious. So with the right arrow key move to List and press enter. We will see whether it shows all your files.

Post that screen.
My System SpecsSystem Spec
