Windows 7: Seagate 2TB Hard Drive not responding, stops programs from working

01 Jul 2014   #31
jumanji

Windows 7 Home Premium 32 bit



The OP indeed bought a drive formatted with advanced format technology, that is one with 4K sector size.

But should it really matter? And for that matter should it matter even if it is a 3TB drive with GPT?

I think we are adopting a very safe procedure while we recommend that it should have the same disk structure to avoid any unforeseen problems arising out of dealing with something different in anyway.

In my thinking, since we are doing a sector by sector cloning, the disk on which it is cloned is going to take the same structure as the faulty drive. If it is an MBR drive that will also turn into an MBR drive.If it is a 2TB partition, the same 2TB partition table will be cloned leaving the rest of the space as unallocated. But again I may be missing something that can make the above theory go wrong. So unless we experiment and check we shall still proceed with the conventional wisdom of not entertaining any unforeseen problems.

So let the OP format the new drive as a MBR drive with 520 byte sector size and start sector by sector cloning. The only requirement then will be the available number of sectors on the new drive is more than that of the faulty drive. Is the image you suggest compressed? Otherwise it will also be of the same size.

Now the OP has already recovered whatever he can.We are only trying to see if he can better with whatever bad sector recovery takes place with ddrescue. And definitely better data recovery is possible on a good drive.

So I am OK with whatever you suggest to the OP. Practicing hands take precedence over a non-practitioner who can only theorize. ( I can experiment and come to conclusions but right now I have no time for it. I just want to sleep for some days passing the buck onto you.)


My System SpecsSystem Spec
.
01 Jul 2014   #32
Anshad Edavana

Windows 7 Ultimate x64



@Jumanji

I am decided to go with a sector by sector clone first. "fdisk" seems to detect a valid partition on the new drive starting at sector 63 ( from the aborted cloning attempt ). I think the internal disk might be 512 byte sector based and it is the USB-SATA bridge which is doing the 4096 to 512 conversion.

Let's see how the outcome of cloning first. Taking an image requires a disk with larger capacity than the source.
My System SpecsSystem Spec
01 Jul 2014   #33
Questionerer

Windows 7 Ultimate 32-bit



Quote:
Why did you halted "ddrescue" ?.
Since I could resume later, I thought I'd try and interrupt it and do something else at the time.

Quote:
Which is the Linux distro you are using ?. Are you booting it from the 500 GB HDD or DVD/USB ?.
I'm using Linux Mint 15 Olivia 32-bit MATE I think. Boot from a partition on the 500GB HDD (I installed the linux mint onto the partition).

So should I continue with

Quote:
1. Connect the new HDD to a Windows machine and use "Partition Wizard" to delete any existing partition and create a single NTFS partition spanning from start to end.

2. Connect both old and new disk to the Linux machine and use "ddrescue" to capture a full image of the failing disk and save it to the new disk ( instead of cloning). We can work data recovery on this saved image.
OR switch to

Quote:
1. Connect both source and destination disk at the same time and use "fdisk -l" to identify which one is old and which one is new.

2. Assuming source disk is /dev/sdc and destination disk is /dev/sdd , type the below command.

ddrescue -d -f -r3 /dev/sdc /dev/sdd recovery.log
My System SpecsSystem Spec
.

01 Jul 2014   #34
Anshad Edavana

Windows 7 Ultimate x64



I would suggest starting the cloning process from scratch. The command line i posted will use direct disk to disk copying ( avoiding kernel's cache ) and is what suggested by "ddrescue" experts. It is better to change the log file's name to something else.

ddrescue -d -f -r3 /dev/sdc /dev/sdd recovery2.log
My System SpecsSystem Spec
03 Jul 2014   #35
Questionerer

Windows 7 Ultimate 32-bit



I think the ddrescue has finished now. It said that the disk has no space left and then stopped.

What do I do now?
My System SpecsSystem Spec
04 Jul 2014   #36
Anshad Edavana

Windows 7 Ultimate x64



Thais is bad news. It means our fear came true - source and destination disk geometries are different so direct cloning is not possible .

On the positive side, the disk media is not entirely trashed so there is still chance for successful file recovery . Do you remember the error size shown by "DDrescue" ? ( a screenshot will be better ).

If you boot in to Windows and connect the failing disk, is Windows detect a NTFS file system or just a RAW disk ?. It will be helpful if you can post a snapshot of "Disk Management" as per Disk Management - Post a Screen Capture Image
My System SpecsSystem Spec
04 Jul 2014   #37
Questionerer

Windows 7 Ultimate 32-bit



Not sure what you mean by error size. Ddrescue reached 2000gb which is the size of both partitions and then said there was no space left and stopped. I already closed ddrescue so cant get the screenshot. Dont know if its possible to do the ddrescue again and have it resume at 2000gb (to see error).

As for the failing disk, I assume it will not be detected by windows and stall everything from working as it did in the past. There has been no changes made to the failing disk, after all.
My System SpecsSystem Spec
04 Jul 2014   #38
Anshad Edavana

Windows 7 Ultimate x64



Quote:
I already closed ddrescue so cant get the screenshot. Dont know if its possible to do the ddrescue again and have it resume at 2000gb (to see error).
This is where the log file came handy. If you entered the command ddrescue -d -f -r3 /dev/sdc /dev/sdd recovery2.log , you will find a file named recovery2.log inside the "Home" directory. Please copy that file and attach with next reply. You may need to zip it before attaching.

Quote:
As for the failing disk, I assume it will not be detected by windows and stall everything from working as it did in the past. There has been no changes made to the failing disk, after all.
Since Linux is not hanging, let's examine the disks health from Mint. First remove the new disk and then install "GsmartControl" from the below link.

gsmartcontrol - Linux Mint Community

Open the tool and select your failing HDD from the selection screen.



Navigate to the "Attributes" tab and press the "Save AS" button to save the report. Then attach that report too with next reply.



Although the cloning operation is incomplete and disk geometry is not correct, there is still a chance for recovering files from the clone. After copying the log file and SMART report, boot in to Windows and connect the new HDD. Open "Disk management" and check whether it detects a valid file system. Most probably the disk will be detected as RAW due to incomplete cloning/disk geometry issues. However try running CHKDSK on the RAW partition and if we are lucky, Windows may be able to repair the file system.
My System SpecsSystem Spec
04 Jul 2014   #39
Questionerer

Windows 7 Ultimate 32-bit



Quote:
This is where the log file came handy. If you entered the command ddrescue -d -f -r3 /dev/sdc /dev/sdd recovery2.log , you will find a file named recovery2.log inside the "Home" directory. Please copy that file and attach with next reply. You may need to zip it before attaching.
Will the it be in the "Home" directory of my Linux Mint?

The failing disk is now working on Windows all of a sudden. Although, the only files I can see are the ones that were visible in Linux. So, the disk works, but the files are still missing from view.

Here is the snapshot from Disk Management (for the failing disk).

Seagate 2TB Hard Drive not responding, stops programs from working-capture.png

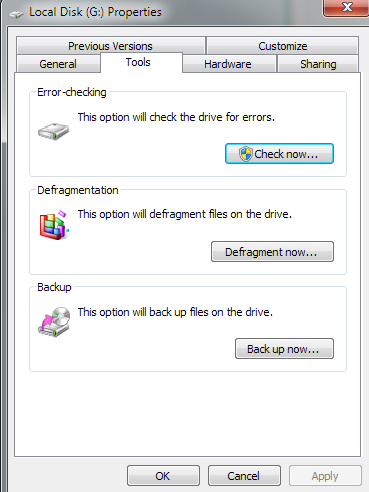

The new disk is indeed "RAW" in Disk Management. Is the CHKDSK the "Error-checking" tool accessible from "properties"?

Seagate 2TB Hard Drive not responding, stops programs from working-capture2.png

Here is the report for failing HDD

ST2000DM001-9YN164_W2F02AB9_2014-07-04.txt


My System SpecsSystem Spec
04 Jul 2014   #40
Anshad Edavana

Windows 7 Ultimate x64



Quote:
Will the it be in the "Home" directory of my Linux Mint?
By default the current working directory of a Linux console will be the user's Home directory. So probably the log will will be there.

The good news is SMART report indicates the disk structure is not so bad. There is indeed bad sectors but it is possible to scan for lost files with the help of tools which supports failing disks. Unfortunately there is no free utilities available which can reconstruct damaged MFT. Probably DMDE will be able to reconstruct the original file and folder structure and it is not an expensive tool either. I will post step by step instructions later - currently kind of busy.
My System SpecsSystem Spec
