Windows 7: Disk unknown, not initialized, and not showing partition

21 Jun 2014   #1
glecerb

Windows 7 Enterprise 64bit


Disk unknown, not initialized, and not showing partition

I am experiencing the same issue as with jenny123 but with an additional problem. I am troubleshooting a Seagate FreeAgent GoFlex 1TB external hard drive for my buddy. It is previously working but one day, it is not detected anymore by any device. It is found in the Disk Management however, it is listed as Unknown, Not Initialized, and not showing the partition as shown in the screenshot.
Disk unknown, not initialized, and not showing partition-computer-mgt.png

When I try to change it from Offline to Online, I am encountering the error:
"Virtual Disk Manager: The system cannot find the file specified"

I also used the DISKPART in cmd but it is not showing Disk 1 as shown below.
Disk unknown, not initialized, and not showing partition-diskpartlist.png

The external hard drive is found in disk drives but it is not showing it's model name.
Disk unknown, not initialized, and not showing partition-diskdrives.png

I tried all the recommended software (partition wizard, testdisk, icare) but still no luck. I also tried searching online for an answer but there's no closure to their issues as well. Hope someone can help on this as he need a) the drive and b) recover the files in the external drive. Thanks!

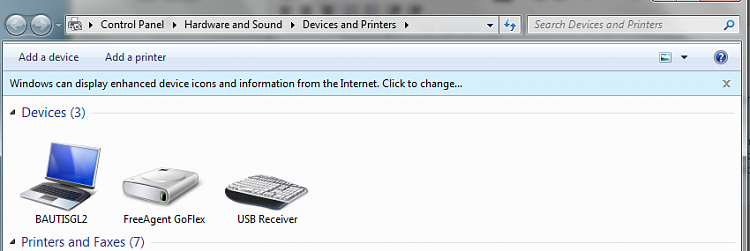

EDIT: The drive can be seen in the Devices and Printers as shown below.
Disk unknown, not initialized, and not showing partition-dnp.png




My System SpecsSystem Spec
.
21 Jun 2014   #2
Anshad Edavana

Windows 7 Ultimate x64



Hi

For any serious troubleshooting, diagnostics or recovery attempt, you should always connect an HDD to a direct SATA port. Usually you can easily remove the header of any Seagate Golex drive and then connect it to an internal SATA port.



Let us know what "Disk Management" reports when you connect the drive directly.
My System SpecsSystem Spec
22 Jun 2014   #3
glecerb

Windows 7 Enterprise 64bit



Hi Anshad,

Thanks for that but are there other troubleshooting I need to perform before resorting to opening the hard drive?
My System SpecsSystem Spec
.

22 Jun 2014   #4
Anshad Edavana

Windows 7 Ultimate x64



Quote:
Thanks for that but are there other troubleshooting I need to perform before resorting to opening the hard drive?
Since the disk is not even detected in DISKPART, there is only three possibilities.

1. A faulty data cable.

Try another cable if one available.

2. Faulty interface electronics.

If the SATA to USB conversion electronics failed, the disk won't be detected. Directly connecting to a SATA port will let us know whether it is the case.

3. HDD is failed.

This is the worst case scenario. Only professional data recovery can help. Directly connecting to an internal port will let us using various diagnostic tools against the disk in question.
My System SpecsSystem Spec
22 Jun 2014   #5
glecerb

Windows 7 Enterprise 64bit



I've already tried #1 and still the same issue.

For option 2 and 3, I'll try to seek a seagate's customer service as I don't have an extra system (desktop/laptop) to play but hopefully, #2 will solve the issue.

I will get back with an update.
My System SpecsSystem Spec
