Windows 7: BCD problem

03 Aug 2009   #11
Snufffed



Quote   Quote: Originally Posted by Frostbite View Post
I take it that's from booting the recovery DVD? I would still go with running


bcdboot C:\windows /s C:


The only other thing you may have to do after that is make C:\ the active partition if its not already.
Quote:
C:\Windows\system32>bcdboot C:\windows /s C:
Boot files successfully created.
C:\Windows\system32>
--------------------------------------
will reboot and be right back.-ok back now I have a FAKE CD installed.
----------------------------------------
Microsoft Windows [Version 6.1.7600]
Copyright (c) 2009 Microsoft Corporation. All rights reserved.
C:\Windows\system32>bcdedit
Windows Boot Manager
--------------------
identifier {bootmgr}
device partition=\Device\HarddiskVolume3
path \bootmgr
description Windows Boot Manager
locale en-US
inherit {globalsettings}
default {current}
resumeobject {7800cce0-7c49-11de-bc70-801ac4a4f209}
displayorder {current}
{7800cce5-7c49-11de-bc70-801ac4a4f209}
toolsdisplayorder {memdiag}
timeout 5
Windows Boot Loader
-------------------
identifier {current}
device partition=C:
path \Windows\system32\winload.exe
description Windows 7 Ultimate
locale en-US
osdevice partition=C:
systemroot \Windows
resumeobject {07c6c1b8-7ec8-11de-8a31-806e6f6e6963}
Windows Boot Loader
-------------------
identifier {7800cce5-7c49-11de-bc70-801ac4a4f209}
device ramdisk=[C:]\Recovery\7800cce2-7c49-11de-bc70-801ac4
09\Winre.wim,{7800cce6-7c49-11de-bc70-801ac4a4f209}
path \windows\system32\winload.exe
description Windows Recovery Environment (recovered)
locale
osdevice ramdisk=[C:]\Recovery\7800cce2-7c49-11de-bc70-801ac4
09\Winre.wim,{7800cce6-7c49-11de-bc70-801ac4a4f209}
systemroot \windows
winpe Yes
C:\Windows\system32>
some how this D:\ which I can not find in diskmgnt, must be the "
device partition=\Device\HarddiskVolume3".
unhide everything... I can not find any bcd entries like I did when it was N:
if you click d: it says place a CD... but there is no way... tested all CD-DVD drives and it does not accept for D:
------------------------
No I'm boot w/o a recovery DVD, I have only 1 OS installed.
I have two options on boot. Windows 7 Ultimate and #2 is Recovery


My System SpecsSystem Spec
.
03 Aug 2009   #12
Frostbite



What did you do to get ?

Quote:
Windows Boot Manager
--------------------
identifier {bootmgr}
device partition=\Device\HarddiskVolume3
path \bootmgr
description Windows Boot Manager
locale en-US
inherit {globalsettings}
default {current}
resumeobject {7800cce0-7c49-11de-bc70-801ac4a4f209}
displayorder {current}
{7800ccd4-7c49-11de-bc70-801ac4a4f209}
{7800cce5-7c49-11de-bc70-801ac4a4f209}
toolsdisplayorder {memdiag}
timeout 5
also what did you do to add the identifier {7800ccd4-7c49-11de-bc70-801ac4a4f209} ?


Quote:
-------------------
identifier {7800ccd4-7c49-11de-bc70-801ac4a4f209}
device ramdisk=[J:]\Recovery\2a70336a-5c5d-11de-ba27-00138ff071
3b\Winre.wim,{7800ccd5-7c49-11de-bc70-801ac4a4f209}
path \windows\system32\winload.exe
description Windows Recovery Environment (recovered)
locale
osdevice ramdisk=[J:]\Recovery\2a70336a-5c5d-11de-ba27-00138ff071
3b\Winre.wim,{7800ccd5-7c49-11de-bc70-801ac4a4f209}
systemroot \windows
winpe Yes

Could you post a screenshot of your disk configuration from Disk Management please. Also can you go into DISKPART from a command prompt and type:

DISKPART
then 'list volume'
My System SpecsSystem Spec
03 Aug 2009   #13
Snufffed



Quote   Quote: Originally Posted by Frostbite View Post
What did you do to get ?



also what did you do to add the identifier {7800ccd4-7c49-11de-bc70-801ac4a4f209} ?





Could you post a screenshot of your disk configuration from Disk Management please. Also can you go into DISKPART from a command prompt and type:

DISKPART
then 'list volume'
---------------------------------------------------------------------
DISKPART> list volume
Volume ### Ltr Label Fs Type Size Status Info
---------- --- ----------- ----- ---------- ------- --------- --------
Volume 0 K DVD-ROM 0 B No Media
Volume 1 L DVD-ROM 0 B No Media
Volume 2 C Volume-1 NTFS Partition 48 GB Healthy Boot
Volume 3 G Volume-5 NTFS Partition 58 GB Healthy
Volume 4 H Volume-6 NTFS Partition 78 GB Healthy
Volume 5 I Volume-7 NTFS Partition 24 GB Healthy
Volume 6 J Volume-8 NTFS Partition 34 GB Healthy
Volume 7 M Volume-2 NTFS Partition 85 GB Healthy
Volume 8 E Volume-3 NTFS Partition 38 GB Healthy
Volume 9 F Volume-4 NTFS Partition 36 GB Healthy
Volume 10 P Removable 0 B No Media
DISKPART>
--------------------------
I can not make a D:\ it is used by the invisible CD Drive.

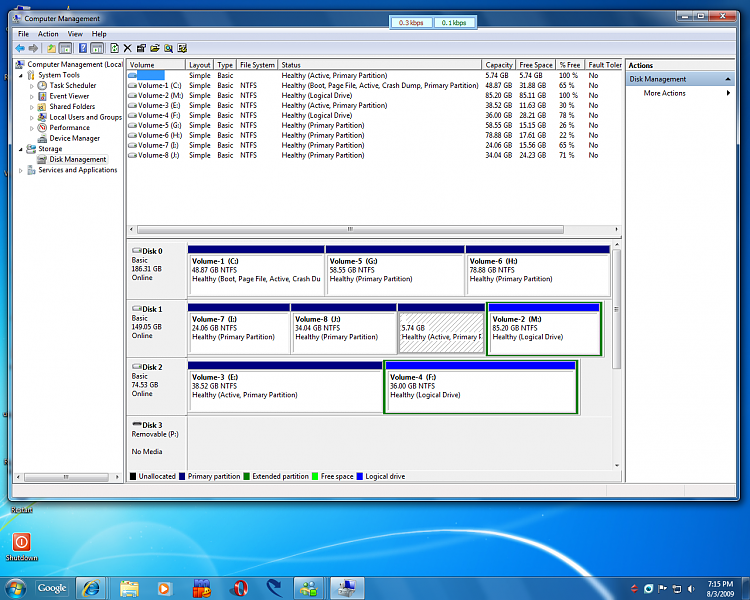

Attached Thumbnails
My System SpecsSystem Spec
.

03 Aug 2009   #14
Snufffed



also what did you do to add the identifier {7800ccd4-7c49-11de-bc70-801ac4a4f209} ?
When I tested that to see if it would BOOT - it failed. due to some missing stuff. so i deleted it using Vista3.2boot pro
My System SpecsSystem Spec
03 Aug 2009   #15
SIW2

Microsoft Community Contributor Award Recipient

Vista x64 / 7 X64



Hi Snuffy,

You will notice the 7 partition is not marked Active.

The 5.74gb partition is the one on that HD marked active.


That {7800ccd4-7c49-11de-bc70-801ac4a4f209} is the winre recovery that should start up automatically if needed ( it only works if bootmgr is functioning properly ).

It is not normally displayed by bcdedit command, only by the addition of /enum all /v.

In your case, when you ran the repair from the dvd, it put the entry back in - this time it shows up with other (recovered) entries at the regular bcdedit command.

You must have the 7 partition marked Active for the repairs I posted earler to be effective.

In Disk Management, right click the 7 partition and select Mark as Active.

If the copying of bootmgr and the Boot folder from F to C and the bcdedit /export C:\Boot\bcd were successful - the only thing you need to do now is mark the 7 partition Active.

Give it a try and see.
My System SpecsSystem Spec
03 Aug 2009   #16
Snufffed



Drive C: is marked Active
that is where Win7 is located.
My System SpecsSystem Spec
03 Aug 2009   #17
SIW2

Microsoft Community Contributor Award Recipient

Vista x64 / 7 X64



Ah, yes - the 7 on the other partition fooled me.

That is curious - if the 7 partition is Active, and it is the first HD in Bios boot order ( you unplugged the others to make sure ) - hard to say why it is not now the system partition.

What happens if you try to boot with only the Disk 0 attached?
My System SpecsSystem Spec
03 Aug 2009   #18
Snufffed



If i unplug Disk 1 then I can not boot. so should I unplug and then ?
try Restore w/ DVD?

I've done so many thing in the past week to try and fix this... I forget all that i have tried.

Disk 1 the small partition does not want to be deleted... I'd like to move into a nother part.
not sure when that showed up.
My System SpecsSystem Spec
03 Aug 2009   #19
SIW2

Microsoft Community Contributor Award Recipient

Vista x64 / 7 X64



The dvd should be able to fix it - if that is the only HD attached.

Startup repair should do the job.

Give it a go.

Did you detach the other HD'S when you tried startup repair before?
My System SpecsSystem Spec
03 Aug 2009   #20
Snufffed



Will unplug all other HDDs only 1 HDD Disk 0 and 2 DVD's.
usually takes about 1hour to get back. unless restore works.
My System SpecsSystem Spec
