Windows 7: Windows 7 200MB Partition

28 Nov 2008   #1
Bare Foot Kid
Microsoft MVP

W 7 64-bit Ultimate


Windows 7 200MB Partition

Hello all....

I wanted to start a dialog about this but I didn't want to do it in other people's threads. Not to mention; having one place to figure this out.

Quote   Quote: Originally Posted by smarteyeball
Seven creates a 200MB partition at the start of drive for the boot data. (If it's a fresh drive, with no other OS installed / connected)

Posted Here
I would like to know if this will affect how many "Primary Partition(s)" as opposed to "Extended Partition / Logical Drive(s)" are created in the normal course of creating partitions / drives. As I understand it; only three "Primary Partitions" can be created on any one HDD; any other partitions created must be an "Extended Partition"; which can't host the active boot files of the OS. This of course; in turn, limits the amount of drives that can host an OS on a HDD.

Where all this is leading: If Windows 7 creates this 200MB Partition as the first partition on the HDD; then that will limit how many (to two) partitions that are left to host an OS on that HDD. Now I know that few people dual boot; let alone multi boot on a single HDD.

I just wanted to hear what thoughts y'all have about this.


Later Ted


My System SpecsSystem Spec
.

28 Nov 2008   #2
x3haloed

Windows Vista x64



It's actually four primary partitions, but yeah.

multi-booting is just silly in my opinion. Plus who needs to dual-boot with Windows 7 on a single HDD, when you can just boot from a VHD?
My System SpecsSystem Spec
28 Nov 2008   #3
smarteyeball




Example pics:


Name:  contains.JPG
Views: 4512
Size:  20.7 KB


My System SpecsSystem Spec
.


28 Nov 2008   #4
Bare Foot Kid
Microsoft MVP

W 7 64-bit Ultimate



Quote   Quote: Originally Posted by x3haloed View Post
It's actually four primary partitions.
Hello x3haloed.

Not according to this.

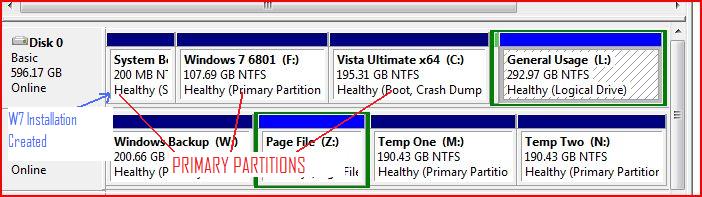

Name:  Recovery_Partition.JPG
Views: 211
Size:  33.1 KB


Later Ted


My System SpecsSystem Spec
28 Nov 2008   #5
x3haloed

Windows Vista x64



lol, I don't see how that picture proves anything.


I'll post a VHD with 4 primary partitions if you like :P
My System SpecsSystem Spec
28 Nov 2008   #6
doubleblack

Windows 7 x86



This pissed me off, because now I can't use TrueCrypt
My System SpecsSystem Spec
28 Nov 2008   #7
x3haloed

Windows Vista x64



Quote   Quote: Originally Posted by doubleblack View Post
This pissed me off, because now I can't use TrueCrypt
why not?
My System SpecsSystem Spec
28 Nov 2008   #8
doubleblack

Windows 7 x86



TrueCrypt refuses to install WDE on any drive unless the Windows partition is the one that it boots from. Since Windows 7 boots from this 200MB partition, I cannot do it
My System SpecsSystem Spec
28 Nov 2008   #9
x3haloed

Windows Vista x64



Quote   Quote: Originally Posted by doubleblack View Post
TrueCrypt refuses to install WDE on any drive unless the Windows partition is the one that it boots from. Since Windows 7 boots from this 200MB partition, I cannot do it
That's unfortunate. I would guess that they will update it to work with the new partition scheme at some point
My System SpecsSystem Spec
28 Nov 2008   #10
johngalt



Quote   Quote: Originally Posted by x3haloed View Post
It's actually four primary partitions, but yeah.

multi-booting is just silly in my opinion. Plus who needs to dual-boot with Windows 7 on a single HDD, when you can just boot from a VHD?
Yeah, multibooting is silly, especially when dealing with a *pre-BETA* OS - so if the OS goes south, you can still boot your VHDs, right?

feh. Nice try. Remember it has to be a Virtual PC created VHD - Steve has been trying to get VMs from others to work and thus far ain't getting too far. I am pretty positive that VBox images don't work at the moment....

Quote   Quote: Originally Posted by Bare Foot Kid View Post
Hello x3haloed.

Not according to this.

Attachment 1111


Later Ted
Windows only allows 4 primary partitions *or* 3 primary partitions and 1 Extended partition. Logical partitions are created inside of the extended partitions and are numbered 5+. Although the extended partition is not a physically accessible partition in and of itself, it is still (unofficially) using one of the 4 primary partition numbers.

This is the way it has always been - even in *nix. Create 4 primary partitions, or create 3 primary, 1 extended, and all subsequent logical partitions inside the extended.


Quote   Quote: Originally Posted by x3haloed View Post
lol, I don't see how that picture proves anything.

I'll post a VHD with 4 primary partitions if you like :P
Please do - and then create an extended partition *after* having 4 primary partitions.

And before you run screaming back to me about you were only talking about 4 primary partitions, please *re-read* what Ted wrote in the very first post.
My System SpecsSystem Spec
