Windows 7: Multiple problems with Ethernet connection

15 Oct 2013   #11
Kaktussoft

Microsoft Community Contributor Award Recipient

Microsoft Windows 7 Home Premium 64-bits 7601 Multiprocessor Free Service Pack 1



Download and burn ubuntu live cd. Boot from it. Can you run firefox there and browse internet?
How to Set up a Network in Ubuntu: 6 Steps (with Pictures) do you see eth0 and has it been set to DHCP?

If you can browse internet... NIC is fine. Otherwise it can still be a driver problem


My System SpecsSystem Spec
.
15 Oct 2013   #12
Kaktussoft

Microsoft Community Contributor Award Recipient

Microsoft Windows 7 Home Premium 64-bits 7601 Multiprocessor Free Service Pack 1



Quote   Quote: Originally Posted by un2978 View Post
I made sure to disable the wireless adapter on the laptop before I connected. The taskbar icon indicated that connection was made through ethernet.

As for the device manager screenshot - is that what you want? (attachment)
Screenshot looks fine. Ubuntu has drivers for most realtek NIC's out-of-the-box
My System SpecsSystem Spec
15 Oct 2013   #13
un2978

Windows 7 Home Premium 64-bit



I'm on Ubuntu Live right now. Is there a way to configure NIC settings? It was trying to connect, but fails and says that network cable is unplugged, then tries again in a few seconds. I turned off auto-connect and used the wireless instead. It's similar to what I have when I try anything above 10Mbps Full Duplex in Windows.

On a side note, trying to get onto Seven Forums with Firefox on Ubuntu is at least 3 times slower. Youtube and reddit are fine though.
My System SpecsSystem Spec
.

16 Oct 2013   #14
Kaktussoft

Microsoft Community Contributor Award Recipient

Microsoft Windows 7 Home Premium 64-bits 7601 Multiprocessor Free Service Pack 1



How to Set up a Network in Ubuntu: 6 Steps (with Pictures)
In ubuntu keep eth0 setting to DHCP and reboot.
I want output of step 6 (only eth0)
My System SpecsSystem Spec
16 Oct 2013   #15
un2978

Windows 7 Home Premium 64-bit



The problem is that I can't connect through Ethernet on Ubuntu. It keeps on telling me that it's disconnected, but it continues to attempt connecting. The only way I bypassed this problem in Windows was to set Speed & Duplex to 10Mbps Full Duplex, which apparently I can't do in Ubuntu Live.

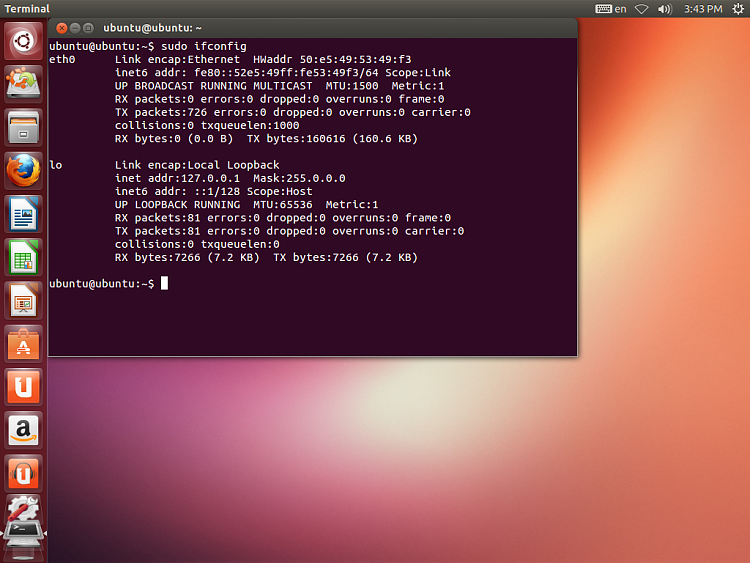

Either way, I had the eth0's IPv4 settings screenshotted, and did the ifconfig anyway without a successful connection. I did both of these before I activated Wi-fi in Ubuntu.


Attached Thumbnails
Multiple problems with Ethernet connection-screenshot-2013-10-16-15-41-53.png   Multiple problems with Ethernet connection-screenshot-2013-10-16-15-43-46.png
My System SpecsSystem Spec
16 Oct 2013   #16
Kaktussoft

Microsoft Community Contributor Award Recipient

Microsoft Windows 7 Home Premium 64-bits 7601 Multiprocessor Free Service Pack 1



What you proved so far:
  • win7 and ubuntu (on same machine) see ethernet NIC. Both fail to connect properly. So NOT a win7 driver problem.
  • Same network cable attached (still attached to same router port) to other computer works perfectly. Pleas confirm please.
Conclusion not a router problem, not a software problem. Problem is most likely the NIC. Replace NIC. Or if it's a laptop and difficult to replace..... disable it and buy an USB NIC and plug it in. Costs about $10
My System SpecsSystem Spec
16 Oct 2013   #17
un2978

Windows 7 Home Premium 64-bit



I previously connected to another computer (a laptop) to test the Ethernet cable as you told me (I disabled the wireless beforehand). It worked fine, and I could browse websites with little trouble. If needed, I'll do it again and post screenshots, along with a ping test from command prompt.

Looking for an NIC in my local computer store now...
My System SpecsSystem Spec
16 Oct 2013   #18
Kaktussoft

Microsoft Community Contributor Award Recipient

Microsoft Windows 7 Home Premium 64-bits 7601 Multiprocessor Free Service Pack 1



Quote   Quote: Originally Posted by un2978 View Post
I previously connected to another computer (a laptop) to test the Ethernet cable as you told me (I disabled the wireless beforehand). It worked fine, and I could browse websites with little trouble. If needed, I'll do it again and post screenshots, along with a ping test from command prompt.

Looking for an NIC in my local computer store now...
I can't help you with that... post results after replacing NIC.

Best thing to do is uninstall NIC driver just before replacing NIC
My System SpecsSystem Spec
18 Oct 2013   #19
un2978

Windows 7 Home Premium 64-bit



Hi, I'm back!

Bought a NIC for $15 CAD, works like a charm. Here's ipconfig from Window Command Prompt:
Code:
Windows IP Configuration

   Host Name . . . . . . . . . . . . : Nanson-PC
   Primary Dns Suffix  . . . . . . . :
   Node Type . . . . . . . . . . . . : Hybrid
   IP Routing Enabled. . . . . . . . : No
   WINS Proxy Enabled. . . . . . . . : No

Ethernet adapter Local Area Connection:

   Connection-specific DNS Suffix  . :
   Description . . . . . . . . . . . : Realtek PCIe GBE Family Controller #2
   Physical Address. . . . . . . . . : A0-F3-C1-10-81-BF
   DHCP Enabled. . . . . . . . . . . : Yes
   Autoconfiguration Enabled . . . . : Yes
   Link-local IPv6 Address . . . . . : fe80::94:542f:e87c:5ee1%24(Preferred)
   IPv4 Address. . . . . . . . . . . : 192.168.1.2(Preferred)
   Subnet Mask . . . . . . . . . . . : 255.255.255.0
   Lease Obtained. . . . . . . . . . : October-18-13 6:35:25 PM
   Lease Expires . . . . . . . . . . : October-19-13 6:35:25 PM
   Default Gateway . . . . . . . . . : 192.168.1.1
   DHCP Server . . . . . . . . . . . : 192.168.1.1
   DHCPv6 IAID . . . . . . . . . . . : 413201345
   DHCPv6 Client DUID. . . . . . . . : 00-01-00-01-16-18-1A-73-50-E5-49-53-49-F3
   DNS Servers . . . . . . . . . . . : 192.168.1.1
   NetBIOS over Tcpip. . . . . . . . : Enabled

Tunnel adapter isatap.{C11B5C77-650A-46CE-8B60-67F54E9AA688}:

   Media State . . . . . . . . . . . : Media disconnected
   Connection-specific DNS Suffix  . :
   Description . . . . . . . . . . . : Microsoft ISATAP Adapter
   Physical Address. . . . . . . . . : 00-00-00-00-00-00-00-E0
   DHCP Enabled. . . . . . . . . . . : No
   Autoconfiguration Enabled . . . . : Yes

Tunnel adapter Teredo Tunneling Pseudo-Interface:

   Connection-specific DNS Suffix  . :
   Description . . . . . . . . . . . : Teredo Tunneling Pseudo-Interface
   Physical Address. . . . . . . . . : 00-00-00-00-00-00-00-E0
   DHCP Enabled. . . . . . . . . . . : No
   Autoconfiguration Enabled . . . . : Yes
   IPv6 Address. . . . . . . . . . . : 2001:0:9d38:90d7:1404:2f51:3f57:fefd(Preferred)
   Link-local IPv6 Address . . . . . : fe80::1404:2f51:3f57:fefd%13(Preferred)
   Default Gateway . . . . . . . . . : ::
   NetBIOS over Tcpip. . . . . . . . : Disabled
I'll do it again in Ubuntu if needed.
My System SpecsSystem Spec
19 Oct 2013   #20
Kaktussoft

Microsoft Community Contributor Award Recipient

Microsoft Windows 7 Home Premium 64-bits 7601 Multiprocessor Free Service Pack 1



Just what I concluded.... faulty NIC. Replaced and all is working?

Description . . . . . . . . . . . : Realtek PCIe GBE Family Controller #2
=> did you install it twice? Or is other driver still installed?
Check device manager and "network center" .... all is fine?
My System SpecsSystem Spec
