Windows 7: Build your own External Hard Drive

11 Jan 2011   #1
DocBrown

Win7 Enterprise, Win7 x86 (Ult 7600), Win7 x64 Ult 7600, TechNet RTM on AMD x64 (2.8Ghz)


Build your own External Hard Drive

Build your own External Hard Drive

I hope this will be Helpful to new users / members.


Materials needed:

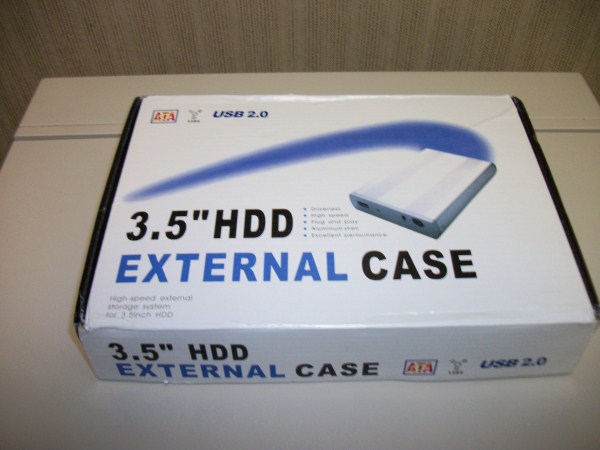

External HD enclosure kit ( I got mine from eBay $ 12.50)

Build your own External Hard Drive-100_0022-600-x-450-.jpg

a good brand HD (Sata or IDE) (I got a WD Blue 500gb for $39.99 from NewEgg)
Use the proper enclosure case for either Sata or IDE HD.

Build your own External Hard Drive-100_0023-600-x-450-.jpg

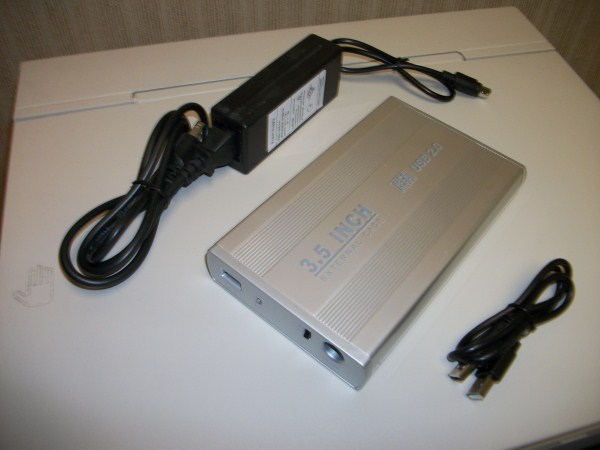

Open the new Ext enclosure carefully. Some have screws holding the 2 ends onto
the aluminum case. The one I just used had small plastic push tabs, that can break easily.

Build your own External Hard Drive-100_0024-600-x-450-.jpg

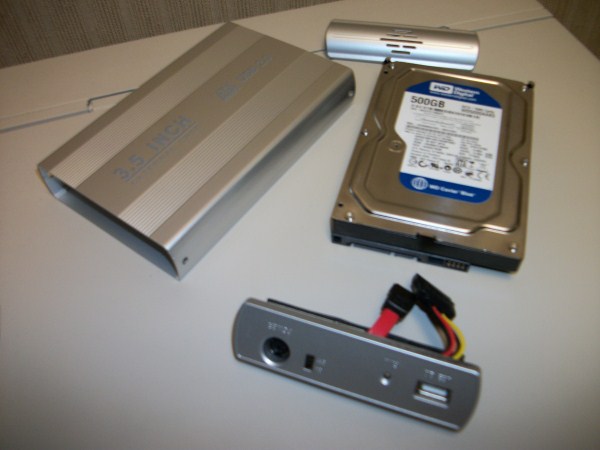

Connect the Data & Power cables properly to the HD. Most are coded so they can only be
inserted one way.

Build your own External Hard Drive-100_0025-600-x-450-.jpg

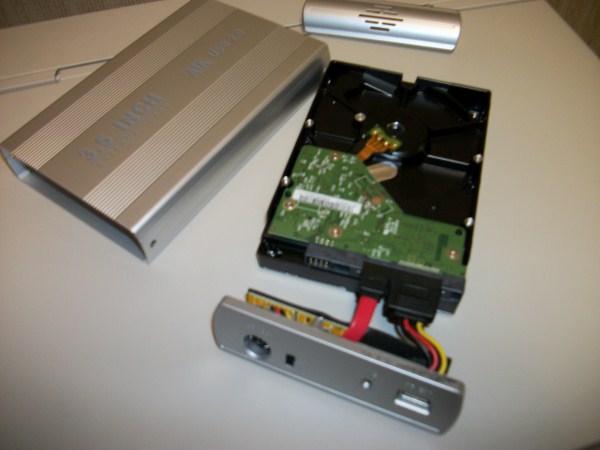

Slide the HD & cabled end assembly back into the case. Attach the ends to the case.
Next connect the power supply cord to the Ext case.

Then the USB cable.

Build your own External Hard Drive-100_0026-600-x-450-.jpg

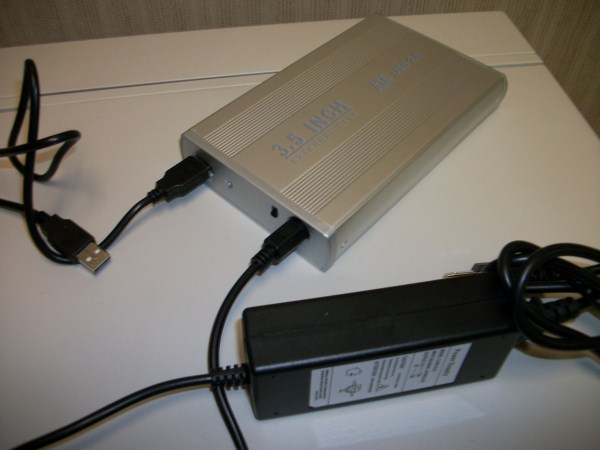

Connect the power supply to your standard home electrical source.


Connect the USB cable to a USB port on your computer, turn on the switch on the EXT case.


Now Windows should find the new hardware & install the drivers for it.

Windows may give you a prompt that this HD may need to be Initialized (especially if it is a new Raw HD).

Build your own External Hard Drive-disk_mgmt_new_hd_initialize.jpg

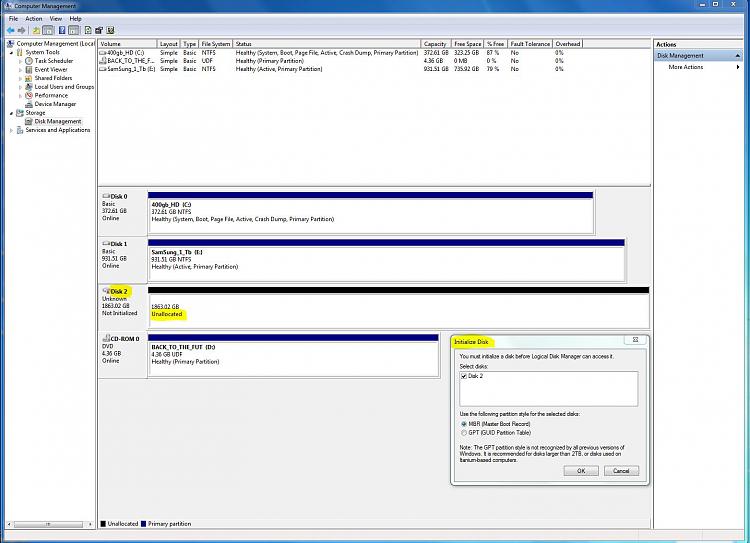

Follow the prompts if you need to Initialize your new raw HD.


Build your own External Hard Drive-disk_mgmt_new_hd_initialize02.jpg Build your own External Hard Drive-disk_mgmt_new_hd_simple_vol_04.jpg Build your own External Hard Drive-disk_mgmt_new_hd_simple_vol_05.jpg




If windows does not automatically asign a drive letter to your new Ext HD, then you will need to go
into Disk Management to asign it a drive letter.



Enjoy the use of your External Hard Drive




My System SpecsSystem Spec
.

11 Jan 2011   #2
brady



Epic Kits, I use those on a daily basis. Very nice when a hard drive dies as well... pop it in and run diagnostics.
My System SpecsSystem Spec
11 Jan 2011   #3
Beginning

Windows 7 Professional 64bit



Quote   Quote: Originally Posted by DocBrown View Post
Build your own External Hard Drive

Enjoy the use of your External Hard Drive
These things are awesome I've used them almost as long as I've had a computer.... My first computer was purchased in 94 or 95, I forget. I've got one for a 400g IDE and two for SATA 2.x. I'm not changing my thinking for a while...
My System SpecsSystem Spec
.


11 Jan 2011   #4
pparks1

Windows 7 Ultimate x64



I use an external Dock for post portable hard drive uses these days

USB2 and eSATA;
Newegg.com - Thermaltake BlacX ST0005U External Hard Drive SATA Enclosure Docking Station 2.5” & 3.5” USB 2.0 & eSATA
My System SpecsSystem Spec
11 Jan 2011   #5
essenbe
Microsoft MVP

Windows 7 Enterprise X64/Windows 10 X64



I love mine. I have 2 Rosewill enclosures with 1T Samsung Spinpoints. They are great.
My System SpecsSystem Spec
12 Jan 2011   #6
James Colbert




Well written and helpful (and cheap to accomplish!). I will say that there should be more pink dancing elephants. I do take exception to that. Please bear this in mind for your next tutorial.



James
My System SpecsSystem Spec
12 Jan 2011   #7
soho1

Win 7 Pro 64-bit



Doc, Nicely written article! I always appreciate the effort that goes into something like that. It takes a lot of work.

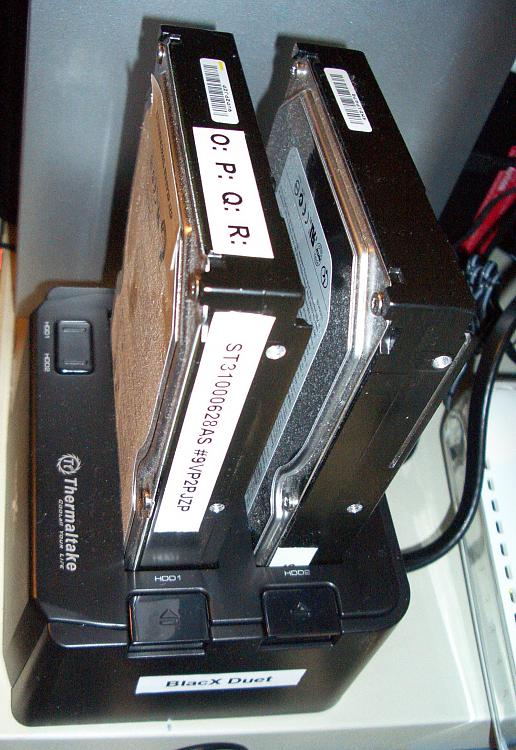

FYI, recently I went with an off-the-shelf dual-HD solution called BlacXduet from Thermaltake. Stuff your own SATA drives in. Not as pretty, but you can swap out quickly. eSATA or USB connection. About $58 from Best Buy.


Attached Thumbnails
Build your own External Hard Drive-blacx.jpg
My System SpecsSystem Spec
12 Jan 2011   #8
Phone Man

Windows 8.1 Pro w/Media Center 64bit, Windows 7 HP 64bit



I have been checking on external hard drives and just about all come with a 1yr warranty. I like the idea of getting a good HDD with 5yr warranty and sticking it in an enclosure. I am still looking for an enclosure with USB3.0/2.0 and a SATA III interface. Found a few with USB3.0 but with SATA II interface. They state SATA III compatible but run at SATA II speeds. Not in a hurry so will wait for the higher specs.

Jim
My System SpecsSystem Spec
12 Jan 2011   #9
thefabe

Windows 7 ultimate 64 bit / XP Home sp3



Quote   Quote: Originally Posted by soho1 View Post
Doc, Nicely written article! I always appreciate the effort that goes into something like that. It takes a lot of work.

FYI, recently I went with an off-the-shelf dual-HD solution called BlacXduet from Thermaltake. Stuff your own SATA drives in. Not as pretty, but you can swap out quickly. eSATA or USB connection. About $58 from Best Buy.
You can also get those that except both 3.5 and 2.5 I'm not sure if the one shown does but thought I'd mention it anyways.
One of the cool things is the hot swap feature.

Also very well written and attached photo's Doc should help out some members. +1 on that.
Fabe
My System SpecsSystem Spec
12 Jan 2011   #10
essenbe
Microsoft MVP

Windows 7 Enterprise X64/Windows 10 X64



Phoneman, I have sata 6 connectors in my computer. I also have a sata 6 HD and a sata 3 HD. The only way to tell the difference is through benchmarks, and that is even minimal. Truth is there is no mechanical drive that can max out sata3 capabilities much less sata6. and the enclosures usually come with a 1 yr warranty, the HD comes with extended warranties.
As far as performance of sata 3 vs. sata6.
WD1002FAEX sata6-internal 1TB
Build your own External Hard Drive-hd-tune-wd-12-5.png
Seagate sata3-500GB internal
Build your own External Hard Drive-hd-tune-seagate12-5.png

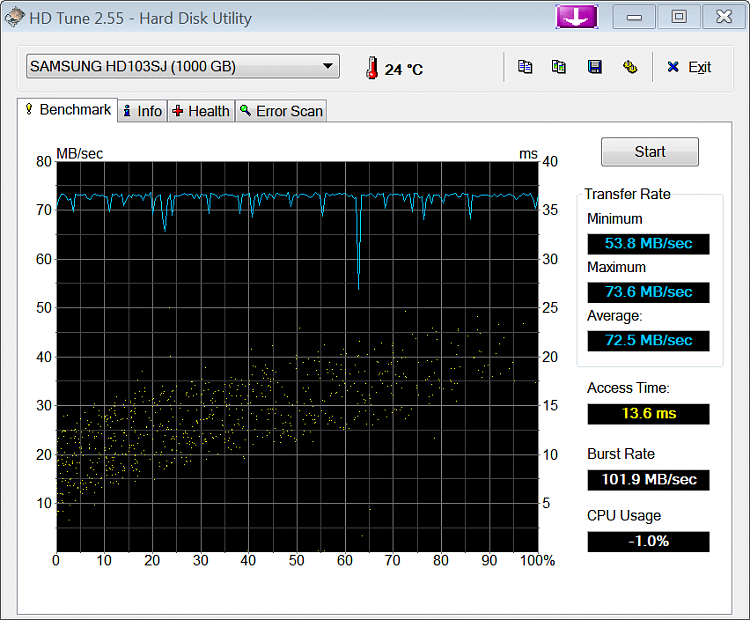

Samsung sata3- external esata
Build your own External Hard Drive-hd-tune-samsung-esata.png


My System SpecsSystem Spec
