Windows 7: Show Us Your Rig [3]

21 May 2012   #1111
IownAmoneyPit

Windows 7 Pro x 2/Windows 10 Home/10 Pro//Windows 10 Insider Preview ?



Excellent job Britton30 with the red HDD light you now have the knight rider edition case.


My System SpecsSystem Spec
.
21 May 2012   #1112
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1



Thanks! Yeah Knight Rider or Gort edition.
My System SpecsSystem Spec
22 May 2012   #1113
jeepmann4x4

Windows 7 Ultimate 64bit

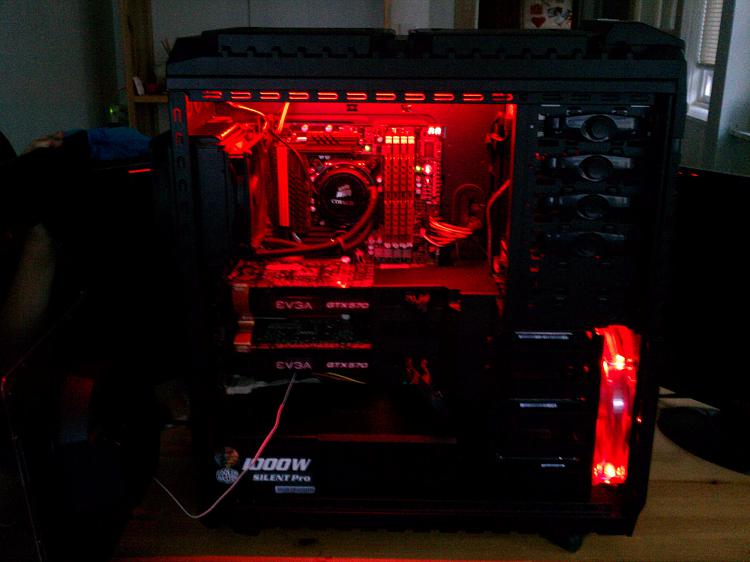

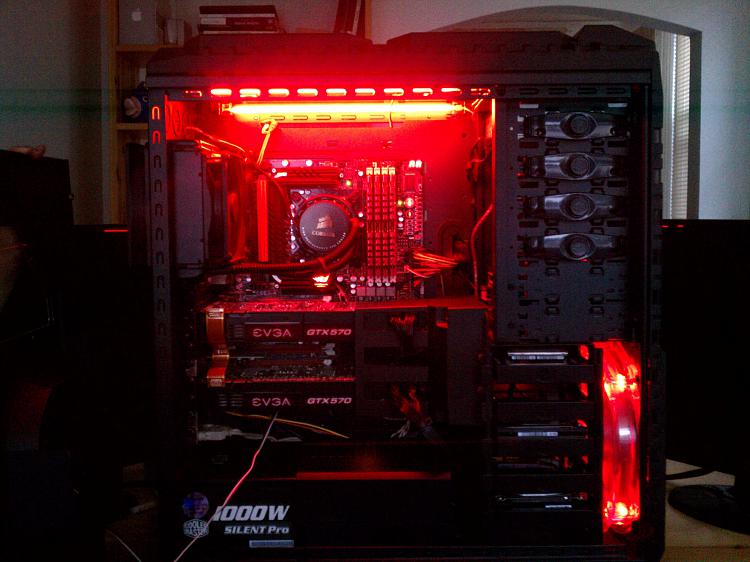

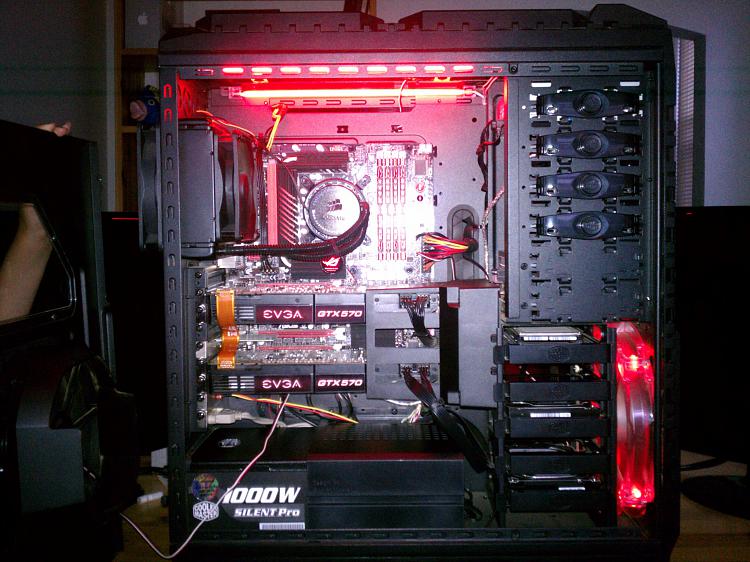

Added a Couple of lights to my rig!
Sorry for the crappy cell phone pics


Attached Thumbnails
Show Us Your Rig [3]-img_20120520_192513.jpg   Show Us Your Rig [3]-img_20120520_192541.jpg   Show Us Your Rig [3]-img_20120520_192548.jpg   Show Us Your Rig [3]-img_20120520_192724.jpg   Show Us Your Rig [3]-img_20120520_192804.jpg

My System SpecsSystem Spec
.

22 May 2012   #1114
paulpicks21

Windows 7 Professional 64 bit



Looking good Jeepman, clean as always
My System SpecsSystem Spec
22 May 2012   #1115
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1



Looks nice jeepman, but shouldn't nVIDIA have green lights?
My latest project was to upgrade an old Compaq SR1710NX and keep the old case. It came with XP, Athlon 64 3500+, 1GB DDR400, fast for it's time.
I completely disassembled the case and washed it, even the front panel parts and card reader and painted the outside. It's now The Dark Knight.
The new parts, some of which I already had
W7 Ult 64 bit
ASUS M4A88T-M
AMD Phenom II X6 1055T, 2.8GHz, clocked to 3.68GHz
G.Skill Ripjaws Z 1600 8GB, 2x4GB
Corsair HX650 PSU
Hyper TX-3 CPU cooler with two Noctua 92mm fans
1 Noctua 92mm exhaust fan

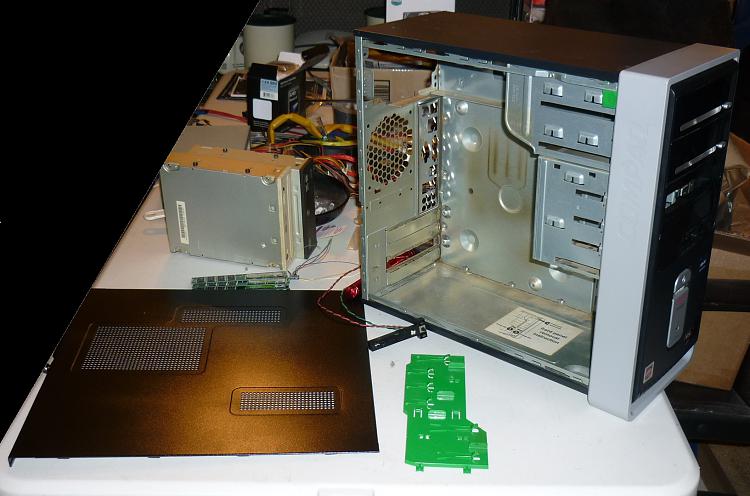

Dirty case to start with.
Show Us Your Rig [3]-start.jpg

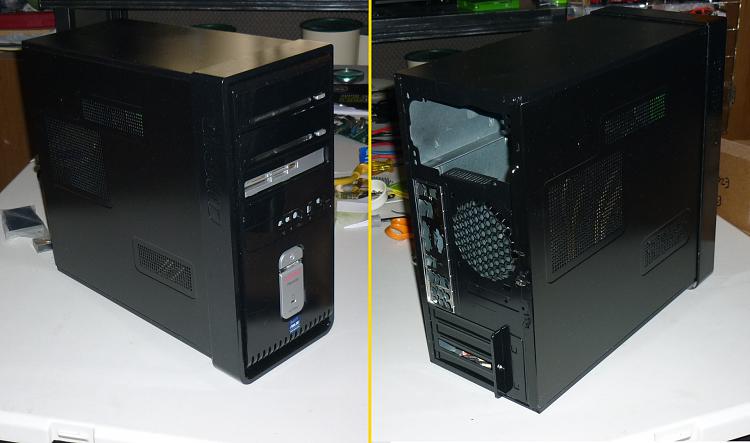

After the paint job.
Show Us Your Rig [3]-new-paint.jpg

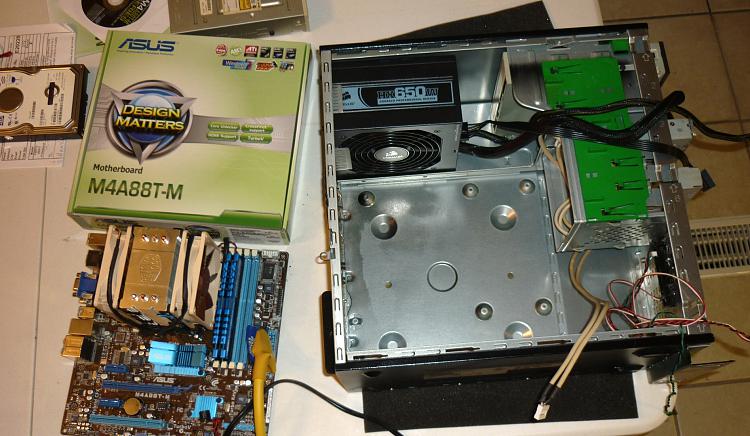

Some parts ready.
Show Us Your Rig [3]-parts-layout.jpg

Board with some cables attached going in.

Show Us Your Rig [3]-mobo-wires.jpg

The wiring process in progress.
Show Us Your Rig [3]-wiring-progress.jpg

Wiring done, OEM cases don't lend themselves to much cable management.
Show Us Your Rig [3]-wiring-done.jpg

Here she is up and running well. I had the board running on the board's box for 3-4 weeks to make sure it was stable.

Show Us Your Rig [3]-running.jpg

..and the completed project back at home. This will be used as a backup rig.

Show Us Your Rig [3]-completed.jpg

The cooler leaves just enough room to get to the RAM.
Show Us Your Rig [3]-ram-clearance.jpg

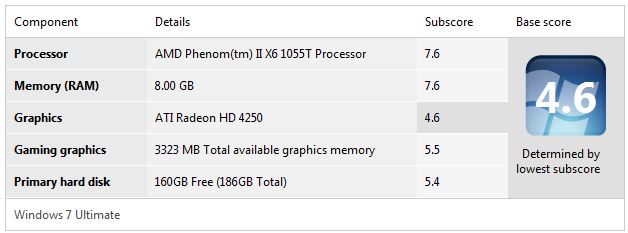

And the scores you'll want to know.
Show Us Your Rig [3]-benches.jpg Show Us Your Rig [3]-wei.jpg


My System SpecsSystem Spec
22 May 2012   #1116
essenbe

Windows 7 Enterprise X64/Windows 10 Enterprise X64/Windows 10 Pro X64/Linux Mint



nice job, Gary. Well done. I hate to tell you, but you forgot to put the drive cage in.
My System SpecsSystem Spec
22 May 2012   #1117
A Guy

Microsoft Community Contributor Award Recipient

Windows 7 Home Premium x64 SP1



Quote   Quote: Originally Posted by jeepmann4x4 View Post
Added a Couple of lights to my rig!
Sorry for the crappy cell phone pics
Looking good

Quote   Quote: Originally Posted by Britton30 View Post
Looks nice jeepman, but shouldn't nVIDIA have green lights?
My latest project was to upgrade an old Compaq SR1710NX and keep the old case. It came with XP, Athlon 64 3500+, 1GB DDR400, fast for it's time.
I completely disassembled the case and washed it, even the front panel parts and card reader and painted the outside. It's now The Dark Knight.
The new parts, some of which I already had
W7 Ult 64 bit
ASUS M4A88T-M
AMD Phenom II X6 1055T, 2.8GHz, clocked to 3.68GHz
G.Skill Ripjaws Z 1600 8GB, 2x4GB
Corsair HX650 PSU
Hyper TX-3 CPU cooler with two Noctua 92mm fans
1 Noctua 92mm exhaust fan
Dirty case to start with.
Attachment 213090

After the paint job.
Attachment 213086

Some parts ready.
Attachment 213087

Board with some cables attached going in.

Attachment 213085

The wiring process in progress.
Attachment 213093

Wiring done, OEM cases don't lend themselves to much cable management.
Attachment 213092

Here she is up and running well. I had the board running on the board box for 3-4 weeks to make sure it was stable.

Attachment 213089

..and the completed project back at home. This will be used as a backup rig.

Attachment 213084

And the scores you'll want to know.
Attachment 213083 Attachment 213091
The cooler leaves just enough room to get to the RAM.
Good job Gary

Quote   Quote: Originally Posted by essenbe View Post
nice job, Gary. Well done. I hate to tell you, but you forgot to put the drive cage in.


A Guy
My System SpecsSystem Spec
22 May 2012   #1118
jeepmann4x4

Windows 7 Ultimate 64bit



Quote:
Quote: Originally Posted by Britton30
Looks nice jeepman, but shouldn't nVIDIA have green lights?

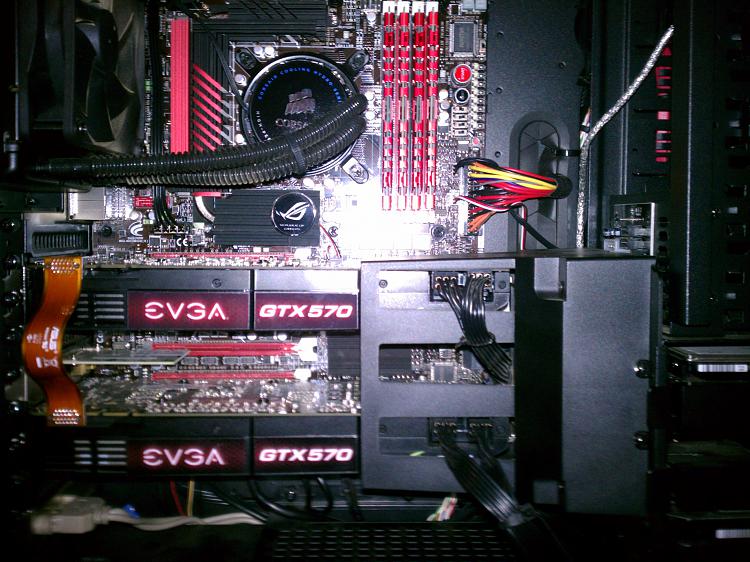

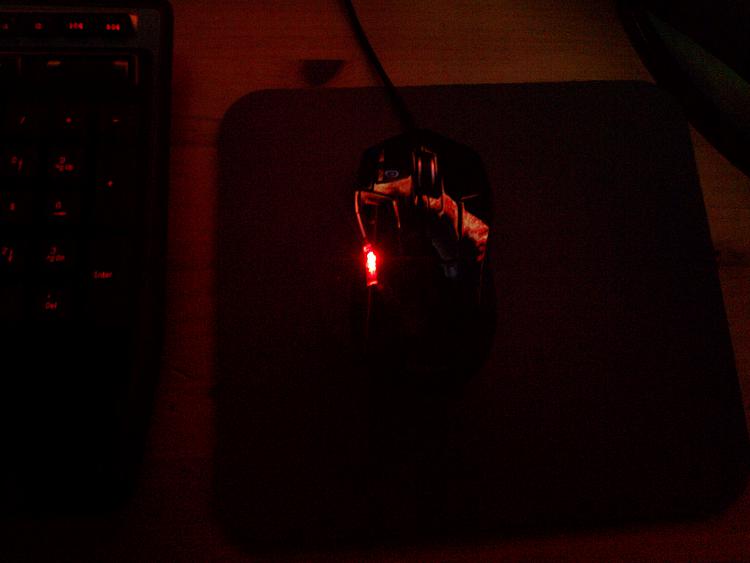

My MB,ram,case,kb and mouse are all black n' red....hell even my NVIDIA 570's are black n' red..So I was kinda thinking I should go with it.....but I do like green


Attached Thumbnails
Show Us Your Rig [3]-dsc_1043.jpg   Show Us Your Rig [3]-img_20120117_205548.jpg   Show Us Your Rig [3]-img_20120329_195349.jpg   Show Us Your Rig [3]-img_20120329_195408.jpg   Show Us Your Rig [3]-img_20120520_192804.jpg

My System SpecsSystem Spec
23 May 2012   #1119
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1



Quote   Quote: Originally Posted by essenbe View Post
nice job, Gary. Well done. I hate to tell you, but you forgot to put the drive cage in.
Drive cage, I don need no steenking drive cage.

Thanks guys!

Jeep, maybe you should stick with red...I just now noticed the ROG board. Red and green would look a lot like Christmas.
My System SpecsSystem Spec
23 May 2012   #1120
Alsisgevat

64bit Windows 7 Ultimate



Jeepmann- its looking very good! Nicly done!

Britton- those are some nice scores for a "backup" rig, great job!
My System SpecsSystem Spec
