Windows 7: Show Us Your Rig [3]


23 May 2012   #1121

Win7 Home Premium x64 SP1



Quote   Quote: Originally Posted by Britton30 View Post
Looks nice jeepman, but shouldn't nVIDIA have green lights?
My latest project was to upgrade an old Compaq SR1710NX and keep the old case. It came with XP, Athlon 64 3500+, 1GB DDR400, fast for it's time.
I completely disassembled the case and washed it, even the front panel parts and card reader and painted the outside. It's now The Dark Knight.
The new parts, some of which I already had
Windows 7 Ult 64 bit
ASUS M4A88T-M
AMD Phenom II X6 1055T, 2.8GHz, clocked to 3.68GHz
G.Skill Ripjaws Z 1600 8GB, 2x4GB
Corsair HX650 PSU
Hyper TX-3 CPU cooler with two Noctua 92mm fans
1 Noctua 92mm exhaust fan
Dirty case to start with.
Attachment 213090

After the paint job.
Attachment 213086

Some parts ready.
Attachment 213087

Board with some cables attached going in.

Attachment 213085

The wiring process in progress.
Attachment 213093

Wiring done, OEM cases don't lend themselves to much cable management.
Attachment 213092

Here she is up and running well. I had the board running on the board box for 3-4 weeks to make sure it was stable.

Attachment 213089

..and the completed project back at home. This will be used as a backup rig.

Attachment 213084

And the scores you'll want to know.
Attachment 213083 Attachment 213091
The cooler leaves just enough room to get to the RAM.
nice job of breathing new life into that old case chap. looks nice

Quote   Quote: Originally Posted by jeepmann4x4 View Post
Quote:
Quote: Originally Posted by Britton30
Looks nice jeepman, but shouldn't nVIDIA have green lights?
My MB,ram,case,kb and mouse are all black n' red....hell even my NVIDIA 570's are black n' red..So I was kinda thinking I should go with it.....but I do like green
another smashin job, lookin good mate

i'll av a few pics for ya soon'ish. just waiting on some fans to arrive.
no doubt Alsisgevat gonna take the piss now

My System SpecsSystem Spec
.

23 May 2012   #1122
Microsoft MVP

Windows 7 Ultimate X64 SP1



I got a new WD Blue 250GB HDD today and cloned the old one to it, my WEI drive score went up to 5.9 from 5.4. I'd discovered the old drive was SATA 1.5GBs and was failing.

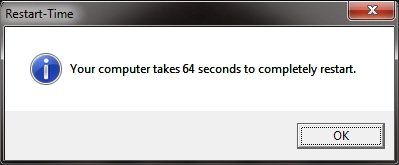

The reboot time is good too.

Name:  Restart.jpg
Views: 10
Size:  15.8 KB


My System SpecsSystem Spec
24 May 2012   #1123

Windows 7 Ultimate 64bit + xp,Vista,ubuntu in V-Box's



Quote   Quote: Originally Posted by Britton30 View Post
I got a new WD Blue 250GB HDD today and cloned the old one to it, my WEI drive score went up to 5.9 from 5.4. I'd discovered the old drive was SATA 1.5GBs and was failing.

The reboot time is good too.

Attachment 213277
Always good to find out its dieing than find it dead....
My System SpecsSystem Spec
.


24 May 2012   #1124

64bit Windows 7 Ultimate



Nice new score Britton! Congrats.

On a separate note, to everyone else I received these in the mail yesterday:


Attached Thumbnails
Show Us Your Rig [3]-img_0225.jpg
My System SpecsSystem Spec
24 May 2012   #1125

Microsoft Community Contributor Award Recipient

Windows 7 Ultimate 64



Alsisgevat,
Oh happy days! That is some powerfully cool graphics you're about to install. Congrats and we all know you'll be happy when the fittings are all tightened on these bad boys ! If you can shoot a whole series on your water cooling install and the set up and install of these.
My System SpecsSystem Spec
24 May 2012   #1126

64bit Windows 7 Ultimate



Hehe, thanx mate. Yeah I will try to make a build log or something. These cards are ALMOST as beautiful as Megan Fox in that transformers movie.

I basically have all the parts,pumps and fittings, I just need time to install it all. So when my xams finish in a week and a half I will upload those pics
My System SpecsSystem Spec
24 May 2012   #1127

Win7 Home Premium x64 SP1



nice1 Joey bet ur buzzin now they've arrived.
i bet u can't wait till ur exams r done and do it b4 lookin forward to the pics chap
My System SpecsSystem Spec
24 May 2012   #1128

64bit Windows 7 Ultimate



Thanx mate, yeah I am counting down the days!
My System SpecsSystem Spec
24 May 2012   #1129

Win7 Home Premium x64 SP1



all my fans have been dispatched now so only a couple of days. i hope
My System SpecsSystem Spec
01 Jun 2012   #1130

Win7 Home Premium x64 SP1



ello folks

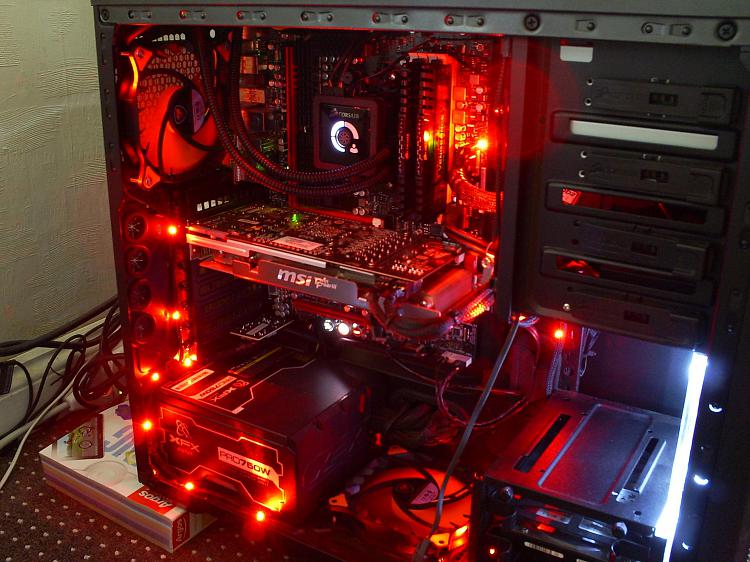

finally my cougars turned up yesterday so i could finally install my H100
ive swapped out my xms3 memory for some 1600 vengeance 2x4GB
installed the H100 under the mesh cover on top with 2x120 cougar vortex pushing up through the rad n out.
1x120 cougar rear intake so its bringin col air just underneath the h100.
1x120 cougar as intake in the bottom.
my case temp has dropped by about 3c,
cpu idle temp is down to 31c. its usually about 39c at this time of day.
my gpu idle has dropped by about 4c as the cougar is bringin more air up underneath it. so all is good i just have to get shot of the stock corsair fans from the front and side as i can hear them over the others.


Attached Thumbnails
Show Us Your Rig [3]-s4030763.jpg   Show Us Your Rig [3]-s4030766.jpg   Show Us Your Rig [3]-s4030769.jpg   Show Us Your Rig [3]-s4030772.jpg
My System SpecsSystem Spec
