Windows 7: Show Us Your Rig [3]

17 Nov 2011   #171
smarteyeball




Quote   Quote: Originally Posted by sygnus21 View Post
That's what I like to see, a nice clean wire job.
Lol, that's why I couldn't be bothered finding my camera.

I DID NOT enjoy doing my last build and the cable management, or lack thereof, reflects it

The Lian Li V-1020A is a lovely case - but whoever designed it needs a damn good slap. On the plus side, there are no window panels so I can't see my laziness


My System SpecsSystem Spec
.
17 Nov 2011   #172
sygnus21

Windows 10 Pro



Quote   Quote: Originally Posted by smarteyeball View Post
On the plus side, there are no window panels so I can't see my laziness
Well whether I have window panels or not my x-ray vision wouldn't allow me to get by with a sloppy wire job. I'm just saying
My System SpecsSystem Spec
17 Nov 2011   #173
smarteyeball




Lol, I will get around to it. It'll eat at me. Correction - it is eating at me
My System SpecsSystem Spec
.

17 Nov 2011   #174
Wordsworth

Windows 7 Ultimate 64 bit



Quote   Quote: Originally Posted by smarteyeball View Post
Lol, I will get around to it. It'll eat at me. Correction - it is eating at me
Your Lian Li looks like it'd be just a tad bit easier to cable manage than the model I have, PC-B70. It looks to have a couple more access holes anyway. Cable management was a pain with it and it took me a couple of weeks before I was for the most part satisfied, buying and trying different cables online to get it there.

Anyway, when you do it, have fun.
My System SpecsSystem Spec
17 Nov 2011   #175
sygnus21

Windows 10 Pro



I'm one of those people who likes to look inside electronics such as stereo equipment and marvel at the layout of components and wiring job. Since then I've been into "cable management" before there was such world, or at least became common.

Anyway when I got my first PC (custom built) one of the first things I did was clean up the mess of cables and wires all over the place

Here's some photos of my system in two different cases....

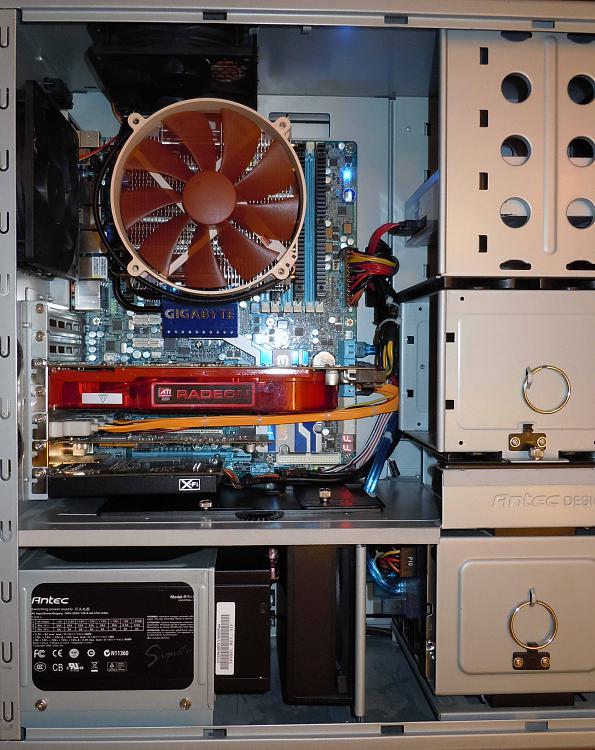

i7-950 system in an Antec P182 case.....
Show Us Your Rig [3]-antec-p182-case.jpg

i7-950 system in a Cooler Master HAF-X case....
Show Us Your Rig [3]-haf-x-case-front.jpg

Show Us Your Rig [3]-haf-x-case-back.jpg


My System SpecsSystem Spec
17 Nov 2011   #176
smarteyeball




The patience and attention to detail is admirable and is worth the recognition.

But tbh, my concentration has very much been elsewhere lately and by the umpteenth undo/retie/readjust - faecal matter was cracked and I simply slammed the side panels on. But most importantly - it works.

Time for my OCD clean up later
My System SpecsSystem Spec
17 Nov 2011   #177
sygnus21

Windows 10 Pro



Well I tend to get mines done during the initial build. After that it's set it and forget it
My System SpecsSystem Spec
17 Nov 2011   #178
smarteyeball




That's my normal MO as a rule too, but ... yeah. It's not currently a priority.

EDIT: Got bored. This case really is a bitch to work with. Not the best job, but it's an improvement over what it was yesterday...

Apologies for rubbish pic quality, only camera I could find. It does look a lot better in the 'flesh' so to speak.

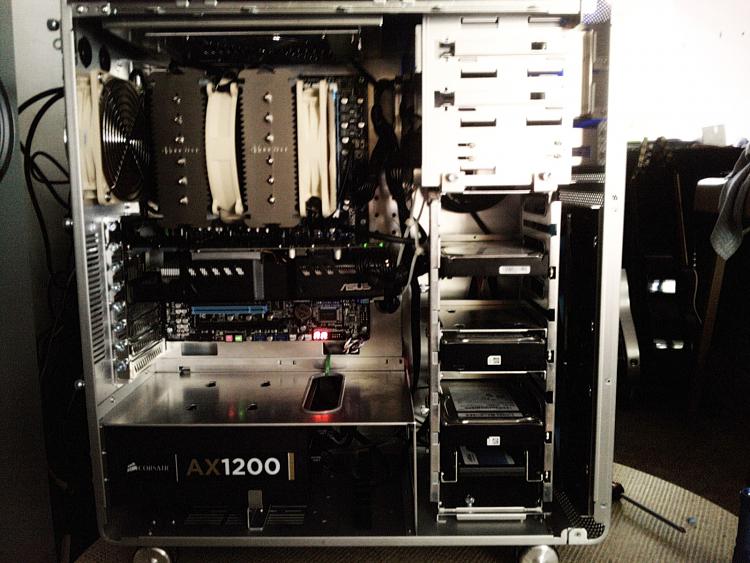

Show Us Your Rig [3]-lla.jpg

If they'd have moved the HDD cage 1cm to the left, you wouldn't have to remove the entire HDD cage to access the front fan filters. Which I forgot to put back on...

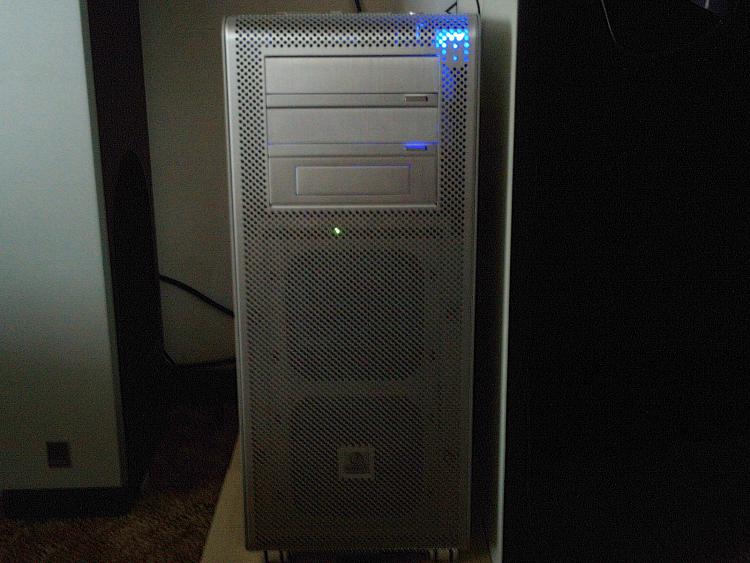

Show Us Your Rig [3]-llb.jpg

Show Us Your Rig [3]-llpeekaboo.jpg

That 5.25 ODD bay area... what a PITA. You have to dismantle the entire bloody thing to access it. That got old, real fast. The hidden device aspect is a nice touch though. Once you've sorted it out.


My System SpecsSystem Spec
18 Nov 2011   #179
setan berdasi

Windows 7 Ultimate Service Pack 1 64bit 6.1.7601





only a few small changes in my simple RIG



sorry for bad picture, I forgot how to take pictures in my phone

cheers

My System SpecsSystem Spec
18 Nov 2011   #180
StalkeR

Windows 7 Ultimate SP1 / Windows 10 Pro x64



Looks very nice with that red color !
My System SpecsSystem Spec
