Windows 7: Post Your Overclock! [2]

14 Sep 2012   #91
Hopalong X

Windows7 Pro 64bit SP-1; Windows XP Pro 32bit



Steve and other interested parties. This may be helpful.

xtremeforums> ASUS Maximus V Forumla/Extreme Official Support Thread


My System SpecsSystem Spec
.
14 Sep 2012   #92
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1



Quote   Quote: Originally Posted by Hopalong X View Post
Steve and other interested parties. This may be helpful.

xtremeforums> ASUS Maximus V Forumla/Extreme Official Support Thread
Woo-eee that thing does have a load of settings!
My System SpecsSystem Spec
14 Sep 2012   #93
essenbe
Microsoft MVP

Windows 7 Enterprise X64/Windows 10 X64



I think that is a re post from the ROG forums. It does have a lot of settings. If you can think of it, there is a setting for it. And several more for things you never thought of. It has VCCSA, and VCCIO, and then VCCIO #2, then it also has 2 offset voltages for the IMC. What does all that mean?
My System SpecsSystem Spec
.

14 Sep 2012   #94
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1



That guide should explain it, I didn't read it that well though. IMC is Internal Memory Controller.
My System SpecsSystem Spec
25 Sep 2012   #95
tom982

Microsoft Community Contributor Award Recipient

Windows 8.1 Pro x64



Quote   Quote: Originally Posted by smarteyeball View Post
No worries mate

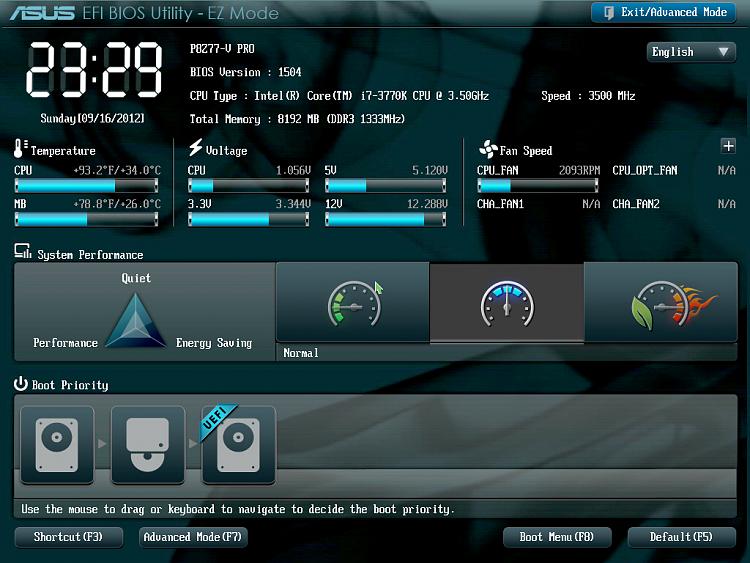

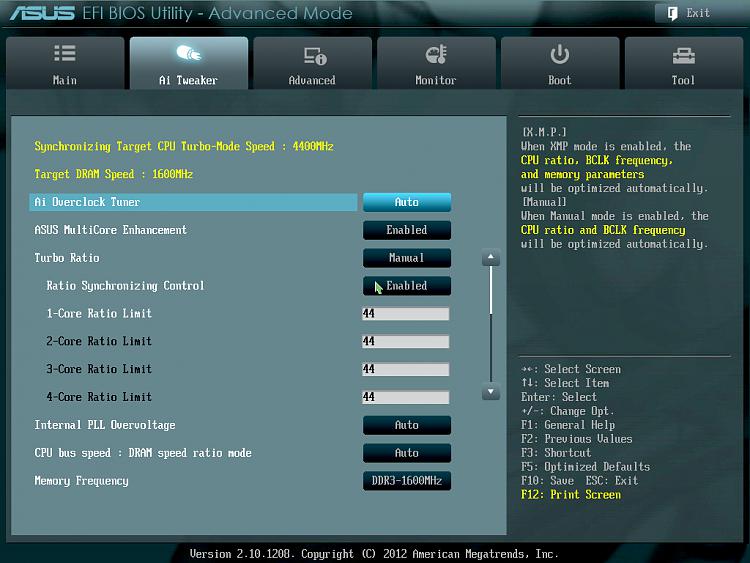

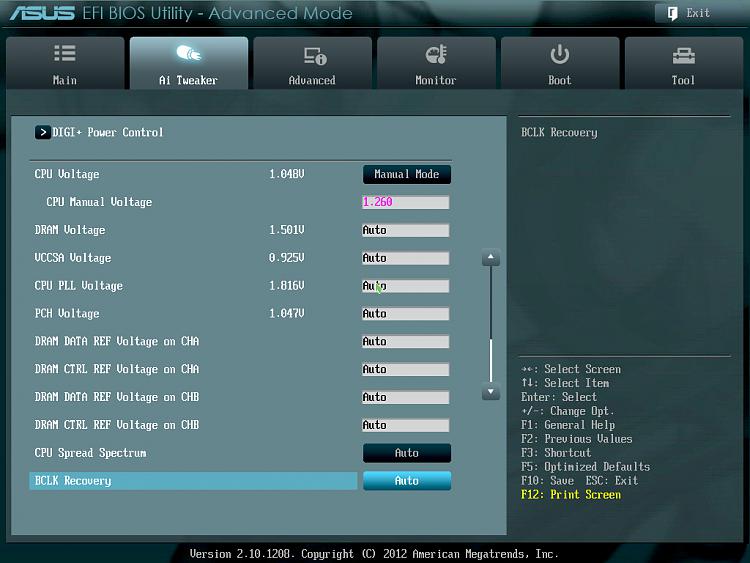

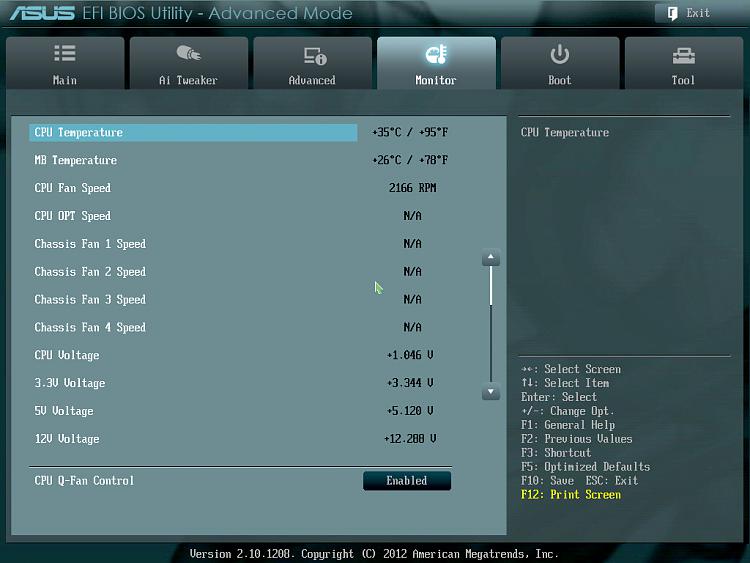

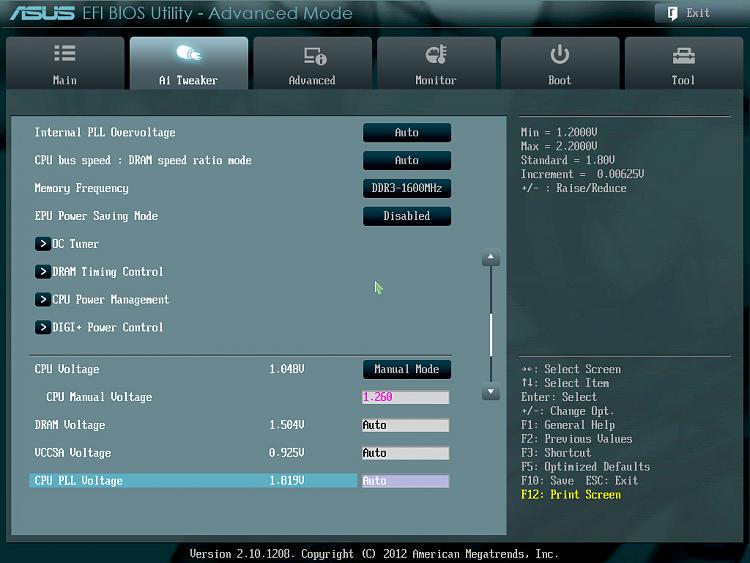

I've finally got round to putting the pictures up Any suggestions on what to change?


Attached Thumbnails
-120916232723.jpg   -120916232732.jpg   -120916232739.jpg   -120916232842.jpg   -120916232930.jpg

My System SpecsSystem Spec
25 Sep 2012   #96
Terronium 12

Windows 10 Technical Preview - x64



I see Steve is still bragging about his 5GHz clock.

I didn't even get a chance to mess around with the offset this past weekend. I am going to try for 4.6 tonight though using 1.34v. If it fails again I'm going to cry.
My System SpecsSystem Spec
25 Sep 2012   #97
essenbe
Microsoft MVP

Windows 7 Enterprise X64/Windows 10 X64



Quote   Quote: Originally Posted by Terronium 12 View Post
I see Steve is still bragging about his 5GHz clock.

I didn't even get a chance to mess around with the offset this past weekend. I am going to try for 4.6 tonight though using 1.34v. If it fails again I'm going to cry.
That post was a week ago when I did it.

Here's a good link on Overclocking an Ivy Bridge. It was done on an ROG board, a Genie I think, but all Asus boards have about the same options, I believe. You and Tom may find it interesting. It gives exact settings.
My System SpecsSystem Spec
26 Sep 2012   #98
smarteyeball




Quote   Quote: Originally Posted by tom982 View Post
Quote   Quote: Originally Posted by smarteyeball View Post
No worries mate
I've finally got round to putting the pictures up Any suggestions on what to change?
Thanks for those

► Change AI Tuner to manual.

► Use a + offset for vcore. With a little adjusting you will finda setting that mimics your manual. The plus side is the with c1E, Speedstep enabled, your chips clocks and volts will drop at idle. less power used, less temps. The 1155 moboo and chip range works phenomenally well with Overclocking and power saving enabled.

Start with around +0.0400. Don't be afraid to get up to the 0.0800 range. Monitor temps and stability.


*Optional*

Use less CPU PLL. ie 1.7v
Disable CPU Pll overvoltage. (currently set to auto in BIOS).
My System SpecsSystem Spec
26 Sep 2012   #99
essenbe
Microsoft MVP

Windows 7 Enterprise X64/Windows 10 X64



Tom, one more tip. If, while you are at a stable voltage in manual mode. Run Prime and open cpuz and Core Temp. After everything stabalizes, note the vcore in Prime and the VID in core temp. Subtract the vid from your Vcore and that should be your offset, or at least +/- .005 of what will be a stable offset.
My System SpecsSystem Spec
29 Sep 2012   #100
Terronium 12

Windows 10 Technical Preview - x64



Still working on this (and I'll actually remember to tonight) and my first go wasn't successful whatsoever but I believe that had more to do with my choice of LLC than anything else; my board refuses to like ultra high under any circumstance.

Reminds me of my old P35 UT T2RS not liking any more than .67x GTL. Fussy, fussy, fussy.
My System SpecsSystem Spec
