Windows 7: Post Your Overclock! [2]

08 Apr 2013   #501
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1



I hope your health and head get better mate! Don't make me come over there!


My System SpecsSystem Spec
.

08 Apr 2013   #502
ganjiry

Win7 Home Premium x64 SP1



Quote   Quote: Originally Posted by Britton30 View Post
I hope your health and head get better mate! Don't make me come over there!
Cheers chap but i'm sound and will soldier on through as always
My System SpecsSystem Spec
18 Apr 2013   #503
ganjiry

Win7 Home Premium x64 SP1

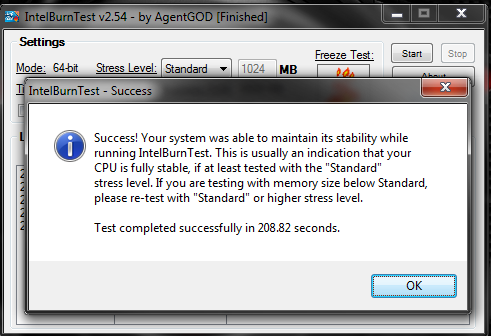

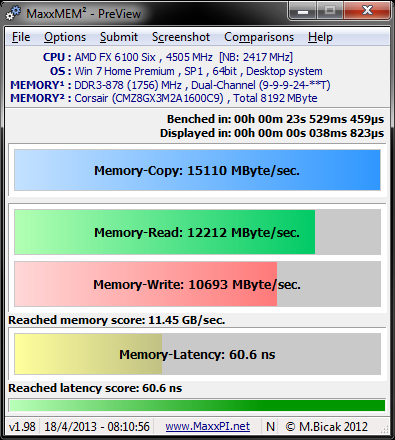

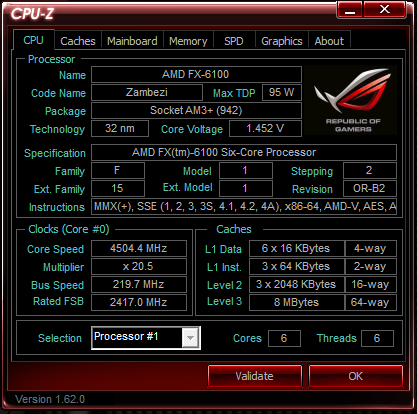

Here's my latest cpu oc based on some suggested settings from Solarsunshine. It still needs some tweaking though but it's stable so far.
Cpu multi = 20.5, Fsb = 219, Vcore = 1.452. Llc = High
Cpu/nb = 2417@ = 1.250v, llc = High
HT Link freq = 2417 @ = 1.212v
Mem freq = 1756 @ 1.50v

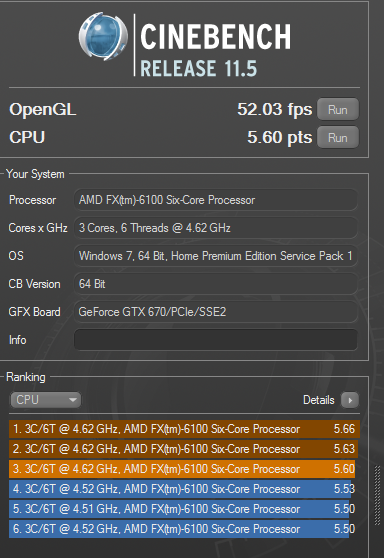

Cinebench Score
Cpu = 5.46
Open GL = 50.30.
Thats a couple of points down on previous scores though so gotta get my thinking cap on..


Attached Images

My System SpecsSystem Spec
.


18 Apr 2013   #504
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1



Great job on your RAM Ryan.
My System SpecsSystem Spec
18 Apr 2013   #505
ganjiry

Win7 Home Premium x64 SP1



Quote   Quote: Originally Posted by Britton30 View Post
Great job on your RAM Ryan.
Cheers chap
My System SpecsSystem Spec
18 Apr 2013   #506
Dude

Windows 10 Pro X64



Looking good Ganjiry
My System SpecsSystem Spec
27 Apr 2013   #507
ganjiry

Win7 Home Premium x64 SP1

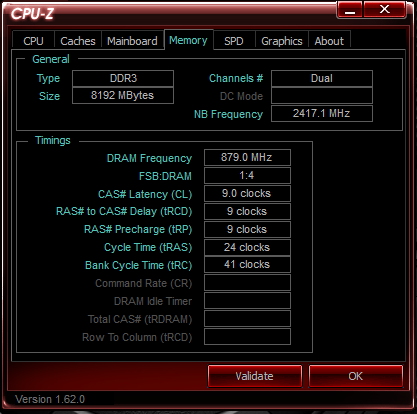

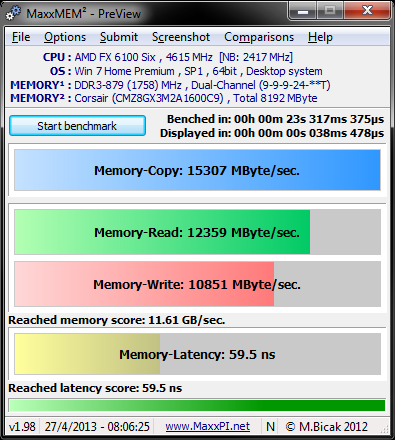

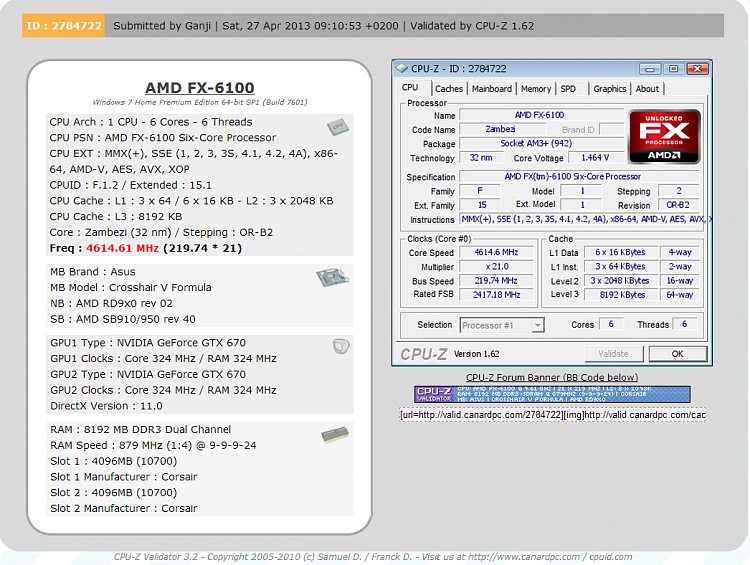

After a bit of tweaking but not fully stable as its failing on the second pass of IBT


Attached Thumbnails
Attached Images

My System SpecsSystem Spec
27 Apr 2013   #508
Solarstarshines

Windows 7 Home Premium 64bit sp1



Quote   Quote: Originally Posted by ganjiry View Post
After a bit of tweaking but not fully stable as its failing on the second pass of IBT
LLC should be fixing that you should have the option of putting optimization in effect as that is the power settings and power delivery fast you pretty much have the same bios but not the same chip so ......

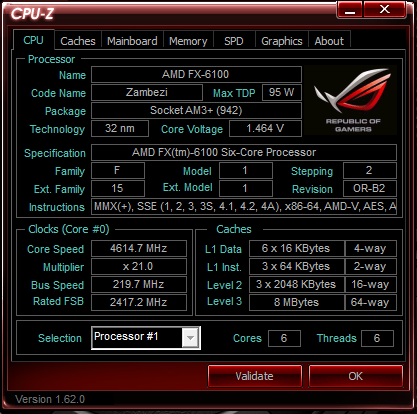

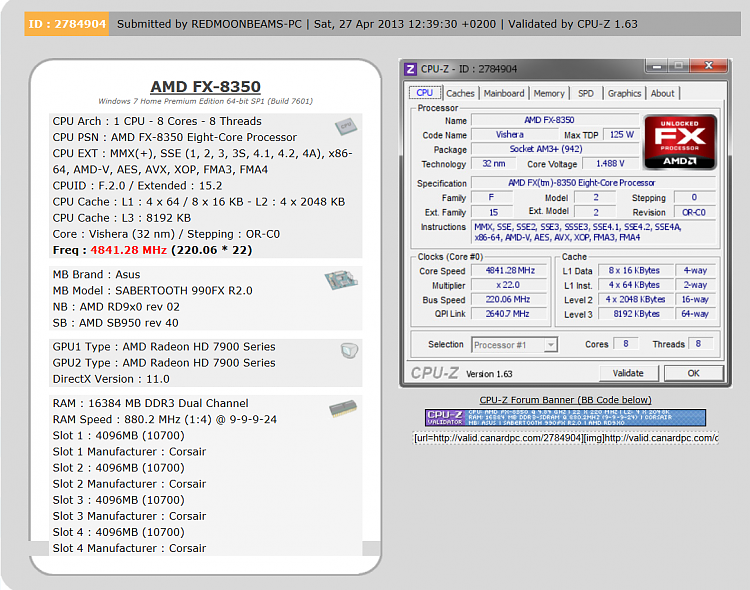

yours won't do it unless you pump something like 1.47volts usually I wouldn't say match volt to speed but it seems that way with AMD 1.46 v-core should put 4.6 ghz stable with LLC high both turbo off spread spectrum off I can't even remember all my tweeks unless I go into bios and look but for the sake of showing overclocks here is mine


Attached Thumbnails
My System SpecsSystem Spec
27 Apr 2013   #509
ganjiry

Win7 Home Premium x64 SP1



Quote   Quote: Originally Posted by Solarstarshines View Post
Quote   Quote: Originally Posted by ganjiry View Post
After a bit of tweaking but not fully stable as its failing on the second pass of IBT
LLC should be fixing that you should have the option of putting optimization in effect as that is the power settings and power delivery fast you pretty much have the same bios but not the same chip so ......

yours won't do it unless you pump something like 1.47volts usually I wouldn't say match volt to speed but it seems that way with AMD 1.46 v-core should put 4.6 ghz stable with LLC high both turbo off spread spectrum off I can't even remember all my tweeks unless I go into bios and look but for the sake of showing overclocks here is mine
I think it maybe down to the bios i'm using (1301). PWM Phase control is locked to extreme for some reason. Plus i have a few little bugs with the cpu/nb voltage and llc that is known on this bios or some say early boards shipped with bios 0404 which mine was.
On the cpu llc i need to set it ultra high to get a stable voltage.
With high llc i can set 1.472 in the bios which will give me 1.452-1.464 @ idle and drooping to 1.440 under load hence IBT not passing the second run. Ultra high tightens up the difference and has so far been the most stable although i haven't tried it yet on these settings.
I'll lower the vcore and raise the llc to ultra high which should give me the same voltage but shouldn't droop below 1.452 i think.
Cpu/nb llc is not right though as if i set 1.263 in the bios it will give me 1.263-1.277 idle and anything upto 1.310.
Although temps are not an issue i don't want to be putting more voltage through it.

Edit: Nice oc chap Fairplay!
My System SpecsSystem Spec
27 Apr 2013   #510
kbrady1979

Windows 7 Professional 64bit SP1

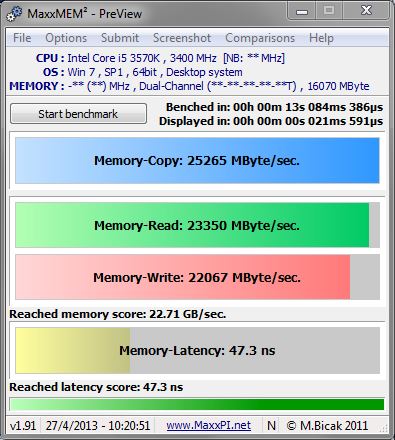

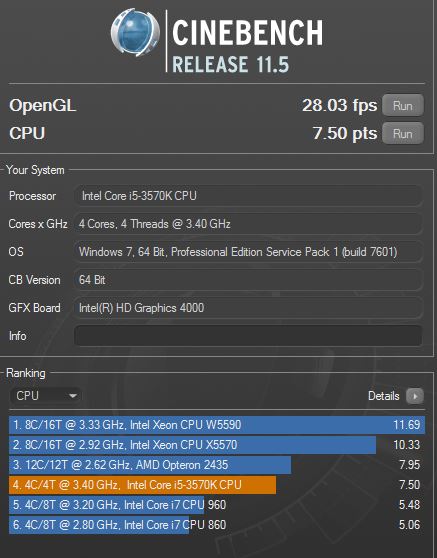

Using Cinebench and MaxxMem for the first time on this rig.......no idea how these stack up!

Name:  Cinebench Results.JPG
Views: 10
Size:  48.6 KB Name:  MaxxMem Results.JPG
Views: 12
Size:  53.8 KB


My System SpecsSystem Spec
