Windows 7: Show Us Your Rig [4]


19 Mar 2013   #1591

Microsoft Community Contributor Award Recipient

Windows 7 Ultimate 64

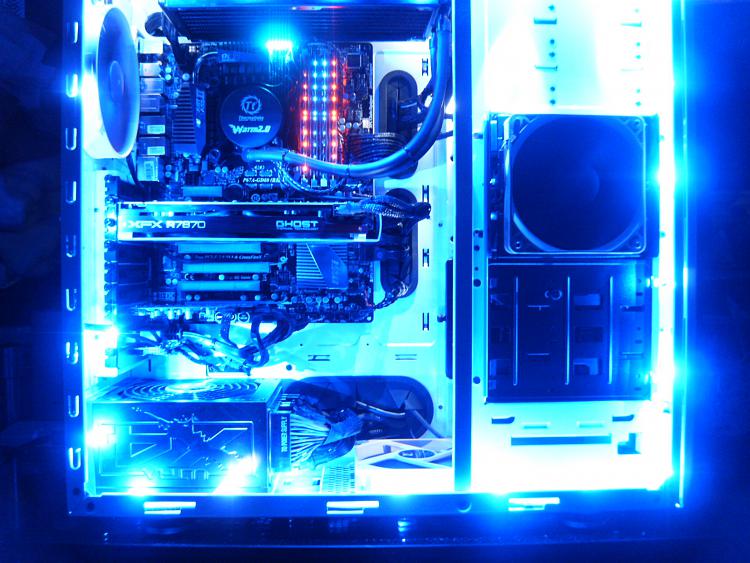

Added a NZXT LED kit.
Show Us Your Rig [4]-hpim2974.jpg

Show Us Your Rig [4]-hpim2977.jpg

Show Us Your Rig [4]-hpim2985.jpg

Show Us Your Rig [4]-hpim2982.jpg




My System SpecsSystem Spec
.

19 Mar 2013   #1592

Windows 7 Home Premium x64



Thanks Lady Fitz, Icit2lol, Linnemeyer, and Kbrady

Hey Linnemeyer that LED kit is pretty cool!
My System SpecsSystem Spec
19 Mar 2013   #1593

Win 7 Ultimate 64 bit



Quote   Quote: Originally Posted by Britton30 View Post
Very neat cabling Lady F.

Dallas, Good job on the pic upload mate! Now if everyone would do it that way. I can't see the paper Lady F mentioned.
Thanks for the kinds words. The elusive paper is at the very bottom of the top photo. It just has plan A on it. Here 'tis:



SATA Connections



Plan A




Intel SATAIII Ports Boot Drive

(Reserved for possible future RAID 0 Boot Drive)



Intel SATAII Ports Optical Drive

Reare-SATA Port

(Unused)

(Unused)



Marvel SATAIII Ports Data Drive 1

(Reservedfor possible future SSD caching of Data Drive 1)



LSI SATA III Data Drive 2 (0P0)

Data Drive 3 (0P1)

DataDrive 4 (0P2)

Data Drive 5 (0P3)



Data Drive 6 (1P0)

Front e-SATA Port (1P1)

2.5”Hot Swap Bay (1P2)

3.5”Hot Swap Bay (1P3)
My System SpecsSystem Spec
.


19 Mar 2013   #1594

Win 7 Ultimate 64 bit



Quote   Quote: Originally Posted by linnemeyerhere View Post
Cool! Like having Vegas at home.
My System SpecsSystem Spec
19 Mar 2013   #1595

Desk1 8 Pro / Desk2 7 Home Prem / Laptop 8.1 Pro all 64bit



Lady Fitz am wondering what are those fan brands are as I cannot make out the brand from the pic
My System SpecsSystem Spec
19 Mar 2013   #1596

Win 7 Ultimate 64 bit



Quote   Quote: Originally Posted by ICit2lol View Post
...Lady F like yours too wish my back looked like that though I have done a bit of LED and Fan modding - well thats my excuse. By the way are those Arctic fans if so I reckon they are top gear and way underrated in my view.
Thanks! The fans aren't Artic. The case fans are Thermaltake AF0018 120mm 800-1300 rpm with an attached speed control pot. I guess Thermaltake intended the pots to just dangle from the cable attaching them to the fans since there is no mounting bracket on them. I had to fabricate brackets to mount them.

The fan on the CPU cooler is a Gelid Silent 14 PWM 140mm 750-1200 rpm. The fan that came with the cooler was a cheap looking 120mm that left a rim of nickel plated steel around the fan that looked totally tacky. The curious thing is the fan runs at around 680-690 rpm when the computer is idle.
My System SpecsSystem Spec
20 Mar 2013   #1597

64bit Windows 7 Ultimate



Linne- that looks awesome, liking the blue allot, nice job!
My System SpecsSystem Spec
20 Mar 2013   #1598
Microsoft MVP

Windows 7 Ultimate X64 SP1



Quote   Quote: Originally Posted by Lady Fitzgerald View Post
Quote   Quote: Originally Posted by linnemeyerhere View Post
Cool! Like having Vegas at home.
You beat me to it, I was going to say Alan captured part of Fremont St. in his case and burned out the blue pixels in my LCD monitor.
My System SpecsSystem Spec
20 Mar 2013   #1599

Win7 Home Premium x64 SP1



Quote   Quote: Originally Posted by linnemeyerhere View Post
Added a NZXT LED kit.
]
Looking good chap I have the red NZXT kit and its not bright enough. nowhere near as bright as those.
My System SpecsSystem Spec
20 Mar 2013   #1600

Microsoft Community Contributor Award Recipient

Windows 7 Ultimate 64



Thanks everyone,
Something about shooting with my little digital camera makes the lights seem overly bright. They are bright but nothing like the way the camera captures them. I just installed one of these in my next used parts build and I was so impressed I ordered one for the main rig. These are real quality kit for anyone considering some LED lighting.
Cheers.......Vegas Baby Vegas !
My System SpecsSystem Spec
