Windows 7: Show Us Your Rig [4]


28 Sep 2012   #211

Microsoft Community Contributor Award Recipient

Windows 7 Ultimate 64



+1 on the 3 screens, wow didn't notice the tri 27" set up, now that's a wall of monitors !

My System SpecsSystem Spec
.

28 Sep 2012   #212
Microsoft MVP

Windows 7 Ultimate X64 SP1



Quote   Quote: Originally Posted by linnemeyerhere View Post
Tanya,
Don't sweat the PSU position I like you installed my PSU upside down for the very reason of added case air flow and everything is in nice order.
Attachment 234044
But that pulls all the heated air from the case through the PSU which may cause it to overheat in some scenarios.
My System SpecsSystem Spec
28 Sep 2012   #213

Microsoft Community Contributor Award Recipient

Windows 7 Ultimate 64



You could be on to something Britton but the more I've read and having now done this the temps in my case have never been lower and though I can't monitor the PSU speeds or temps like I said all seems to be normal and I'll advise if I notice added noise or fan speeds and heat during intense computing or gaming.
Show Us Your Rig [4]-hpim2418.jpg


My System SpecsSystem Spec
.


28 Sep 2012   #214

Microsoft Community Contributor Award Recipient

Windows 7 Ultimate 64

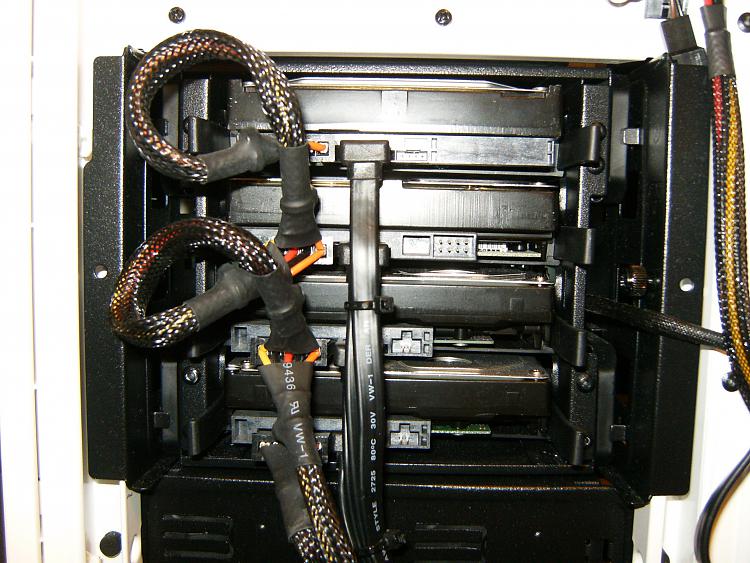

Shot some pictures of the oft ignored wiring side of my case just because I could.
Show Us Your Rig [4]-hpim2449.jpg

Show Us Your Rig [4]-hpim2451.jpg


Attached Thumbnails
Show Us Your Rig [4]-hpim2448.jpg   Show Us Your Rig [4]-hpim2452.jpg   Show Us Your Rig [4]-hpim2450.jpg
My System SpecsSystem Spec
28 Sep 2012   #215
Microsoft MVP

Windows 7 Ultimate X64 SP1

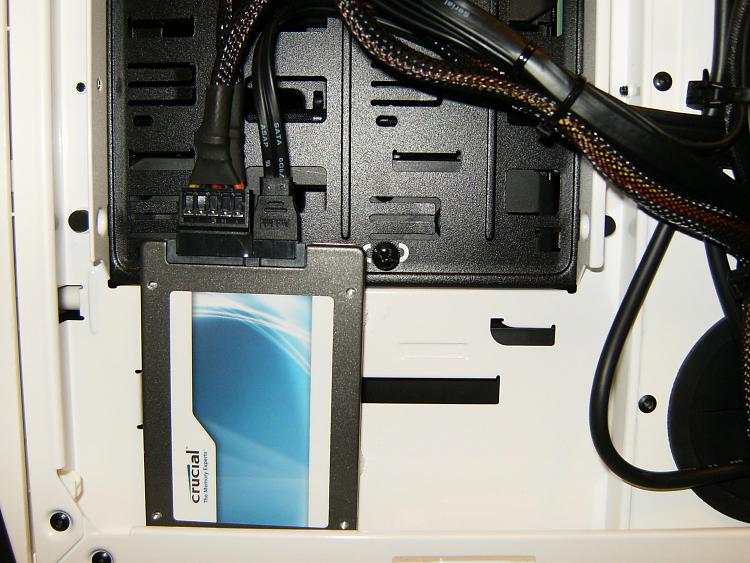

Alan, that's about as good as it gets on the wiring side. I especially like your SSD mounting solution.

You know with most cases, the PSU fan draws air from inside the case, eh? I notice all of your visible fans are exhaust.
My System SpecsSystem Spec
28 Sep 2012   #216

Microsoft Community Contributor Award Recipient

Windows 7 Ultimate 64



Britton,

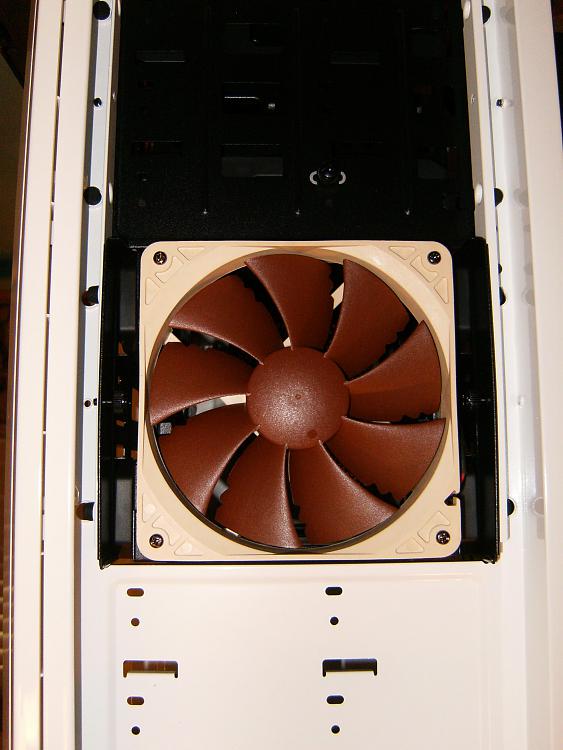

Yes, except for the 140mm next to the PSU and then the two 120mm in the side and front one blows across the HDD's and out the rear then the other draws air in from the front down low and is unobstructed by any cages or other.
Show Us Your Rig [4]-hpim2402.jpg

Show Us Your Rig [4]-hpim2403.jpg

Show Us Your Rig [4]-hpim2405.jpg


My System SpecsSystem Spec
28 Sep 2012   #217

Windows 7 Ultimate 64 bit

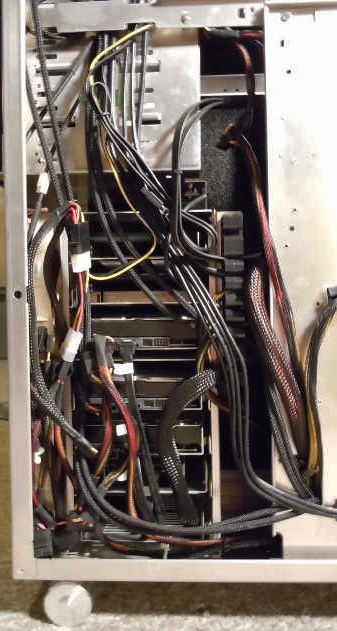

Well, since linnemeyerhere bared the oft ignored wiring side thought I'd do the same; maybe we need a "Show us your oft ignored wiring side" thread.

Not the nice side for sure.


Attached Images

My System SpecsSystem Spec
28 Sep 2012   #218

Microsoft Community Contributor Award Recipient

Windows 7 Ultimate 64



I strongly suggest not placing a SSD in a drive rack and just use Velcro dots to affix it to the floor or case back, clean out of the way and easy.

Wordsworth,
Very clean wiring job and I like the foam taped anchors for the routing, plus the LL wheelies........sweet!
My System SpecsSystem Spec
28 Sep 2012   #219

Windows 7 Ultimate 64 bit



The wiring is as good as I could do on this side anyway in this build. In a rebuild I'll cut out some more access holes in the mobo tray as it came stock with only two and at least one more would have made a difference in how clean even the backside looked.

The anchors are actually hard plastic but had I seen foam anchors I probably would have bought those as when I bought these I feared the side cover might not have room to close and the foam would have a little give where these don't. All worked out though after all as it's only the thick wires in back that make closing the side cover slightly difficult.

Why exactly do you not recommend putting an SSD in a drive rack? I could understand if someone simply laid it in a 3.5 bay but this box has a 2.5 bracket for the SSD. Just wondering if there's some other reason.
My System SpecsSystem Spec
28 Sep 2012   #220

Microsoft Community Contributor Award Recipient

Windows 7 Ultimate 64



No other reason other than unless you want to look at the drive if that's even an option then place it out of the way so that those drive bays can hold spinners and the fans can cool the heat off them. SSD's as you know generate minimal heat and can be place almost anywhere.
My System SpecsSystem Spec
