Windows 7: Show Us Your Rig [4]

03 Dec 2012   #641
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1



Nice rig Gene, you did well on cable management.


My System SpecsSystem Spec
.
03 Dec 2012   #642
essenbe

Windows 7 Enterprise X64/Windows 10 Enterprise X64/Windows 10 Pro X64/Linux Mint



Well done, Gene. It looks great.
My System SpecsSystem Spec
03 Dec 2012   #643
linnemeyerhere

Microsoft Community Contributor Award Recipient

Windows 7 Ultimate 64



Gene, I like those PCI covers. I also notice a marked difference of the Seasonic modular cables between my 600w and your 850w. I also notice the powered fan expansion card you mounted on the floor of the case in the number one HDD cage, does that keep the cables tidy or does it provide fan control or better power delivery for the fans?
My System SpecsSystem Spec
.

04 Dec 2012   #644
Lady Fitzgerald

Win 7 Ultimate 64 bit



Those PCI-e covers are nice. I wonder where Gene got them?

I have a hub similar, if not identical, to the one Gene has. It's just a power distribution hub that works the same as a Y cable adapter but is more sanitary looking. The one I have is fed from one of the 12v pairs of a 4 pin Molex connector and has three 3 pin fan connectors. They are normally mounted using velcro tape but I'm mounting mine on nylon stand-offs since the hub will be mounted on a surface that will be covered with sound dampening foam. The stand-offs are also more rigid, making plugging and unplugging fan cables an easier one-handed operation; it will make connecting and disconnecting the side panel fan a lot easier. Here is a link for several of them (the first 14 items on the page).
My System SpecsSystem Spec
04 Dec 2012   #645
paulpicks21

Windows 7 Professional 64 bit



Quote   Quote: Originally Posted by GeneO View Post
Yet another upgrade. Wasn't too happy with the EVGA so got a MSI non-reference 660 Ti. This had some coil whine (as did the EVGA but it wasn't as bad on the MSI). Replaced the Antec TP New 650W PSU with the new 2012 edition of the Seasonic X-850 and silence is heaven (even in heaven) - no more squeal. And for $120 newegg on Black Friday - what a deal!

Great looking rig there Gene
My System SpecsSystem Spec
04 Dec 2012   #646
paulpicks21

Windows 7 Professional 64 bit



I took a few pics of my rig since I changed the CPU and Mobo.

I must admit I didn't realise how dusty it was in there until I looked at the pics, the camera flash really shows it up Time for some cleaning on the weekend!


Attached Thumbnails

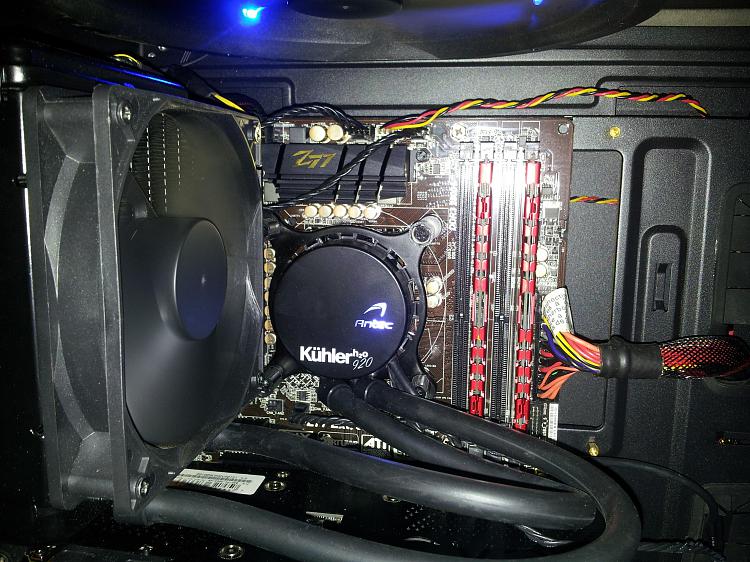

Show Us Your Rig [4]-20121204_215801.jpg   Show Us Your Rig [4]-20121204_215009.jpg   Show Us Your Rig [4]-20121204_215029.jpg   Show Us Your Rig [4]-20121204_215107.jpg   Show Us Your Rig [4]-20121204_215125.jpg

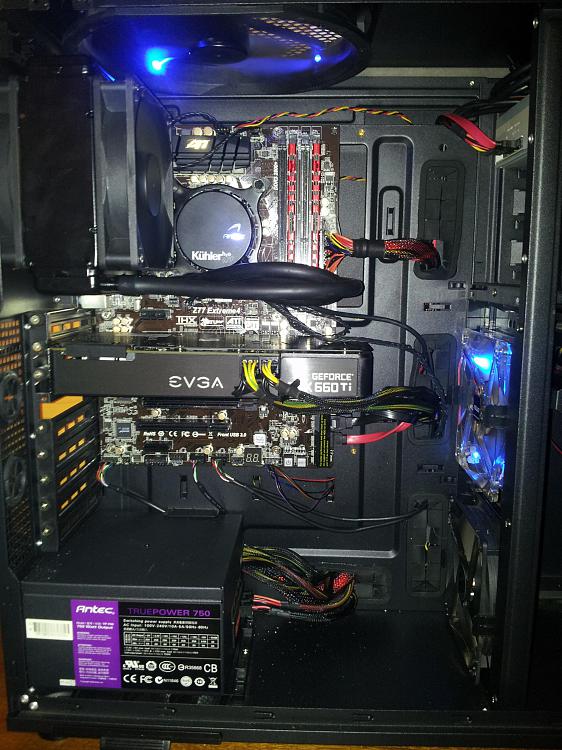

Show Us Your Rig [4]-20121204_215135.jpg   Show Us Your Rig [4]-20121204_215210.jpg
My System SpecsSystem Spec
04 Dec 2012   #647
essenbe

Windows 7 Enterprise X64/Windows 10 Enterprise X64/Windows 10 Pro X64/Linux Mint



Nice, neat job, Paul. Well done.
My System SpecsSystem Spec
04 Dec 2012   #648
Dave76

Microsoft Community Contributor Award Recipient

Windows 7 Ult x64 - SP1/ Windows 8 Pro x64



Nice rig, good work and looks great.
My System SpecsSystem Spec
04 Dec 2012   #649
GeneO

Windows 10 Pro. EFI boot partition, full EFI boot



Quote   Quote: Originally Posted by linnemeyerhere View Post
Gene, I like those PCI covers. I also notice a marked difference of the Seasonic modular cables between my 600w and your 850w. I also notice the powered fan expansion card you mounted on the floor of the case in the number one HDD cage, does that keep the cables tidy or does it provide fan control or better power delivery for the fans?
Thanks Alan (et al). The backside of the Fractal R3 case is pretty shallow so the flat cables made a big difference there. I think the R4 has more room back there.

The cable fan expansion is definitely for tidiness. The bottom fan + the front two are powered off of it. It is a bit flimsy though - it is held down with velcro.
My System SpecsSystem Spec
04 Dec 2012   #650
GeneO

Windows 10 Pro. EFI boot partition, full EFI boot



Nice looking rig Paul - looks like it has great airflow. Future plans include SLI 660 Ti?

Cheers
My System SpecsSystem Spec
