Windows 7: Show Us Your Rig [6]

21 Jan 2014   #1441
linnemeyerhere

Microsoft Community Contributor Award Recipient

Windows 7 Ultimate 64



For headers which are perpendicular to the mobo then these are helpful and needless to say much smaller and cleaner to route. They are very short and are just the ticket in some situations. Like any mod it either works for you or not.


My System SpecsSystem Spec
.
21 Jan 2014   #1442
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1



The height of the connector is about half a normal SATA one plus the cables come off at 90. In Alan's setup it means a long GPU card can fit without interference.

On my board the SATA connectors go in from the side, I use the 90 end on the drives.
My System SpecsSystem Spec
21 Jan 2014   #1443
Lady Fitzgerald

Win 7 Ultimate 64 bit



Quote   Quote: Originally Posted by sygnus21 View Post
Maybe I'm missing something but other than the Silverstone's being ultra thin, what's the other advantage?

You can get standard SATA cables with 90 degree angles. In fact most motherboards today come with a set of both straight and 90 ones.
The cables you are thinking of aren't the same as the Silverstones. The Silverstones come off at the side. Take another look at the cables in post #1436. The Silverstones are the ones with the really thin cable coming off the side. As far as I know, Silverstone is the only one that has a cable that comes off that direction. This one is close but comes off the opposite direction (I'm using one in my machine):

My System SpecsSystem Spec
.

21 Jan 2014   #1444
sygnus21

Windows 10 Pro



Quote   Quote: Originally Posted by linnemeyerhere View Post
For headers which are perpendicular to the mobo then these are helpful and needless to say much smaller and cleaner to route. They are very short and are just the ticket in some situations. Like any mod it either works for you or not.
Quote   Quote: Originally Posted by Britton30 View Post
The height of the connector is about half a normal SATA one plus the cables come off at 90. In Alan's setup it means a long GPU card can fit without interference.

On my board the SATA connectors go in from the side, I use the 90 end on the drives.
Right, I get that. However a standard 90 cable will also work in an area where a GPU overhangs that particular SATA port.

I was just asking. And yeah, it's yet another tool in the modder's tool chest

Thanks.
My System SpecsSystem Spec
21 Jan 2014   #1445
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1

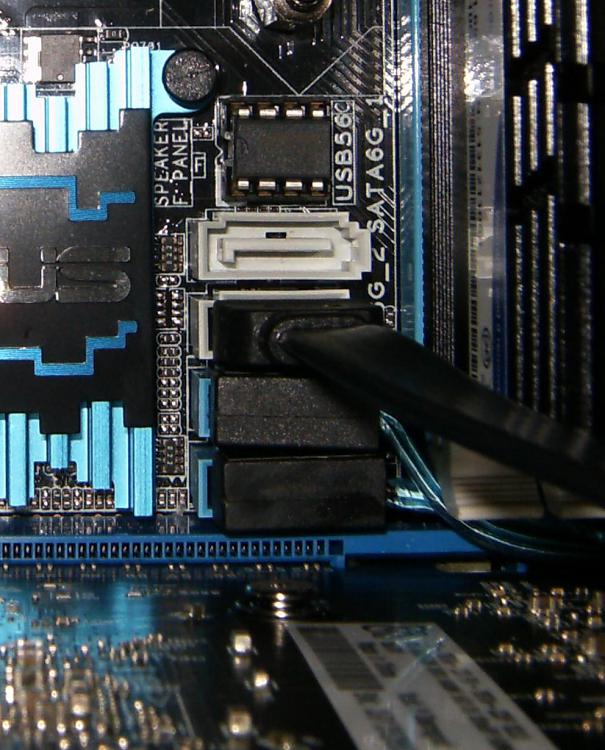

With Alan's arrangement 90 ends wouldn't work, one would cover the SATA header next to it.

Show Us Your Rig [6]-hpim3405.jpg


My System SpecsSystem Spec
21 Jan 2014   #1446
sygnus21

Windows 10 Pro



Doh!

Yeah I'm crystal now
My System SpecsSystem Spec
21 Jan 2014   #1447
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1



Quote   Quote: Originally Posted by sygnus21 View Post
Doh!

Yeah I'm crystal now
Now you're an official member of the Oldtimerz club.
My System SpecsSystem Spec
21 Jan 2014   #1448
sygnus21

Windows 10 Pro



Quote   Quote: Originally Posted by Britton30 View Post
Quote   Quote: Originally Posted by sygnus21 View Post
Doh!

Yeah I'm crystal now
Now you're an official member of the Oldtimerz club.
LOL - Yeah I guess I am
My System SpecsSystem Spec
22 Jan 2014   #1449
sygnus21

Windows 10 Pro



To paulpicks21 & Britton30

I just had to show this pic off

@ Paul, I took you suggestion and changed the fan rings from blue to white and must say the system looks a bit better

@ Gary, I know how you like my PC image so I thought I'd show you this...

Show Us Your Rig [6]-sniper-haf-x.jpg

Peace


My System SpecsSystem Spec
22 Jan 2014   #1450
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1



Yup. the white rings look much better Drew.
My System SpecsSystem Spec
