Windows 7: Official Seven Forums Overclock Leader boards [2]

02 Nov 2014   #1201
NoN

Windows 7 Professional SP1 - x64 [Non-UEFI Boot]



Quote   Quote: Originally Posted by NoN View Post
Quote   Quote: Originally Posted by essenbe View Post
Nice job, NoN.
Thanks!

A day ago I have ran IBT @4.4GHz and a delta room of 22C..Results were pretty encouraging and compare to today's delta is significant ratio.

One thing I do not fully understand is about "Cool Laboratory Pro/Ultra" Tim...

I went through a lot of reading at OCNet Delidded Club. Why some have their liquid dried up after fews months only on Die with their nickel plated IHS and some stays liquid for even a year??

If I ever use that one I want to be sure I can remove the IHS wihtout chipping the Die glass!!!!!
I kept my promise and i'm quoting myself after a month having said i will post new IBT results with a better Thermal Paste, which i did today by changing both the Delidded i5 "K" CPU and my Graphics Card.

Wasn't enough confident with the CLP or CLU on Die so took a very good non conductive one at 16W/Mk actual for both In & Out. Previous T.Paste was a 8,5W/Mk.

Kept @4.4GHz, Delta room 20C/21C.
I'm doing on the right time as its no winter time yet and my Delta room is are pretty like last month and the results were reaching 67C at max Temps.

I stayed under the 60C...(58C)!!!






Attached Thumbnails

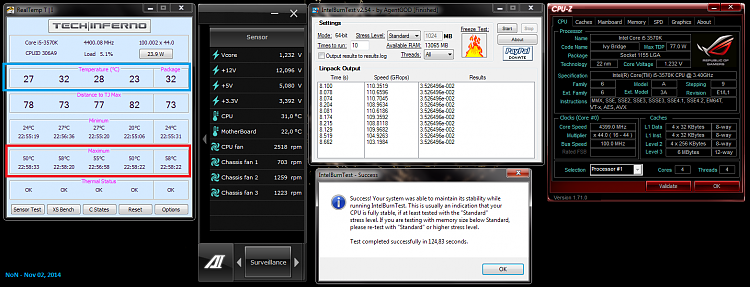

Official Seven Forums Overclock Leader boards [2]-capture.png   Official Seven Forums Overclock Leader boards [2]-capture2.png
My System SpecsSystem Spec
.
02 Nov 2014   #1202
N00berG00ber

Windows 10 Pro



Those are nice temps! I'm getting about 75 on IBT 4.4ghz 1.178v on h80i
My System SpecsSystem Spec
02 Nov 2014   #1203
NoN

Windows 7 Professional SP1 - x64 [Non-UEFI Boot]



Thanks N00ber,

That's exactly the Temps i was expecting when i delidded my Core. Previous were so high before, i even reached 105C TJM on my last valided overclock @4.9GHz.

I have an average of 10C minus gain since, with this new T.Paste!!

I might try at later date when the Thermal paste will have cure itself and if i can get around 90C @4.9ghz, i might try to beat my score @5.0GHz!
My System SpecsSystem Spec
.

02 Nov 2014   #1204
N00berG00ber

Windows 10 Pro



Quote   Quote: Originally Posted by NoN View Post
Thanks N00ber,

That's exactly the Temps i was expecting when i delidded my Core. Previous were so high before, i even reached 105C TJM on my last valided overclock @4.9GHz.

I have an average of 10C minus gain since, with this new T.Paste!!

I might try at later date when the Thermal paste will have cure itself and if i can get around 90C @4.9ghz, i might try to beat my score @5.0GHz!
nice man! u got me curious....

Heres my 4.4GHz


Attached Thumbnails
Official Seven Forums Overclock Leader boards [2]-capture.jpg
My System SpecsSystem Spec
02 Nov 2014   #1205
NoN

Windows 7 Professional SP1 - x64 [Non-UEFI Boot]

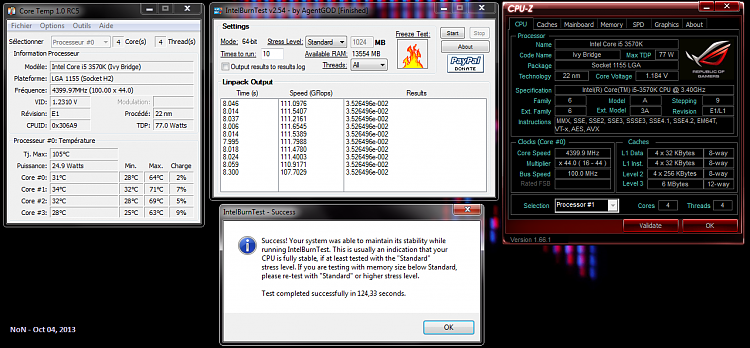

I found some @4.4GHz (less vCore) results back in October 04, 2013 made at the same weather & nearly same condition...with the Undelidded Core!

Highest were 63C to 71C...pretty much gained, now!

AH, N00ber! I dare you doing it again...remember your post #1162 and stay on the safe side!!!


Attached Thumbnails
Official Seven Forums Overclock Leader boards [2]-capture1.png
My System SpecsSystem Spec
02 Nov 2014   #1206
N00berG00ber

Windows 10 Pro



Quote   Quote: Originally Posted by NoN View Post
I found some @4.4GHz (less vCore) results back in October 04, 2013 made at the same weather & nearly same condition...with the Undelidded Core!

Highest were 63C to 71C...pretty much gained, now!

AH! I dare you doing it again...remember your post #1162 and stay on the safe side!!!

Yea, why r u using such a high voltage for 4.4? Also is that result under your custom loop?

Edit: nope. Won't do it. After my new GPU comes in, I'm calling my PC "perfect" and I'm not touching anything more.
My System SpecsSystem Spec
02 Nov 2014   #1207
NoN

Windows 7 Professional SP1 - x64 [Non-UEFI Boot]



No, the 2013 results were with an AirCooler 120mm in Push/Pull, was a good one, though!

Well i'm using such actual high vCore because my Razer keyboard driver that is at shame past under 1.224V and keep BSOD once in a while, also have a lot plug onto the motherboard so i try to keep on the safe side between 1.224 to pick 1.24V. I have to change for another brand sooner or later.
My System SpecsSystem Spec
02 Nov 2014   #1208
Dude

Windows 10 Pro X64



Looking good with the temps, here is mine, ran it at 4.5 but forgot cpuz for the ss

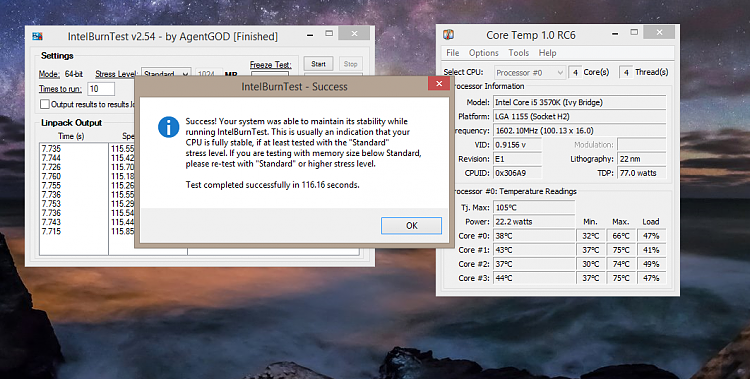

Official Seven Forums Overclock Leader boards [2]-ibt.png


My System SpecsSystem Spec
02 Nov 2014   #1209
NoN

Windows 7 Professional SP1 - x64 [Non-UEFI Boot]



Quote   Quote: Originally Posted by Dude View Post
Looking good with the temps, here is mine, ran it at 4.5 but forgot cpuz for the ss

Attachment 339186
With that Antec Kuhler 920 ?

Your i5 K Core looks better than was mine before, or?...Three of your cores are pretty close Temps but its no autumn time where you are, yet.
My System SpecsSystem Spec
02 Nov 2014   #1210
Dude

Windows 10 Pro X64



Yep, Antec 920. Your temps are amazing with the delid, but I still don't have the nerve to try it.
My System SpecsSystem Spec
