Windows 7: Official Seven Forums Overclock Leader boards [2]

19 Oct 2013   #271
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1



I can't get Prime to run on the i7-3770K system, workers stop after a few minutes. I've got it only at 4636MHz and Vcore up to 1.364V.


My System SpecsSystem Spec
.
19 Oct 2013   #272
Dude

Windows 10 Pro X64



That can be tricky to figure out. Reset BIOS back to default and start making changes one by one and checking. Sometimes one setting will be something prime doesn't like. Or as a quick test bump up the vcore. I'm guessing you are running blend. Try small fft's and see if it will run.
My System SpecsSystem Spec
19 Oct 2013   #273
kbrady1979

Windows 7 Professional 64bit SP1



Quote   Quote: Originally Posted by Britton30 View Post
I can't get Prime to run on the i7-3770K system, workers stop after a few minutes. I've got it only at 4636MHz and Vcore up to 1.364V.
Have you bumped up the BCLK? If so, I'd turn it back down to 100 and just work with the multiplier. 1.364v seems a bit high for that frequency though. Take some screenshots while you are in the BIOS and post them if you have the time, it could just be something not set right.
My System SpecsSystem Spec
.

19 Oct 2013   #274
essenbe

Windows 7 Enterprise X64/Windows 10 Enterprise X64/Windows 10 Pro X64/Linux Mint



I've run CPUs for years that couldn't pass Prime, and never had a BSOD. I know that is blastphemy in an overclocking forum, but it's true. I have also passed 12 hours of Prime, 12 hours of AIDA and 20 passes of IBT on max. Put a DVD in and started Handbrake and had a BSOD within 30 seconds. So, I still use the artificial tests, but I've concluded they don't necessarially prove you are stable. So far, I've never found an application that is better for stressing a CPU than Habdbrake. And it's a real useful program and not an artificial test. That's my story and I'm sticking to it. Remember how many had problems running the ROG Real Bench? That's because it used Handbrake. I use Handbrake frequently.
My System SpecsSystem Spec
19 Oct 2013   #275
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1



Yup I have the BCLK at 101 CPU offset +.060V. I'm trying a "-" of .020-.040 now with BCLK at 100, multiplier back to 45.
My System SpecsSystem Spec
19 Oct 2013   #276
essenbe

Windows 7 Enterprise X64/Windows 10 Enterprise X64/Windows 10 Pro X64/Linux Mint



Gary, set your CPU to manual not offset and set a 1.25 voltage with the bclk at 100 multiplier at 45 and try that. Then start moving the voltage up or down depending on your results until you find the lowest voltage you are stable at. What is your VID? Once you find the lowest voltage under prime and know the VID under Prime, the offset is fairly simple to figure out. What do you have LLC set to?
My System SpecsSystem Spec
19 Oct 2013   #277
kbrady1979

Windows 7 Professional 64bit SP1



Quote   Quote: Originally Posted by essenbe View Post
Gary, set your CPU to manual not offset and set a 1.25 voltage with the bclk at 100 multiplier at 45 and try that. Then start moving the voltage up or down depending on your results until you find the lowest voltage you are stable at. What is your VID? Once you find the lowest voltage under prime and know the VID under Prime, the offset is fairly simple to figure out. What do you have LLC set to?
That's exactly, almost to the word, what I was going to say. Try that.
My System SpecsSystem Spec
19 Oct 2013   #278
Britton30
Microsoft MVP

Windows 7 Ultimate X64 SP1

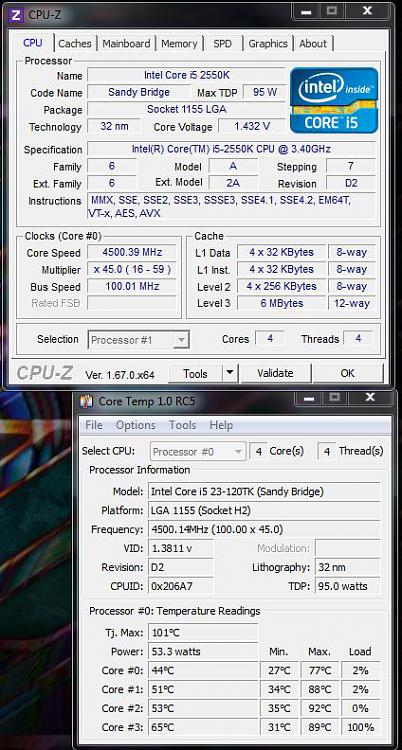

It won't start, I get BSOD with 1.25V manual at 45 and 44 multiplier. I also tried 1.60V, same thing. I put it back to + offset of .030 @ 45 and it will start but Prime quits. Here is a snip with Prime running with 3 cores shut down.

Official Seven Forums Overclock Leader boards [2]-cpuz-temps.jpg

I want a burger with this fry.

EDIT, LLC is set to Extreme.


My System SpecsSystem Spec
19 Oct 2013   #279
Dude

Windows 10 Pro X64



Will it run 5 passes of IBT without error?
My System SpecsSystem Spec
19 Oct 2013   #280
essenbe

Windows 7 Enterprise X64/Windows 10 Enterprise X64/Windows 10 Pro X64/Linux Mint



Gary set LLC to Ultra High. See if that makes a difference. Also, read this and set your BIOS exactly like it is except the ram settings and voltage, but leave the CPU Voltage to manual and try again. Ivy Bridge Overclocking Guide ? Asus Motherboards# One problem you have is your VID is very high, which you can't change.
My System SpecsSystem Spec
