Windows 7: Show Us Your Rig

15 Jun 2010   #1561
Lordbob75

Windows 7 Ultimate x64, Mint 9



BlackRose, not the worst wiring job I have ever seen (or done!)

~Lordbob


My System SpecsSystem Spec
.
15 Jun 2010   #1562
blackroseMD1

Windows 10 Tech Preview 9926 x64



Quote   Quote: Originally Posted by Lordbob75 View Post
BlackRose, not the worst wiring job I have ever seen (or done!)

~Lordbob
Haha, well, I took those pics a little bit ago, and then just went and bought myself a new case and the Corsair H50 water cooling system. More pics to come later
My System SpecsSystem Spec
15 Jun 2010   #1563
iseeuu




Quote   Quote: Originally Posted by z3r010 View Post
Quote   Quote: Originally Posted by noobvious View Post
Quote   Quote: Originally Posted by z3r010 View Post
I'm still waiting on one screen which was out of stock, but I've used one of my others to fill the gap.
I'm guessing that once you got them set up, you did the happy dance.
Nope, tbh I'm not feeling much love for it.
Quote   Quote: Originally Posted by z3r010 View Post
Quote   Quote: Originally Posted by Bare Foot Kid View Post
Looks good mate, I think I know what you mean though, too much/too big, I get the same feeling with 3.
No it's not enough/too small. I'm having trouble using such small screens and the angles they are at.

I'll give it a few days and if I cant get used to it I'll put it back how it was and find a place for an extra screen.
John;

It looks like there is not much adjustment for each arm? The arms are solid and don't allow the monitors to be moved? The web site says the monitors can adjust up and down at a 10% angle? But doesn't say how much side to side, or in and out adjustment?

Of course the arms can be bent, to give you a more preferred angle. You would need to find a plumbing shop or welders shop with a pipe bender, I would think ...

Perhaps you would prefer having three separate dual vertical monitor stands, the cost is about the same. That way you can keep the visual angle you had with your original setup, and with the second monitors mounted similar to the 6 monitor stand? You could even possibly keep your three original monitors as the separate stands will not restrict the size because of limited space between them.

I finally got around to getting my three 17" monitors connected to one computer and love it. I would hate to have to go back to just one monitor now. When funds are available, I plan to get a $30 PCI video card to add to my original computer for the third monitor. This temp setup is just too hot during Summer. I didn't mind it during the Winter but now ...

Cheers!
Robert
My System SpecsSystem Spec
.

15 Jun 2010   #1564
z3r010



I have changed the angles in the last 1/2 hour bringing the outer screens at a bigger angle and closer to me, this does seem a lot better and I think with a little more adjustment I may be able to live with this setup.
My System SpecsSystem Spec
15 Jun 2010   #1565
Bare Foot Kid
Microsoft MVP

W 7 64-bit Ultimate



Quote   Quote: Originally Posted by z3r010 View Post
I have changed the angles in the last 1/2 hour bringing the outer screens at a bigger angle and closer to me, this does seem a lot better and I think with a little more adjustment I may be able to live with this setup.


Good for you, keep us informed how it sorts.
My System SpecsSystem Spec
15 Jun 2010   #1566
Lordbob75

Windows 7 Ultimate x64, Mint 9



To be completely honest, I would just buy the mounting brackets for the monitors and build my own damned stand

~Lordbob
My System SpecsSystem Spec
15 Jun 2010   #1567
xarden

Windows 7 Enterprise



Quote   Quote: Originally Posted by Lordbob75 View Post
To be completely honest, I would just buy the mounting brackets for the monitors and build my own damned stand

~Lordbob
I agree.
Its always best to DIY as you can make it exactly how you want it.

By the way, what video card(s) are you using to run all this?
My System SpecsSystem Spec
15 Jun 2010   #1568
Lordbob75

Windows 7 Ultimate x64, Mint 9



Alright:

~Lordbob


My System SpecsSystem Spec
15 Jun 2010   #1569
blackroseMD1

Windows 10 Tech Preview 9926 x64

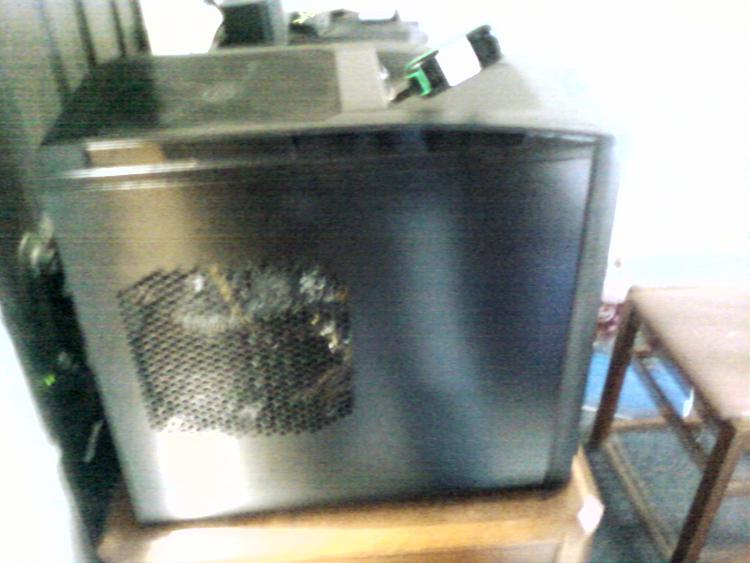

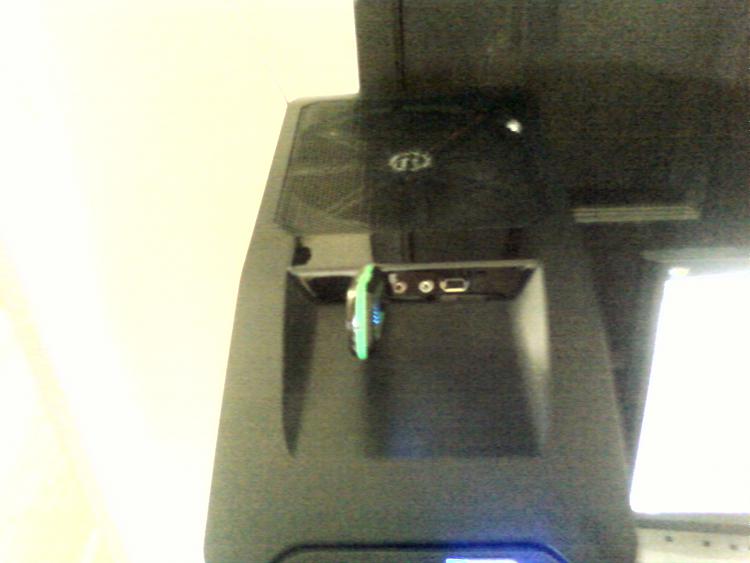

Well, got the Corsair H50 installed in my new case. Quite a nice drop in temps. Went from idling at 50-54 to now idling at 34-40.

Also, this new case has a ton of fans. One 120mm for the motherboard, one in the front for the HDDs, a 23cm fan on top, and the 140mm in the back that the H50 is using. It had another 23cm in the side panel, but my video card wouldn't allow me to close the case with the fan on. Sorry for the crappy pics, it's from my phone.


Attached Thumbnails
-0615181452.jpg   -0615181552.jpg   -0615185857.jpg   -0615185911.jpg
My System SpecsSystem Spec
15 Jun 2010   #1570
mpcrsc562

Windows 7 Ultimate x64



Quote   Quote: Originally Posted by blackroseMD1 View Post
Well, got the Corsair H50 installed in my new case. Quite a nice drop in temps. Went from idling at 50-54 to now idling at 34-40.

Also, this new case has a ton of fans. One 120mm for the motherboard, one in the front for the HDDs, a 23cm fan on top, and the 140mm in the back that the H50 is using. It had another 23cm in the side panel, but my video card wouldn't allow me to close the case with the fan on. Sorry for the crappy pics, it's from my phone.
Nice!
My System SpecsSystem Spec
