Windows 7: Virtual XP Machine - Copy

22 Aug 2009   #39
Kari

Microsoft Community Contributor Award Recipient

Windows 8.1 Pro Preview with Media Center


Virtual XP Machine - Copy

How to Copy a Virtual XP Machine in Windows 7

Note   Not...

My System SpecsSystem Spec
.

26 Nov 2010   #40
Kari

Microsoft Community Contributor Award Recipient

Windows 8.1 Pro Preview with Media Center



To start, I just added this to the beginning of the tutorial:
information   Information
Notice please:

This tutorial was written when we were still using first beta versions of Virtual PC and XP mode. This method to copy a VPC virtual machine was the most practical at that time. It still is a fully working way to copy a virtual machine.

Today, with the current version of VPC and XP Mode, copying a virtual machine is much easier. Basically, all you have to do is to copy a vhd-file to another location and create a new virtual machine using an existing vhd as told here.

Kari


November 2010
OK. Here are some links to other threads here on the Seven Forums where different methods to use and copy virtual machines are discussed:These threads and posts should cover quite a lot of this subject. Please check the Virtualization section, you should find answers to most common issues there. If answer or solution you are searching is not there, feel free to start a new thread.

@Spatel: The first link on the list above tells you how to setup XP Mode in Public folder so everyone can use it.

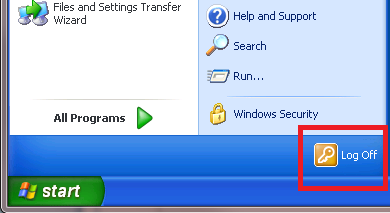

@DJFarmo: The lack of Shut Down button is easy to explain. Check these two screenshots out. First XP Mode with integration features enabled:

Name:  XPM_shutdown_integration_enabled.png
Views: 183
Size:  15.6 KB

Then the same XP Mode, this time integration features disabled:

Name:  XPM_shutdown_integration_disabled.png
Views: 179
Size:  14.5 KB

Kari



My System SpecsSystem Spec
.

17 Feb 2011   #41
Mehzuku

W7 Pro x64


The VM copy sequence fails randomly...

- But I doubt that failure is the steps itself. When I first installed "Virtual PC" on Windows 7 x64, I found the instructions in this thread and followed them, retaining the original as a baseline for future copies. Been using it for months.

- Today I want another VM (total of three; baseline and two active in use), so I find this post again, and follow the instructions again. Fail. Delete everything new. Follow the instructions again. Fail. Delete everything new. Follow the instructions again. Fail. Delete everything new. Follow the instructions again. Success.

- Now one could say I may have not followed the instructions. That would incorrect. I used Beyond Compare against the old and new XML configuration files at each step after the first failure to be sure the changes were accurately made. They were. All three times. So even if I did somehow bolo the first time because I blew through it, all three times after that I went slow, careful, triple and quadruple checked everything before attempting to load the VM. Yet it consistently said the VM could not be loaded because a machine of that name existed already, every time but the last one, with the very same changes each time.

- The moral of this post is this: if it fails the first, second, or even third time, don't assume it won't work. This is m$ suckware. It quite often fails for no reason, because that's how m$ is. Even now.

- One definition of insanity used to be performing the same action and expecting a different result. But this precisely what m$ is and does; same action, unique result.

- Or one could simply use VirtualBox and have it work quickly and easily right out of the gate for any number of virtual machines. Next time winbloze 7 pulls this crap that's exactly when I'm going to do. This flakey bull is what I get for using anything from Redmond to start with.

- But that doesn't detract from the tutorial. It's BANG-ON accurate. Period.
My System SpecsSystem Spec
02 Mar 2011   #42
Dingeling

Windows 7



Quote   Quote: Originally Posted by Kari View Post
Dingeling, welcome to the Seven Forums. I'm sorry it took almost a week before I noticed your question. I had accidentally deleted my subscription of this thread and did not receive a notification about new post.

Xp Mode consists of two virtual hard disk files, the base and the actual XP Mode. You get that error message because the base vhd and XP vhd must have the same language.

Your issue is quite easily solved using merged, single file XP Mode instead of differencing two vhd system. You should first merge your Japanese differencing disks, mount the merged vhd to a new virtual machine renaming it, then install the English XP Mode.


Some links for you to read, both to explain the terms used and to show how to merge differencing disks:Come back if you have more questions, I renewed my subscription so it's not going to take another week to get answers

Kari
Hi Kari,

It's been a while since I had time to mess around with this, and I gave it another try today, but unfortunately without success.

I decided to start with a completely clean slate and unistalled all Virtual PC's and XP Mode then reinstalled an English version of XP Mode.

Then I followed the instructions in Backup XP Mode (2) to merge the VHD. Next I created a new VM named XP-English, and at the Add a virtual hard disk step selected Use an existing VHD and pointed it to the newly created merged VHD file. I then unistalled XP Mode (so that I could reinstall it in a different language later). I then tried starting the newly created VM, but now get the error:
"XP-English could not be started because one of its virtual hard disks could not be located. Make sure that all the virtual hard disk files of the virtual machine are present in the configured location."

Any suggestions on how next to proceed?
My System SpecsSystem Spec
03 Mar 2011   #43
Kari

Microsoft Community Contributor Award Recipient

Windows 8.1 Pro Preview with Media Center



Quote   Quote: Originally Posted by Mehzuku View Post
- Today I want another VM (total of three; baseline and two active in use), so I find this post again, and follow the instructions again. Fail. Delete everything new. Follow the instructions again. Fail. Delete everything new. Follow the instructions again. Fail. Delete everything new. Follow the instructions again. Success.
Very interesting read. I have never failed with copying vm's using this method, but your experience ceratinly gives a lot to think.

Quote   Quote: Originally Posted by Dingeling View Post
Hi Kari,

It's been a while since I had time to mess around with this, and I gave it another try today, but unfortunately without success.
Although I knew it already, I had to be sure I'm not misleading you so I tested this once again following the steps told here to the letter. Absolutely no problems, the new vm using the merged XP Mode vhd is working perfectly.

Here's how:
  • Merge the XP Mode differencing disks as told in this post. Remember to rename it to something else than Windows XP Mode
  • Create a new vm using your merged vhd as told in this tutorial. Step 8 in tutorial tells how to use your new, merged vhd (existing vhd instead of a new vhd)
  • Launch the new vm to test it really works
  • Now uninstall Windows XP Mode using Control Panel > Programs > Programs and Features > Uninstall, or any third party uninstaller
  • If you want to uninstall XP Mode manually, these are the files you can delete. Notice that manual deleting does not remove registry entries:
    • In C:\Users\Your_Username\AppData\Local\Microsoft\Windows Virtual PC\Virtual Machines (default location):
      • Windows XP Mode.vhd
      • Windows XP Mode.vmc
      • Windows XP Mode.vmc.backup
    • In C:\Users\Virtual Machines (default location):
      • Windows XP Mode.vmcx
    • Folder C:\Program Files\Windows XP mode
It works.

Kari
My System SpecsSystem Spec
04 Mar 2011   #44
Dingeling

Windows 7



Quote   Quote: Originally Posted by Kari View Post
Quote   Quote: Originally Posted by Mehzuku View Post
- Today I want another VM (total of three; baseline and two active in use), so I find this post again, and follow the instructions again. Fail. Delete everything new. Follow the instructions again. Fail. Delete everything new. Follow the instructions again. Fail. Delete everything new. Follow the instructions again. Success.
Very interesting read. I have never failed with copying vm's using this method, but your experience ceratinly gives a lot to think.

Quote   Quote: Originally Posted by Dingeling View Post
Hi Kari,

It's been a while since I had time to mess around with this, and I gave it another try today, but unfortunately without success.
Although I knew it already, I had to be sure I'm not misleading you so I tested this once again following the steps told here to the letter. Absolutely no problems, the new vm using the merged XP Mode vhd is working perfectly.



Here's how:
  • Merge the XP Mode differencing disks as told in this post. Remember to rename it to something else than Windows XP Mode
  • Create a new vm using your merged vhd as told in this tutorial. Step 8 in tutorial tells how to use your new, merged vhd (existing vhd instead of a new vhd)
  • Launch the new vm to test it really works
  • Now uninstall Windows XP Mode using Control Panel > Programs > Programs and Features > Uninstall, or any third party uninstaller
  • If you want to uninstall XP Mode manually, these are the files you can delete. Notice that manual deleting does not remove registry entries:
    • In C:\Users\Your_Username\AppData\Local\Microsoft\Windows Virtual PC\Virtual Machines (default location):
      • Windows XP Mode.vhd
      • Windows XP Mode.vmc
      • Windows XP Mode.vmc.backup
    • In C:\Users\Virtual Machines (default location):
      • Windows XP Mode.vmcx
    • Folder C:\Program Files\Windows XP mode
It works.

Kari

Hi Kari,

Thanks again for your time and effort to help, but despite following the instructions to the letter, as soon as I uninstall XP Mode the new VM will no longer start, and gives the previously mentioned error. I've tried it twice, just to make sure I hadn't accidentally skipped something, but with the same result both times.

When I right-click the new VM and choose settings, it tells me the newly created merged VHD file that is ascociated with it is missing, and it indeed appears to have been deleted during the uninstall of XP Mode for some reason. (FYI, I'm creating the new merged VHD in the default location with the other VHD's).

I really can't figure out why it works for you but not for me, but I'm going to try again and then move the file somewhere else before I unistall XP Mode, and then move it back afterwards and see if that works.
My System SpecsSystem Spec
04 Mar 2011   #45
Kari

Microsoft Community Contributor Award Recipient

Windows 8.1 Pro Preview with Media Center



When you try the next time, choose another location when merging asks where to save it, not saving it in default location. Please come back to tell how it went.

I tested again, and I most definitely have no problems with merging XP Mode differencing disks and attaching the new vhd to a new vm.

Kari
My System SpecsSystem Spec
04 Mar 2011   #46
Dingeling

Windows 7



Quote   Quote: Originally Posted by Kari View Post
When you try the next time, choose another location when merging asks where to save it, not saving it in default location. Please come back to tell how it went.

I tested again, and I most definitely have no problems with merging XP Mode differencing disks and attaching the new vhd to a new vm.

Kari
Just tried it again, saved the merged VHD to a different folder, and just as an extra precaution made a copy and saved it to my desktop.

Uninstalled XP Mode and sure enough, the new merged VHD got deleted as part of the uninstall, and of course the new VM would not start.

Moved the copy from my desktop back to the original folder and the VM started up without a hitch.

So now we've found the sollution , but it's still a mystery to me why it acts differently for me than it does for you.


Thanks again for your assistance
My System SpecsSystem Spec
04 Mar 2011   #47
Kari

Microsoft Community Contributor Award Recipient

Windows 8.1 Pro Preview with Media Center



When I will find some extra time, I will check this issue a bit more and post back if I find something. Anyway, good to hear you fot it working.

Kari
My System SpecsSystem Spec
17 Jun 2011   #48
arkhi

Windows 2000 5.0 Build 2195



I haven't read the previous posts, but just to add, despite popular belief, you CAN have different Virtual XPs with the same product key. I have 2 of them running at the same time and updating simultaneously and they both work.
My System SpecsSystem Spec
29 Aug 2011   #49
fourgablesguy

Windows 7



I ran into an error launching the copy I made following these steps, cannot start virtual machine.. a configuration with the same name already exists. The solution was to delete the Windows XP Mode - Copy.vmcx created from the steps and just launch the Windows XP Mode.vmc file directly. Windows 7 then just creates the vmcx (which is just a shortcut to the real VM) for you. Thanks.
My System SpecsSystem Spec
