Windows 7: Windows Virtual PC - Boot from a CD in Virtual Machine


Windows Virtual PC - Boot from a CD in Virtual Machine

How to Boot from a CD or DVD in a Windows Virtual PC
Published by Brink
31 Jan 2010
Published by

How to Boot from a CD or DVD in a Windows Virtual PC


information   Information
This will show you how to boot from a CD or DVD in an existing virtual machine, including XP Mode, created in Windows Virtual PC.
Note   Note
In a virtual machine you will need to use a ISO of the bootable CD/DVD to boot from instead. If you do not have a ISO of the bootable CD/DVD, then you can use a free program like ISO Recorder or ISODisk to create a ISO from the CD/DVD.




Here's How:
1. If the virtual machine is open, then you will need to shut down and close it first.

2. Open the settings of the virtual machine.

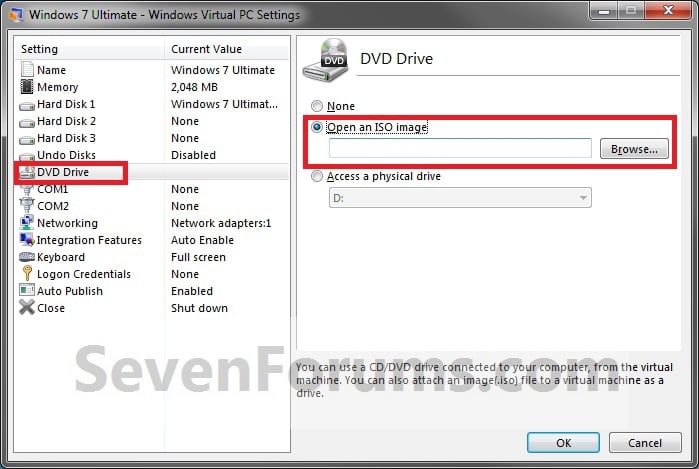

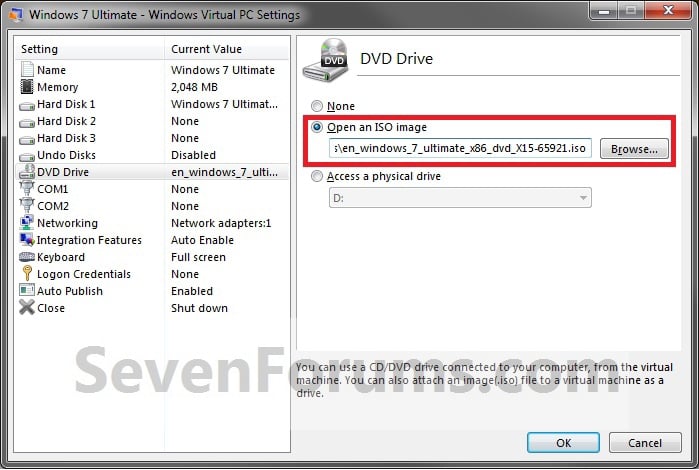

3. In the left pane select DVD Drive, then select (dot) Open an ISO image in the right pane. Click on the Browse button and navigate to the location of the ISO file of the CD/DVD, then select the ISO file and double click on it. (see screenshots below)
Name:  Settings-1.jpg
Views: 6007
Size:  157.1 KB

Name:  Settings-2.jpg
Views: 5860
Size:  162.4 KB

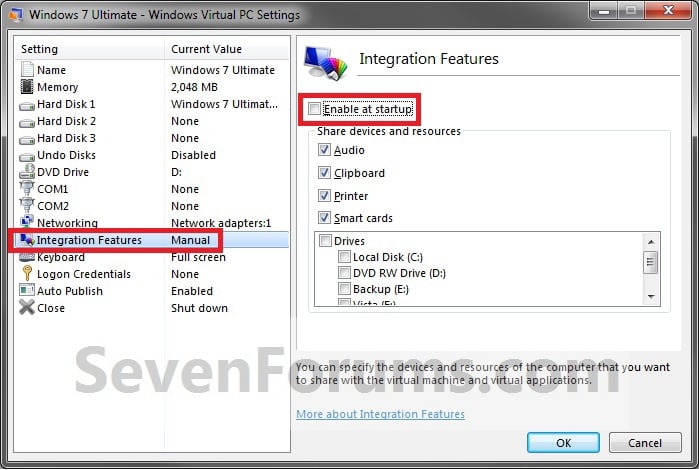

4. In the left pane select Integration Features, then make sure that the Enable at startup box in the right pane is unchecked. (see screenshot below)
Name:  Settings-3.jpg
Views: 6865
Size:  174.3 KB
5. Click on OK. (see screenshot above)

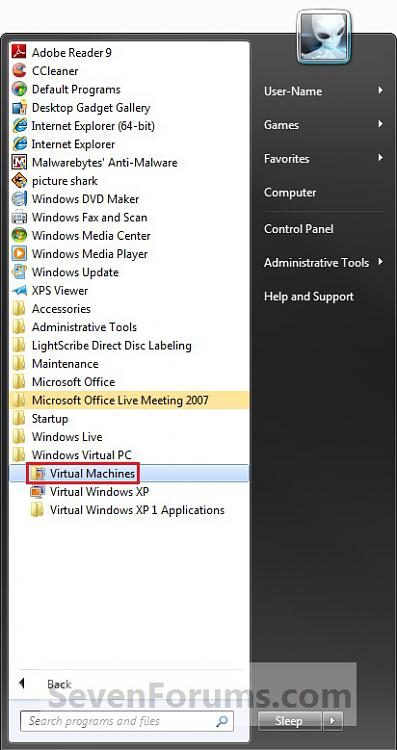

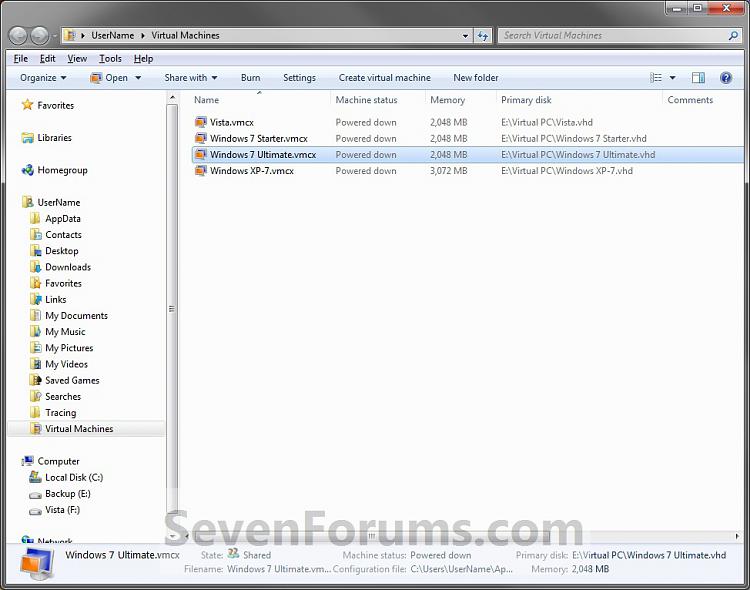

6. Start the virtual machine. (see screenshots below)
Windows Virtual PC - Boot from a CD in Virtual Machine-step1.jpg

Windows Virtual PC - Boot from a CD in Virtual Machine-vm.jpg

7. While the virtual machine is starting, tap the Delete key every second until you see the virtual BIOS Setup Utility screen. (see screenshot below step 8)
Note   Note
You will only have a few brief seconds to press the Delete key. If you miss it, you will need to restart the virtual machine and try again.

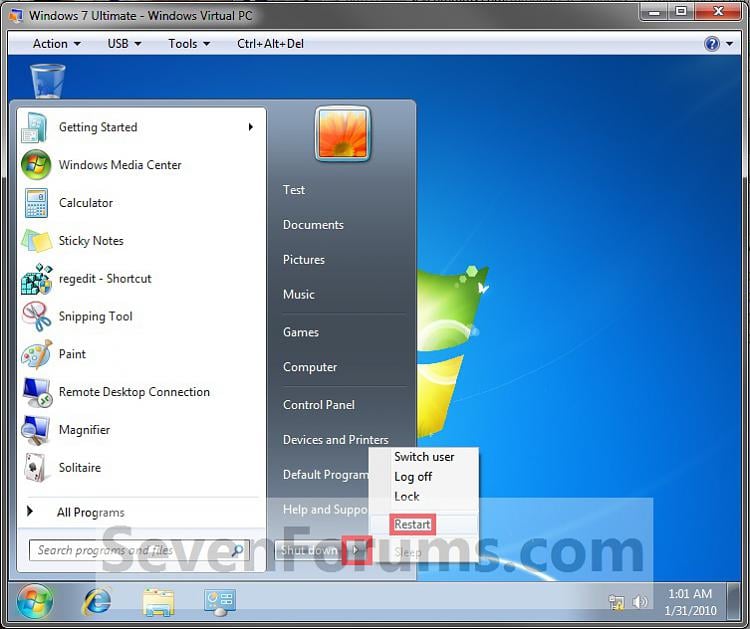

You could also click on Action (menu bar) and Restart.

Windows Virtual PC - Boot from a CD in Virtual Machine-restart.jpg


8. Using the arrow keys, select the Boot menu bar item, then select Boot Device Priority and press enter. (see screenshot below)
Name:  BIOS-1.jpg
Views: 5364
Size:  119.1 KB

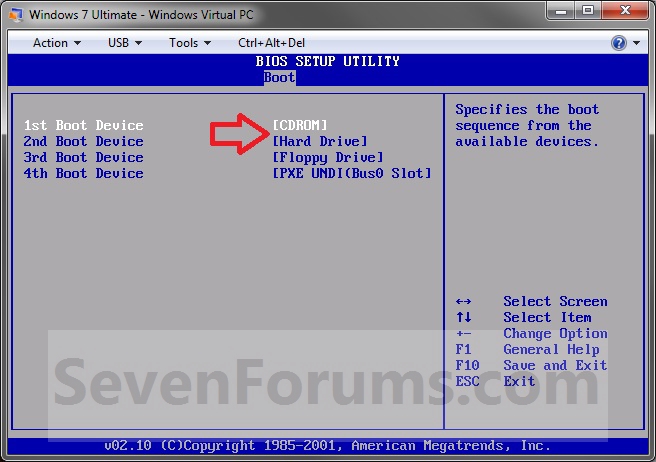

9. Select 1st Boot Device and press enter to change it to have CDROM listed as the 1st Boot Device and Hard Drive as the 2nd Boot Device. When done press the ESC (escape) key. (see screenshot below)
Name:  BIOS-2.jpg
Views: 5008
Size:  132.8 KB

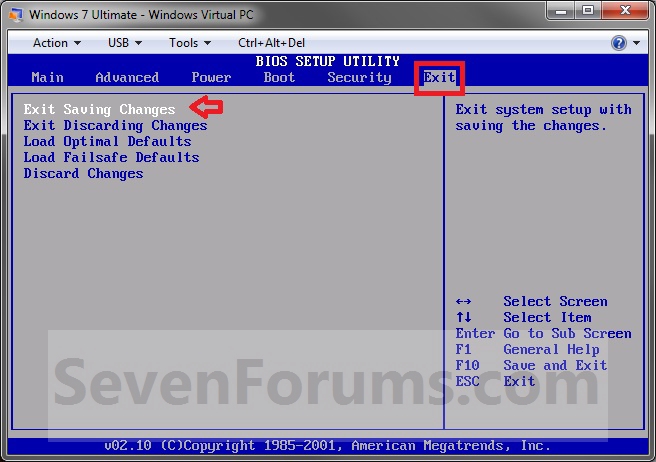

10. Select the Exit menu bar item, then select Exit Saving Changes and press enter. (see screenshot below)
Name:  BIOS-3.jpg
Views: 4831
Size:  135.8 KB

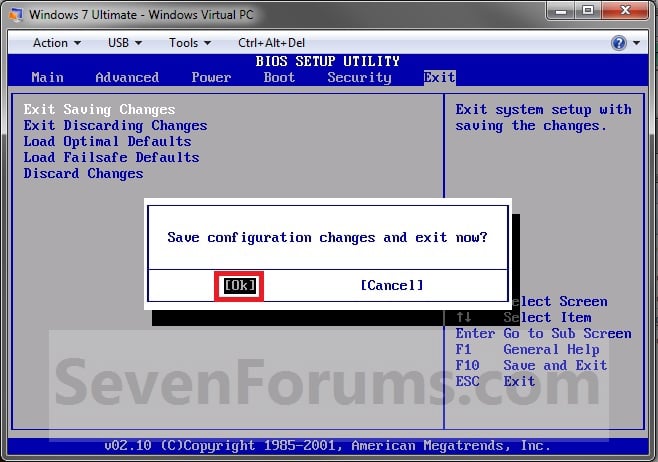

11. Select OK, and press enter. (see screenshot below)
Name:  BIOS-4.jpg
Views: 4795
Size:  158.6 KB

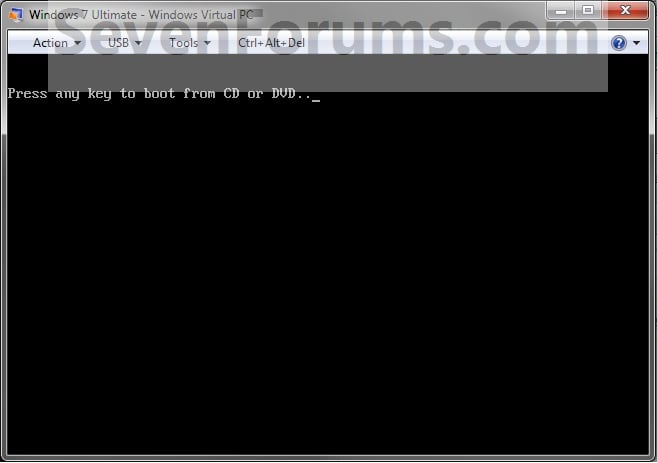

12. When you see the Press any key to boot from CD or DVD message, press a key (ex: spacebar) to boot from the ISO made from the CD or DVD.
Note   Note
You will only have 8 seconds to press a key when you see this message. If you miss it, you will need to restart the virtual machine and try again.

Click image for larger version

Name:	Restart.jpg
Views:	1544
Size:	204.7 KB
ID:	51166
Name:  press_any_key.jpg
Views: 4806
Size:  50.7 KB
13. When you are finished, you can select (dot) None in step 3 above to stop having the option to boot from the ISO.
That's it,
Shawn





31 Jan 2010   #1
Kari

Microsoft Community Contributor Award Recipient

Windows 8.1 Pro Preview with Media Center



You did it. Thanks.

Kari

My System SpecsSystem Spec
31 Jan 2010   #2
Brink
Microsoft MVP

64-bit Windows 8.1 Enterprise



You're welcome Kari. Thank you.
My System SpecsSystem Spec
05 Feb 2010   #3
oldman1881

win 7 pro



Wow, it is working, thanks! How can it is not doucmented some where by microsoft.
And it seems that you must set step 4 even after you did BIOS setup, is it ture?
My System SpecsSystem Spec
05 Feb 2010   #4
Brink
Microsoft MVP

64-bit Windows 8.1 Enterprise



You're welcome Oldman,

I'm sure that Microsoft probably has it documented somewhere.

Setting the integrated features to be enable or disabled from within the VM only affects that current session. It needs to be done from the VM settings in step 4 before the VM is opened to be able to boot to the BIOS in the VM. That's all.
My System SpecsSystem Spec
06 Feb 2010   #5
badboy

windows7 pro 64 bit



I can't seem to get past step 7. Every time I boot up the virtual pc (XP Mode), I tap the DELETE button like a mad man, but to no avail. The OS just takes over. Should I try some other buttons - F10, or something?

Never mind, I figured it out. Thanks
My System SpecsSystem Spec
06 Feb 2010   #6
Brink
Microsoft MVP

64-bit Windows 8.1 Enterprise



Hello Badboy,

I'm happy to hear that you figured it out. What turned out to be the solution for you?
My System SpecsSystem Spec
14 Feb 2010   #7
ddecker

Win7 Pro and ultimate 64 bit


I had trouble at step 7 too...

This is a great little how to, thanks for this.

When I got to step 7 I couldn't get the system to recognize the DEL key. I had integration auto-enabled and keyboard set to "full screen".

I toggled integration off and set the keyboard to "virtual machine" (probably unnecessarily) and closed the machine, then restarted it. Got into the BIOS, set the CDROM to boot first, closed the BIOS and rebooted to the ISO I wanted.

After I reset a password (my whole reason to this was to crack the password I forgot last year sometime), I shut the machine down, turned integration back on and set the keyboard back, and its working fine. It's now presenting as a windowed VM rather than hiding the bootup, which is also nice.

Anyway, thanks!
My System SpecsSystem Spec
14 Feb 2010   #8
Brink
Microsoft MVP

64-bit Windows 8.1 Enterprise



You're welcome Decker, and welcome to Seven Forums.
My System SpecsSystem Spec
20 Dec 2012   #9
slipdipidis

Windows 7 64bit Enterprise


That worked... with one slight change...

First of all, great work on the research and original post. Overall the process worked. One exception I had, since I had joined the VM to a domain which locked out the administrator account by Group Policy, then fallen off the domain due to the token expiration (hadn't logged in for over 90 days)... was that I needed to load my Hiren's CD so I could clear the built-in administrator account lockout... In my csae, I had to disable integration features, otherwise by Group Policy, I was not able to log in interactively using any account... after I disabled that feature, the rest of your walk through worked perfectly. Thank you.
My System SpecsSystem Spec
