Windows 7: Windows Firewall Shortcut - Create


Windows Firewall Shortcut - Create

How to Create a Windows Firewall Shortcut in Windows 7 and Windows 8
Published by Brink
01 Mar 2010
Published by

How to Create a Windows Firewall Shortcut in Windows 7 and Windows 8

information   Information
Windows Firewall is software that checks information coming from the Internet or a network, and then either blocks it or allows it to pass through to your computer, depending on your firewall settings.

This will tutorial show you how to create or download a Windows Firewall shortcut for Windows 7 and Windows 8.


EXAMPLE: Windows Firewall



OPTION ONE
To Download a "Windows Firewall" Shortcut
1. Click on the download button below to download the Windows_Firewall.zip file.
download
2. Click on Save, and save the .zip file to the desktop.

3. Open the .zip file and extract the Windows Firewall shortcut to the desktop.

4. Unblock the Windows Firewall shortcut.

5. In Windows 7, you can now Pin to Taskbar or Pin to Start Menu, add to Quick Launch, assign a keyboard shortcut to it, or move this shortcut to where you like for easy use.

6. In Windows 8 and 8.1, you can Pin to Taskbar on desktop, Pin to Start screen, add to Quick Launch, assign a keyboard shortcut to it, or move this shortcut to where you like for easy use.

7. When done, you can delete the downloaded .zip file on the desktop if you like, or save it to use again.







OPTION TWO
To Manually Create a "Windows Firewall" Shortcut
1. Right click on a empty area on desktop, and click on New and Shortcut.

2. Copy and past either location below into the location area, and click on the Next button. (See screenshot below)
C:\Windows\explorer.exe shell:::{4026492F-2F69-46B8-B9BF-5654FC07E423}

OR

RunDll32.exe shell32.dll,Control_RunDLL firewall.cpl

Name:  Step1.jpg
Views: 2289
Size:  93.6 KB

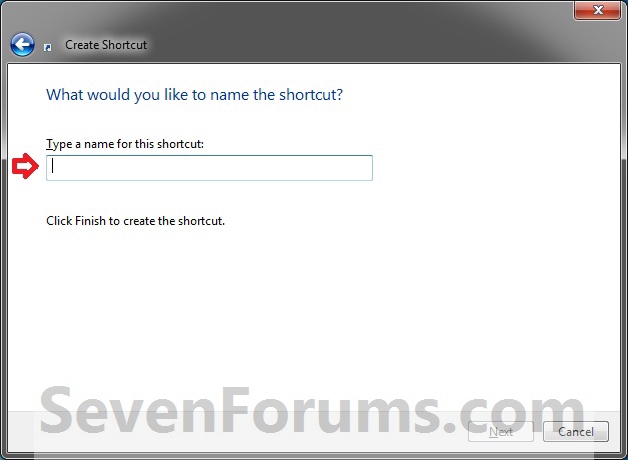

3. Type Windows Firewall for the name, and click on the Finish button. (See screenshot below)
NOTE: You can name this anything you would like though.
Name:  Step2.jpg
Views: 2301
Size:  71.5 KB
4. Right click on the new Windows Firewall shortcut on the Desktop and click on Properties.

5. Click on the Shortcut tab, then click on the Change Icon button. (See screenshot below)
Name:  Step3.jpg
Views: 2292
Size:  98.4 KB
6. In the line under "Look for icons in this file", copy and paste the location below and press Enter. (See screenshot below)
%SystemRoot%\system32\FirewallControlPanel.dll
Name:  Step4.jpg
Views: 2289
Size:  49.4 KB
7. Select the icon highlighted in blue above and click on OK. (See screenshot above)
NOTE: You can use any icon that you would like instead though.

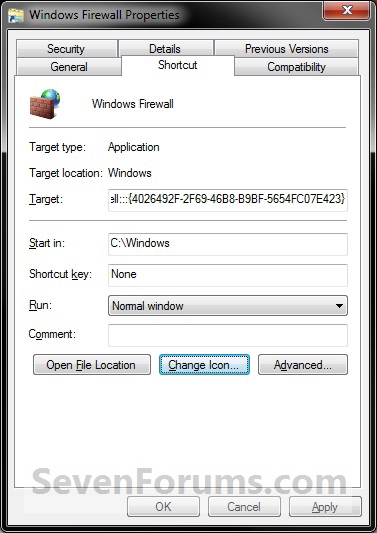

8. Click on OK. (See screenshot below)
Name:  Step5.jpg
Views: 2282
Size:  97.1 KB
9. In Windows 7, you can now Pin to Taskbar or Pin to Start Menu, add to Quick Launch, assign a keyboard shortcut to it, or move this shortcut to where you like for easy use.

10. In Windows 8 and 8.1, you can Pin to Taskbar on desktop, Pin to Start screen, add to Quick Launch, assign a keyboard shortcut to it, or move this shortcut to where you like for easy use.
That's it,
Shawn
