Windows 7: Devices and Printers Troubleshoot Shortcut - Create


Devices and Printers Troubleshoot Shortcut - Create

How to Create a "Devices and Printers Troubleshoot" Shortcut in Windows 7
Published by Brink
07 Mar 2010
Published by

How to Create a "Devices and Printers Troubleshoot" Shortcut in Windows 7

information   Information
This will show you how to create or download a Windows 7 Devices and Printers Troubleshoot shortcut. You can also Pin to Taskbar or Pin to Start Menu this shortcut, or move where you like for easy use.
Tip   Tip
You could also place any or all troubleshooting shortcuts that you would like to use as well from the related tutorials box at the bottom of this tutorial into a new folder, then pin the folder to the taskbar to make using them easier.

EXAMPLE: Troubleshooting Devices and Printers
Name:  Devices_and_Printers.jpg
Views: 1662
Size:  73.8 KB



OPTION ONE
To Download the "Devices and Printers Troubleshoot" Shortcut
1. Click on the Download button below to download the file below.
Devices_and_Printers_Troubleshoot.zip
download
2. Click on Save, and save the .zip file to the desktop.

3. Open the .zip file and extract the Devices and Printers Troubleshoot shortcut to the desktop.

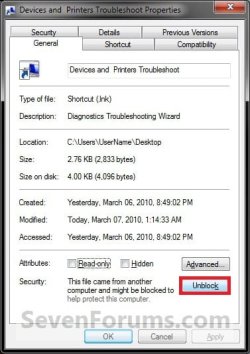

4. Right click on the Devices and Printers Troubleshoot shortcut, and click on Properties, General tab, and on the Unblock button. (See screenshot below)
NOTE: If you do not have a Unblock button under the General tab, then the shortcut is already unblocked and you can continue on to step 5.
Name:  Unblock.jpg
Views: 1694
Size:  132.5 KB
5. Move the shortcut to where you like for easy use.

6. When done, you can delete the downloaded .zip file on the desktop if you like, or save it to use again.







OPTION TWO
To Manually Create the "Devices and Printers Troubleshoot" Shortcut
1. Right click on a empty area on desktop, and click on New and Shortcut.

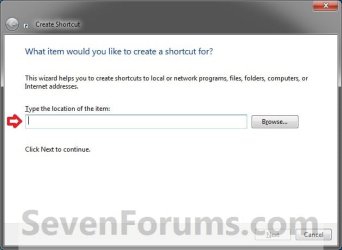

2. Copy and paste the location below into the location area, and click on the Next button. (See screenshot below)
%systemroot%\system32\msdt.exe -id DeviceCenterDiagnostic
Name:  Step1.jpg
Views: 1628
Size:  93.6 KB
3. Type Devices and Printers Troubleshoot for the name, and click on the Finish button. (See screenshot below)
NOTE: You can name this anything you would like though.
Name:  Step2.jpg
Views: 1615
Size:  71.5 KB
4. Move the shortcut to where you like for easy use.
That's it,
Shawn
