Windows 7: Safely Remove Hardware Shortcut - Create



Safely Remove Hardware Shortcut - Create

How to Create a "Safely Remove Hardware" Shortcut in Vista, Windows 7, and Windows 8
Published by Brink
18 Apr 2010
Published by

How to Create a "Safely Remove Hardware" Shortcut in Vista, Windows 7, and Windows 8

information   Information
Safely Remove Hardware allows you to safely shutdown and eject a storage device before just unplugging or disconnecting it to help prevent accidental data loss if data were still being copied or saved to or from the device. For example, if you have write caching enable on the device.

This tutorial will show you how to create or download a Safely Remove Hardware shortcut that you can use where you like in Windows.


EXAMPLE: Safely Remove Hardware
Name:  Safely_Remove_Hardware.jpg
Views: 2823
Size:  91.4 KB




OPTION ONE
To Download the "Safely Remove Hardware" Shortcut
1. Click/tap on the download button below to download the file below.
Safely_Remove_Hardware.zip

download
2. Save the .zip file to your desktop.

3. Open the .zip file and extract the Safely Remove Hardware shortcut to the desktop.

4. Unblock the Safely Remove Hardware shortcut.
Name:  Unblock.jpg
Views: 2843
Size:  128.9 KB
5. If you would like a better custom 256x256 pixel icon instead of the default smaller icon, then go to step 8 in OPTION TWO below to download and use it instead.

6. In Vista and Windows 7, you can now Pin to Taskbar (Windows 7 only) or Pin to Start Menu, add to Quick Launch, assign a keyboard shortcut to it, or move this shortcut to where you like for easy use.

7. In Windows 8, you can Pin to Taskbar on desktop, Pin to Start screen, add to Quick Launch, assign a keyboard shortcut to it, or move this shortcut to where you like for easy use.

8. When done, you can delete the downloaded .zip file on the desktop if you like, or save it to use again.






OPTION TWO
To Manually Create the "Safely Remove Hardware" Shortcut
1. Right click or press and hold on an empty area on your desktop, and click/tap on New and Shortcut.

2. Copy and Paste the location below into the location area, and click/tap on the Next button. (see screenshot below)
%windir%\System32\rundll32.exe shell32.dll,Control_RunDLL hotplug.dll


Name:  Step1.jpg
Views: 2800
Size:  93.6 KB
3. Type Safely Remove Hardware for the name, and click/tap on the Finish button. (see screenshot below)
NOTE: You can name this anything you would like though.
Name:  Step2.jpg
Views: 15682
Size:  10.1 KB
4. Right click or press and hold on the new Safely Remove Hardware shortcut, and click/tap on Properties.

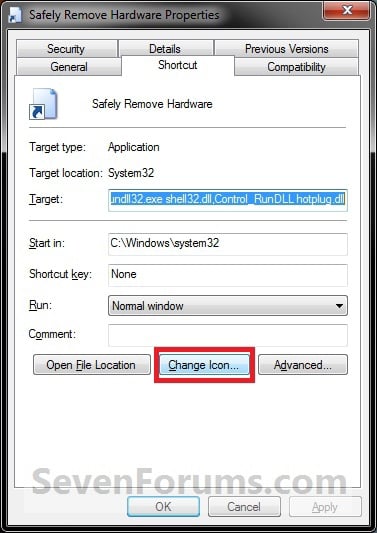

5. Click/tap on the Shortcut tab, then click/tap on the Change Icon button. (see screenshot below)
Name:  Step3.jpg
Views: 2791
Size:  100.9 KB
6. To Use the Default Icon
A) In the line under "Look for icons in this file", type in the location below, press Enter, and go to step 8 below. (see left screenshot below step 8)
%SystemRoot%\System32\hotplug.dll
7. To Download or Use a Custom Icon
NOTE: You can skip this step and go to step 6 if you do not want or need a better 256x256 pixel icon to use instead of the smaller default one.
A) You could click/tap on the Download button below to download and use this custom 256x256 pixel Safely_Remove_Hardware.ico file in a ZIP file below as this shortcut's icon if you like.
NOTE: The icon will need to remain saved at the same location for the icon to continue to display on the shortcut.
download

Name:  Safely_Remove_Hardware2.png
Views: 15701
Size:  13.5 KB
B) In the line under "Look for icons in this file", click/tap on Browse and navigate to the location of the saved 256x256 pixel icon you want to use. (see right screenshot below step 8)

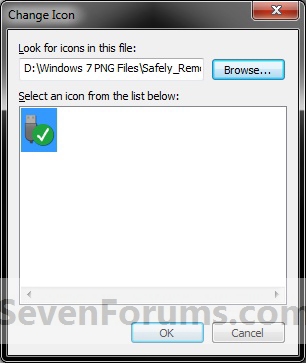

8. Select the icon in blue below, and click/tap on OK. (see screenshots below)
NOTE: Left sceeenshot for step 4, and right screenshot for step 5.
Name:  Step4A.jpg
Views: 2757
Size:  47.6 KBName:  Step4B.jpg
Views: 2742
Size:  45.3 KB
9. Click/tap on OK. (see screenshot below)
Name:  Step5.jpg
Views: 2774
Size:  99.6 KB
10. In Vista and Windows 7, you can now Pin to Taskbar (Windows 7 only) or Pin to Start Menu, add to Quick Launch, assign a keyboard shortcut to it, or move this shortcut to where you like for easy use.

11. In Windows 8, you can Pin to Taskbar on desktop, Pin to Start screen, add to Quick Launch, assign a keyboard shortcut to it, or move this shortcut to where you like for easy use.
That's it,
Shawn


.

29 Oct 2010   #1
need4steer

Windows 7 Ultimate 32bit



Thanks a lot for another great tutorial.

My System SpecsSystem Spec
.

29 Oct 2010   #2
Night Hawk

Windows 7 Ultimate x64, XP Mode, W8.1 Preview VM - 7 Pro x64 second remote tower



With all these flash drives and other usb devices I need something besides a system tray icon to click on! Keep 'em coming! Shawn
My System SpecsSystem Spec
29 Oct 2010   #3
Brink
Microsoft MVP

64-bit Windows 8.1 Enterprise



You're most welcome guys. Thank you.
My System SpecsSystem Spec
29 Oct 2010   #4
Night Hawk

Windows 7 Ultimate x64, XP Mode, W8.1 Preview VM - 7 Pro x64 second remote tower



You're most certainly Welcome! I prefer the larger screen for listing the devices presently in use over the small popup seen with the right click on the sys tray icon there. This should make things easier for anyone!
My System SpecsSystem Spec
30 Oct 2010   #5
need4steer

Windows 7 Ultimate 32bit



Thanks to www7t2b I found out another command to type in step 2:
Code:
"control hotplug.dll"
It gives the same result as
Code:
"C:\Windows\System32\rundll32.exe shell32.dll,Control_RunDLL hotplug.dll"
You can also run both from the start --> run window.

www7t2b posted about it at: usb hd not recognized as removable.
My System SpecsSystem Spec
11 Jun 2011   #6
1jiva1

Windows 7 Ultimate x64 OEM



Thank You just really does not seem appropriate. I would like to extend my sincere 'Gratefulness and Gratitude' for your help. I have spent days just searching for
answers that may have worked but I am very very NEW at all this stuff.
And I STILL have not a clue as what I may have did wrong to make this all happen.

Many Many Thanks

1jiva1......................Gary



Nothing Real Is Threatened................Nothing Unreal exists
Herein lies the Peace.......of.......G...... heh heh heh.....a Great
Mentor
My System SpecsSystem Spec
11 Jun 2011   #7
Brink
Microsoft MVP

64-bit Windows 8.1 Enterprise



Hello Jiva, and welcome to Seven Forums.
My System SpecsSystem Spec
07 Nov 2011   #8
mkr10001

Windows 7 Professional 32-bit



Is there a way to add this to the context menu?
My System SpecsSystem Spec
07 Nov 2011   #9
Brink
Microsoft MVP

64-bit Windows 8.1 Enterprise



My System SpecsSystem Spec
