Windows 7: Drive Letter - Add, Change, or Remove in Windows



Drive Letter - Add, Change, or Remove in Windows

How to Add, Change, or Remove a Drive Letter in Vista, Windows 7, and Windows 8
Published by Brink
06 May 2010
Default Drive Letter - Add, Change, or Remove in Windows

How to Add, Change, or Remove a Drive Letter in Vista, Windows 7, and Windows 8



information   Information
This will show you how to add, change, or remove a drive letter for any drive installed or connected to the computer in Vista, Windows 7, and Windows 8.
Note   Note
  • You can only assign the letters D to Z to each drive on your computer.
  • The letters A and B are usually reserved for floppy disk drives. If you do not have a floppy disk drive installed, then you could assign A and B to a drive, partition, or volume if you like. However, it's not recommended to assign A and B to anything other than a floppy or floppy substitute.
  • The letter C is reserved for the drive or partition that the operating system (Windows 7 or Vista) is installed on. If you multi boot operating systems, then whatever OS that you happen to startup in will always show as the C drive by default. You do not want to change or remove the C: drive letter.
  • If you change or remove a drive letter of a drive, partition, or volume that a shortcut or installed program references as their target location, then that shortcut or program may not work afterwards since it can no longer find that drive letter.



OPTION ONE
To Change, Add, or Remove Drive Letter in Disk Management
1. Press the Windows + R keys to open the Run dialog, type compmgmt.msc OR diskmgmt.msc, and press Enter.

2. If prompted by UAC, then click on Yes.

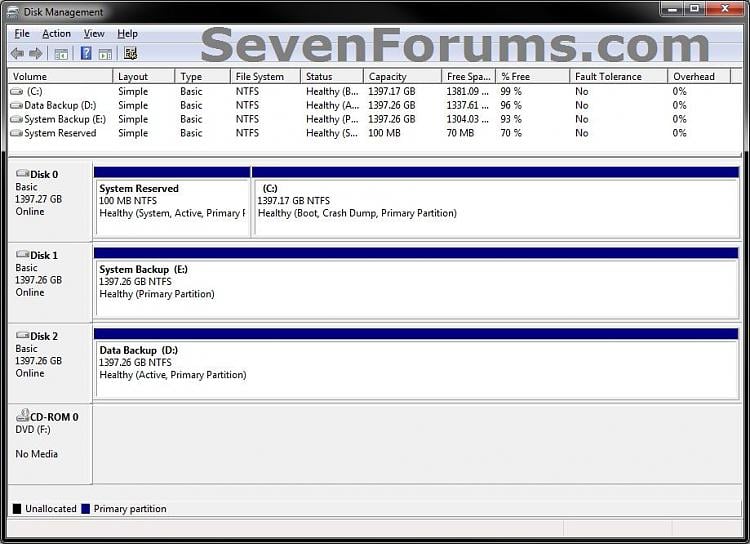

3. In the left pane of Computer Management, click/tap on Disk Management under Storage. (see screenshots below)
Drive Letter - Add, Change, or Remove in Windows-computer_management.jpg

Drive Letter - Add, Change, or Remove in Windows-disk_management.jpg

4. Do step 5, 6, or 7 for what you would like to do.

5. To Change a Drive Letter
NOTE: You cannot change a drive letter if the drive is either a system partition or a boot partition, like the partition or drive that Windows 7 is installed on. If you get an error, the partition or drive you are trying to change might be in use. Close any program or window that is using the partition or drive and try again.
A) Right click on a listed drive, partition, or volume letter that you want to change the drive letter of, and click on Change Drive Letter and Paths. (see screenshot below)
Name:  Step-2_Change-Remove.jpg
Views: 35115
Size:  24.6 KB
B) Click/tap on the Change button. (see screenshot below)
Name:  Step-2_Change-Remove.jpg
Views: 35115
Size:  24.6 KB
C) Select (dot) Assign the following drive letter, then select an available drive letter from the drop down box, and click/tap on OK. (see screenshot below)
Name:  Change-2.jpg
Views: 34717
Size:  24.3 KB
D) Click/tap on Yes to confirm changing the drive letter. (see screenshot below)
Name:  Change-3.jpg
Views: 34718
Size:  20.5 KB
E) If you get a AutoPlay pop-up window afterwards, then you can just close this. It indicates that the drive, partition, or volume has been assigned the drive letter. (see screenshot below)
Name:  Change-4.jpg
Views: 34674
Size:  32.2 KB
F) Go to step 8.
6. To Add a Drive Letter
NOTE: This is to assign a drive letter to a drive, partition, or volume if a drive letter has been removed or does not already have one assigned to it.
A) Right click on a listed drive, partition, or volume that does not have a driver letter that you want to add one to, and click/tap on Change Drive Letter and Paths. (see screenshot below step 5A)
Drive Letter - Add, Change, or Remove in Windows-add.jpg

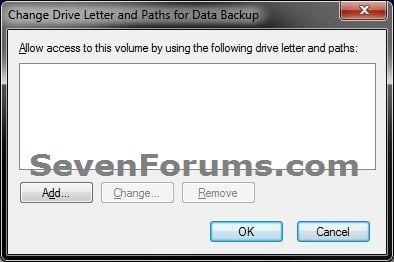

B) Click/tap on the Add button. (see screenshot below)
Name:  Add-1.jpg
Views: 34670
Size:  23.8 KB
C) Select (dot) Assign the following drive letter, then select an available drive letter from the drop down box, and click/tap on OK. (see screenshot below)
Name:  Add-2.jpg
Views: 34588
Size:  25.4 KB
D) Go to step 8.
7. To Remove a Drive Letter
NOTE: This will only remove the drive letter and not the drive, partition, or volume. This can be useful if you are getting a low disk space warning for this drive letter.
A) Right click on a listed drive, partition, or volume letter that you want to remove the drive letter of, and click/tap on Change Drive Letter and Paths.
Drive Letter - Add, Change, or Remove in Windows-step1.jpg
B) Click/tap on the Remove button. (see screenshot below)
Name:  Step-2_Change-Remove.jpg
Views: 35115
Size:  24.6 KB

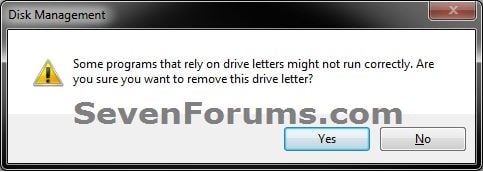

C) Click/tap on Yes to confirm removing the drive letter. (see screenshot below)
Name:  Remove-2.jpg
Views: 34562
Size:  22.2 KB
8. Close the Computer Management or Disk Management window.

9. Open the Computer window to confirm the changes.



OPTION TWO
To Change or Remove Drive Letter Manually in Registry Editor
1. Press the Windows + R keys to open the Run dialog, type regedit in the search box, and press Enter.

2. If prompted by UAC, then click on Yes.

3. In regedit, navigate to the location below, and do step 4 or 5 below for what you would like to do.. (see screenshot below)
HKEY_LOCAL_MACHINE\SYSTEM\MountedDevices

Drive Letter - Add, Change, or Remove in Windows-reg1.jpg
4. To Change a Drive Letter
WARNING: Do not change the C: drive letter.
A) Right click on a listed /DosDevices\(drive letter) (Ex: /DosDevices\D: ) that you want to change the drive letter of, then click on Rename. (see screenshot above)

B) Rename it with a drive letter that you want to use, and is not already listed here, and press enter. (see screenshot above)
For Example: If I wanted to change it from D: to K: , then I would rename it to /DosDevices\K: instead.
5. To Remove a Drive Letter
WARNING: Do not remove the C: drive letter.
A) Right click on a listed /DosDevices\(drive letter) (Ex: /DosDevices\D: ) that you want to remove the drive letter of, then click on Delete. (see screenshot above)

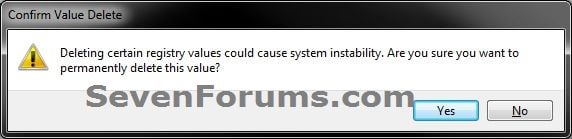

B) Click/tap on Yes to confirm the deletion. (see screenshot below)
Name:  Reg_Remove.jpg
Views: 34891
Size:  21.2 KB
6. Close regedit.

7. Log off and log on, or restart the computer to apply the changes.



OPTION THREE
To Add, Change, or Remove a Drive Letter in Command Prompt
1. Open either an elevated command prompt in Windows 7 or Windows 8, or a command prompt at boot for Windows 7 or Windows 8.
NOTE: Changing the drive letter at boot will not always result in having the same drive letter in Windows. Changing the drive letter while in Windows is preferred.

2. In the command prompt, type diskpart and press Enter. (see screenshot below step 6)

3. In the command prompt, type list volume and press Enter. (see screenshot below step 6)
NOTE: Make note of what the volume # is for the drive label/size that you wanted to add or change the drive letter of.

4. In the command prompt, type select volume # and press Enter. (see screenshot below step 6)
NOTE: Substitute # in the command with the volume number from step 3 that you wanted to add or change the drive letter of.
For example: If I wanted to add or change the drive letter of my listed volume 1 for my I: System Back drive, I would type the command below exactly and press Enter.
select volume 1
5. Do step 6 or 7 below for what you would like to do.

6. To Add or Change a Drive Letter
A) In the command prompt, type assign letter=letter and press Enter, and go to step 8 below. (see screenshot below)
NOTE: Substitute the second letter in the command with the drive letter that you wanted to add or change the drive from step 4 to.
For example: If I wanted to add or change the drive letter of my listed volume 1 for my I: System Back drive from I to E, I would type the command below exactly and press Enter.
assign letter=E
Name:  CMD.jpg
Views: 35379
Size:  86.2 KB
7. To Remove a Drive Letter
A) In the command prompt, type remove letter=letter and press Enter, and go to step 8 below.
NOTE: Substitute the second letter in the command with the drive letter that you wanted to remove the drive from step 4.
For example: If I wanted to remove the drive letter of my listed volume 1 for my I: System Back drive, I would type the command below exactly and press Enter.
remove letter=E
8. When successful, you're done. Close the elevated command prompt, or close the command prompt at boot and restart the computer.
That's it,
Shawn






Published by
07 Mar 2011   #1
mjf

Windows 7x64 Home Premium SP1



I am puzzled by the registry entries I have for mounted devices which I can change in line with the tutorial.
Here is my screen shot from Disk management showing option for changing "N".
Below are the mounted volumes. So far fine and consistent.
Drive Letter - Add, Change, or Remove in Windows-changedrvletter-1.jpg
Name:  Changedrvletter 2.jpg
Views: 34485
Size:  57.2 KB

But the "mounted devices" in the registry include many unmounted devices except the unmounted (B, O, P, Q, R, W).
Drive Letter - Add, Change, or Remove in Windows-changedrvletter-3.jpg

It also appears you can then make changes to unmounted device letters.
Can you shed any light on this?




My System SpecsSystem Spec
07 Mar 2011   #2
Brink
Microsoft MVP

64-bit Windows 8.1 Enterprise



Sure, if Windows uses the same letter for some commonly used unmounted devices (ex: USB flash drive) and has it listed in the registry as above, then you should be able to change the drive letter for it as well.
My System SpecsSystem Spec
09 May 2011   #3
Rhythmeister

7 Pro.



I'm trying to backup a load of files from a friend's WD2500BB-55GUCO IDE HDD which has XP on it, but in 7 Pro I get no drive letter assigned to either of the drive's partitions and I CANNOT change drive letter...so I can't access any of the files I need to backup

Is there any way for me to get 7 to assign a drive letter to each partition?
My System SpecsSystem Spec
.


09 May 2011   #4
Brink
Microsoft MVP

64-bit Windows 8.1 Enterprise



Hello Rythmeister,

Could you post a screenshot of your Disk Management window showing what it has for this drive?
My System SpecsSystem Spec
09 May 2011   #5
Rhythmeister

7 Pro.



Quote   Quote: Originally Posted by Brink View Post
Hello Rhythmeister,

Could you post a screenshot of your Disk Management window showing what it has for this drive?
Here you go Brink

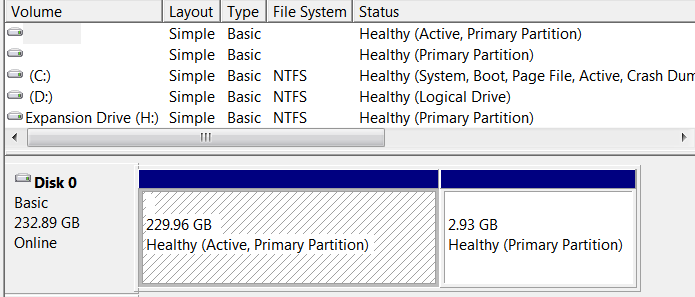

Name:  No drive letters.PNG
Views: 34296
Size:  23.0 KB

The only options I have are "change to dynamic disk" or "offline" for that drive o_O


My System SpecsSystem Spec
09 May 2011   #6
Brink
Microsoft MVP

64-bit Windows 8.1 Enterprise



Rhythmeister,

Since this is an IDE HDD, double check to see if the jumper on the HDD is set to "master".

Afterwards, if the computer tries to boot to the IDE HDD instead of your Windows 7 HDD, then press the F key (usually F10 or F11) at boot to bring up the boot menu to be able to select the Windows 7 boot drive. Next, see if it has a drive letter, or if you can add one to it in Disk Manangement now.
My System SpecsSystem Spec
10 May 2011   #7
Rhythmeister

7 Pro.



I got it sussed Brink, it was a Ubuntu installation on that drive. I never considered the possibility of a different file system but fired the stuff onto an external drive from Ubuntu without issue!
My System SpecsSystem Spec
10 May 2011   #8
Brink
Microsoft MVP

64-bit Windows 8.1 Enterprise



That's great news Rhythmeister. Thank you for posting back with your findings.
My System SpecsSystem Spec
23 Feb 2012   #9
pedrornac

Windows 7 Ultimate x64



Hi.
Sorry if I revive this too much ^^

After changing the disk where I have the O.S., the new installation of 7 does the same thing that happens to Rhythmeister, with my second disk. But the diference is I never install a O.S. on that disk and is NTFS.
And I can see the information inside from a Ubuntu live cd.
There is a way fix this, or i have to back up everythig to my new disk and make a new volume?

Sorry about my english :P
My System SpecsSystem Spec
