    How to Create a Windows 7 Universal Installation Disc
    Published by
    Designer Media Ltd


    How to Create a Windows 7 Universal Installation Disc

    Introduction

    For Windows users who installed or upgraded Windows Vista, there is one big difference that will be immediately noticed when installing or upgrading to Windows 7: The Windows 7 installation wizard no longer prompts, or asks, for the user to select which edition of the operating system to install. Instead, each Windows 7 DVD disc will automatically install the specific edition which it’s limited to. So a Windows 7 Home Premium disc will only install Windows 7 HP, a Pro disc will only install Pro, etc.

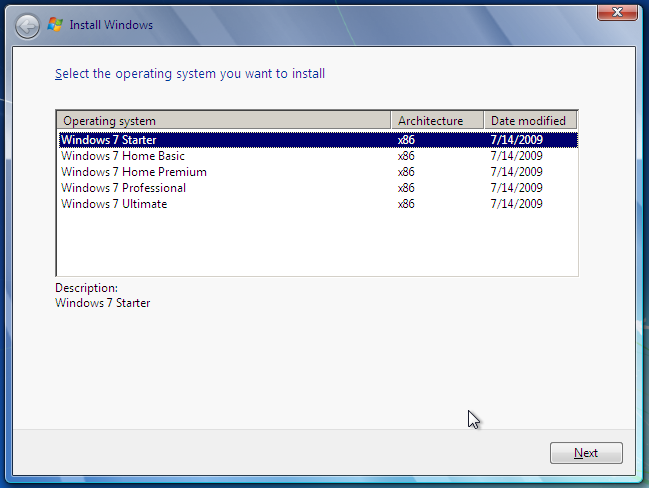

    Although Microsoft does not provide any such universal Windows 7 installation media, the function is indeed feasible. (see Screenshot below) A disc such as this can be especially helpful to PC technicians, IT staff, and the like who need to reinstall Win7 frequently. Remember you will still need a valid license key specific to the version you are installing. In addition, Microsoft has eliminated the differences between the retail and OEM install discs with Windows 7, so this disc can be used to reinstall Win7 on PC’s where the owner has lost, or is unable to find, the OEM restore discs. In order to create such a disc; just delete and remove the ei.cfg from any Windows 7 ISO to convert that image into a universal disc for all editions of Windows 7.

    Windows 7 Universal Installation Disc - Create-win7-universal-install-disc-ss.png




    STAGE 1 UNIVERSAL DVD - ALL 32 OR 64 BIT ON 1 DVD

    For any user who has the Windows 7 install DVD or ISO and wishes to make a universal installer disc now there is an easier way to modify the ISO. Normally this was accomplished by manually unpacking and extracting the contents of the ISO image (or copying files from DVD to HDD), deleting the ei.cfg and then repacking the installation files back into an ISO to burn. Users can now eliminate these tedious procedures by making use of the “ei.cfg Removal Utility”.

    The ei.cfg Removal Utility is a simple tool that will disable the ei.cfg from any Windows 7 ISO disc image, thereby converting the image into a “universal disc” that will prompt the user to select their preferred edition during setup. The ei.cfg Removal Utility works directly to patch the ISO image, by toggling the deletion bit in the UDF file table to instruct the operating system to ignore and remove ei.cfg, or treat it as if it does not exist. Best of all, the ei.cfg Removal Utility can reverse the patching to restore the ISO disc image to its original state when the tool is been used to apply on a disc image that previously been patched by the utility.

    The ei.cfg Removal Utility is a standalone portable app, and requires no installation. In fact, the program does not have much of a user interface at all. Simply selecting the target Windows 7 ISO, and the disc image (ISO) will be patched right away. So make sure a backup copy of your ISO is created beforehand.

    Download the ei.cfg Removal Utility here:eicfg_removal_utility.zip


    STAGE 2 UNIVERSAL DVD - ALL 32 AND ALL 64 BIT ON 1 DVD

    I was amazed at how easy it is to merge Win7 x86 and Win7 x64 editions (DVDs) in a single DVD or 4GB USB. The process is pretty simple, you need a copy of both any 32 bit and any 64 bit Windows 7 install DVD or ISO. Either copy the DVD's contents to a folder on a HDD, or extract the ISO's contents to a folder. Run 4 commands from the prompt, then create and burn your new Universal install DVD/USB.


    Requirements:

    1. WAIK (Windows Automation Installation Kit) Download WAIK
    2. Windows Win7 x86 and Windows Win7 x64 DVDs.
    3. An application that can extract the files from an ISO (if using a downloaded ISO). I use WinRAR, but many apps can do this extraction.
    4. An application that allows you to build a new iso or create a bootable DVD/USB. I use UltraISO for this.
    5. Single Layer DVD, compatible DVD Burner and, of course DVD burning software… or a 4GB USB flash drive.

    We will merge the four Windows 7 x64 editions into the Win7 x86 DVD contents, because Win7 x64 DVD has 64-bit content that can’t run some of the Win32 installation components.


    Getting Started


    1. Install WAIK in your Windows (doesn’t matter you are running Win7 or Windows XP)

    2. Make two folders, in my examples I use Win7_64 and Win7_32. Now copy both Windows 7 x64 and x86 DVDs contents into their respective folders. Or extract your downloaded ISO’s into their respective folder.

       Note
    If copying files over from a DVD to the above folders, you actually only need the Sources\install.wim file from the Windows 7 x64 DVD.


    3. Run WAIK command prompt (Run as Administrator if UAC enabled):
    Start à All Programs àWindows AIK àWindows AIK and PE Command Prompt

    4. Each and every Win7 edition has an index no. in the install.wim (WIM file), you can check using the following command:
    Code:
    Imagex/info G:\Win7_32\Sources\install.wim
       Note
    Where G:\Win7_32 represents the location of your 32 bit DVD files


    Windows 7 Universal Installation Disc - Create-win7-universal-install-disc-cmd-1.png

    The results will look something like above.
    This shows that INDEX=1 denotes Windows 7 Starter and so on… (you may have to scroll down to observe these entries)

    5. We will use the Imagex /export command to move our x64 WIM entries into the x86 wim file.
       Note
    The syntax for this command is:
       Note

    imagex /export src_file src_number src_name dest_file dest_name


    Now execute the following commands with appropriate INDEX no. to export a copy of the specified image to the Windows 7 32bit (x86) WIM file.

    For Win7 Home Basic x64:
    Code:

    Imagex/export G:\Win7_64\Sources\install.wim 1 G:\Win7_32\Sources\install.wim "Windows 7 Home Basic (x64)"
    For Win7 Home Premium x64:
    Code:

    Imagex/export G:\Win7_64\Sources\install.wim 2 G:\Win7_32\Sources\install.wim "Windows 7 Home Premium (x64)"
    For Win7 Professional x64:
    Code:

    Imagex/export G:\Win7_64\Sources\install.wim 3 G:\Win7_32\Sources\install.wim "Windows 7 Professional (x64)"
    For Win7 Ultimate x64:
    Code:

    Imagex /export G:\Win7_64\Sources\install.wim 4 G:\Win7_32\Sources\install.wim "Windows 7 Ultimate (x64)"
    6. After execution of above commands Win7_32's WIM file will be the universal WIM file that contains all version of Win7. You can export only desired versions into the image. For example you could make a Win7 DVD, which includes Win7 Ultimate x86 and x64 version only.

    7. Now to make bootable DVD image...













  1. Posts : 2,164
    Windows 7 Ultimate 64bit
       #1

    be nice to have a universal 32/64bit Disc.
      My Computer


  2. Posts : 1,939
    Windows 7 Ultimate 64 bit Steve Ballmer Signature Edition
    Thread Starter
       #2

    It isnt possible... you can however have one DVD with all 32 bit versions available and a second DVD with all 64 bit versions.
      My Computer


  3. Posts : 38
    Windows 7 x64 and x86
       #3

    it seems very nice. better than I edit the ei.cfg file and re-save the iso
      My Computer


  4. Posts : 13,354
    Windows 7 Professional x64
       #4

    Darryl Licht said:
    It isnt possible... you can however have one DVD with all 32 bit versions available and a second DVD with all 64 bit versions.
    Darryl, I have a thumb drive with all 9 versions on it.

    creating a 2 OS thumb drive

    I'm sure it could be put on a DVD as well.
      My Computer


  5. Posts : 5,056
    Windows 7 x64 pro/ Windows 7 x86 Pro/ XP SP3 x86
       #5

    Darryl Licht said:
    It isnt possible... you can however have one DVD with all 32 bit versions available and a second DVD with all 64 bit versions.
    Couple of methods described on this page, one using WAIK, another with a script.

    Win 7 Ultimate 32bit and 64 bit same DVD

    Explore away!
      My Computer


  6. Posts : 2,164
    Windows 7 Ultimate 64bit
       #6

    Jonathan_King said:
    Darryl Licht said:
    It isnt possible... you can however have one DVD with all 32 bit versions available and a second DVD with all 64 bit versions.
    Darryl, I have a thumb drive with all 9 versions on it.

    creating a 2 OS thumb drive

    I'm sure it could be put on a DVD as well.
    that is what I need to do. thumbdrive installs so much faster than a DVD.
    My current thumbdrive is only x86 so now I am going to attempt to make the dual version.. thanks.
      My Computer


  7. Posts : 9,606
    Win7 Enterprise, Win7 x86 (Ult 7600), Win7 x64 Ult 7600, TechNet RTM on AMD x64 (2.8Ghz)
       #7

    All in One DVD
    Attached Thumbnails Attached Thumbnails Windows 7 Universal Installation Disc - Create-all_in_one_win7_dvd.jpg
      My Computer


  8. Posts : 1,939
    Windows 7 Ultimate 64 bit Steve Ballmer Signature Edition
    Thread Starter
       #8

    Errr, I didnt THINK it was possible (all 32 and 64 bit versions on one DVD)... at least until yesterday.

    I will add to this tutorial adding the how-to for the WHOLE ENCHILADA on one single layer DVD or any 4GB USB flash. As I now have both!

    Thanks to all who showed me the error of my ways!
      My Computer


  9. Posts : 1,403
    Win 7 Ultimate 32bit
       #9

    I have not added Enterprise to mine,, but having All the versions in both 32bit and 64bot on one stick in one WIM file is pretty cool. And it takes up one 4G stick, not sure how much if anything adding both Enterprise to it would add.
      My Computer
