Windows 7: eSATA problem Windows 7 x64

10 May 2011   #21
smithsunknown

Windows 7 Home Premium x64



@James Colbert Sadly, I do not but I might eventually be able to get a hold of a friend who has a laptop with an eSATA/USB combo port to try the adapter. Btw, The card works fine because I tried just an eSATA drive plugged into the cable & Windows recognized the drive.

@essenbe I understand what you are talking about.

My assumption on everything is that is has something to do Windows and its recognition of eSATA drives. OR it could be the fact that my PCI card is only eSATA; so that when I have the eSATA plugged in as well as USB, Windows get confused on which it is supposed to read.


Thanks for everyone's help so far.


My System SpecsSystem Spec
.
10 May 2011   #22
James Colbert




Quote   Quote: Originally Posted by smithsunknown View Post
@James Colbert Sadly, I do not but I might eventually be able to get a hold of a friend who has a laptop with an eSATA/USB combo port to try the adapter. Btw, The card works fine because I tried just an eSATA drive plugged into the cable & Windows recognized the drive.
So it is either the esata controller on on the seagate or the card controller driver on the system. I suspect the latter. AHCI can be a pain at times.

In fact, I was just having issues with an external sata hotswap. If the system booted with the drive connected, it would show. If I inserted it into the drive dock for the first time after a boot, it was fine. If I disconnected the drive and then tried to reconnect the same or another drive later, I would have to force a hardware rescan in order for the drive to be recognized. I solved the problem by removing the windows standard AHCI controller driver and replacing it with Gigabytes gsata driver. Problem solved.

That said, perhaps that provides us with another simple check that could provide us with pertinent information. I assume that you have likely tried a hardware rescan, but I guess it's worth mentioning. Apologies if you've already tried this or know how:

In
Device manager, right click on IDE ATA/ATAPI controllers (yours may read different) and choose 'scan for hardware changes'. Does the drive show up now (usually, an autoplay window will appear, asking you what you want to do)?

James
My System SpecsSystem Spec
10 May 2011   #23
smithsunknown

Windows 7 Home Premium x64



@James Colbert I've already tried that, & it doesn't seem to help sadly.
My System SpecsSystem Spec
.

14 May 2011   #24
smithsunknown

Windows 7 Home Premium x64



Anybody else have an idea for this?????
My System SpecsSystem Spec
15 May 2011   #25
James Colbert




In re-reading all of the info in this thread, your setup seems a bit complicated. Have you talked to Seagate about this? Is the GoFlex STAE103 the cable you have? The sata>esata cable you link to seems a bit 'alien' here. Does Seagate recommend that a sata>esata conversion cable be used? What about the card? Is it deemed compatible by Seagate?

I think that is your next step. Determine if your 'topology' is correct. Please post back and let us know what they say.

James
My System SpecsSystem Spec
31 Jul 2011   #26
gamehedz

windows 7 ultimate 32bit



you do know that windows 7 64bit doesnt support hard drives 1tb or bigger through esata this is why its not working it will either have to be plugged in to the internal sata ports or via usb caddy

i was looking for the same answer and came across the article in the microsoft knowledge base

hope this helps somewhat
My System SpecsSystem Spec
31 Jul 2011   #27
James Colbert




Quote   Quote: Originally Posted by gamehedz View Post
you do know that windows 7 64bit doesnt support hard drives 1tb or bigger through esata this is why its not working it will either have to be plugged in to the internal sata ports or via usb caddy

i was looking for the same answer and came across the article in the microsoft knowledge base

hope this helps somewhat

Hi gamehedz . Thanks for the post. Could I impose on you to post the link? It might help someone googling for the solution.
My System SpecsSystem Spec
31 Jul 2011   #28
essenbe

Windows 10 Pro/ Windows 10 Pro Insider

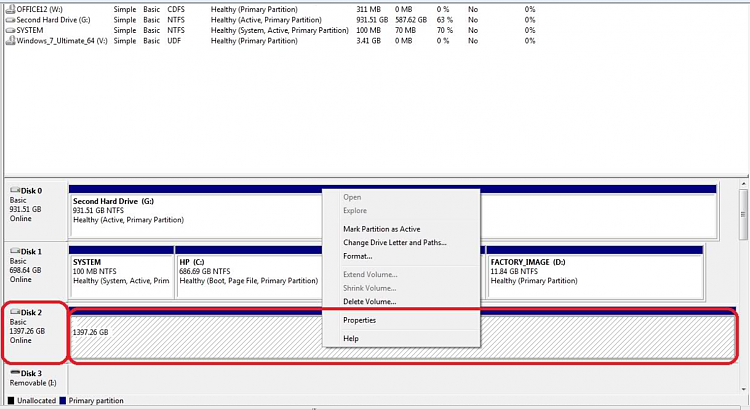

Below is the screenshot of disk management you posted. I an assuming the dropdown menu shown is for the drive in question. Click the one labeled change drive letter or path, in the next dialog box that opens, click add. You will be given a drive letter to use or you can select a different one. choose a drive letter.
eSATA problem Windows 7 x64-dm.png


My System SpecsSystem Spec
01 Aug 2011   #29
gamehedz

windows 7 ultimate 32bit



i will see if i can find it again for you and post back later
My System SpecsSystem Spec
01 Aug 2011   #30
gamehedz

windows 7 ultimate 32bit



this might help for win7 32bit users

check Error message when you start a Windows 7 or Windows Vista-based computer after you change the SATA mode of the boot drive: "STOP 0x0000007B INACCESSABLE_BOOT_DEVICE"

It states "... During the Windows 7 or Windows Vista installation process, any unused storage drivers are disabled. This behavior speeds up the operating system's startup process. When you change the boot drive to a driver that has been disabled, you must enable the new driver before you change the hardware configuration. ..."
Even though this talks about BOOTing from SATA, I found that it concerns eSATA, also.
After I had installed Windows 7, I bought an esata Thermaltake Blacx and it was not recognized.
I had to enable AHCI in the bios (which then crashed my Windows 7 system at boot time).
I then (from Safe mode) changed HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\Msahci to zero(0) and re-booted. It came up and recognized my drive which I can power-on, power-off, etc. without needing to re-discover it.
My System SpecsSystem Spec
