Windows 7: My first solid state.

30 Aug 2011   #121
DeaconFrost

Windows 7 Ultimate x64 SP1



If you are going to try and install again in AHCI mode, get the Intel drivers first and try loading them during the install, to see if that makes a difference.


My System SpecsSystem Spec
.
30 Aug 2011   #122
panais

Windows 7 Ultimate 64bit SP1



Quote   Quote: Originally Posted by essenbe View Post
Quote   Quote: Originally Posted by panais View Post
Quote   Quote: Originally Posted by essenbe View Post
Seth, I searched also. Most of the ones I found say it is hardware related and usually either ram or hard drive.
You mean the above last error?
The error codes you posted. BCCode f4. Post 106
Ok i will try the easy way first.

AHCI : Enable in Windows 7 / Vista

You know in AHCI is fast though,i installed windows in 14 minutes. .

Startup in few seconds,shutdown in 3-5 seconds.

I didnt check count with IDE.

Well i will try now the regedit tweak.

Restart..................


Attached Thumbnails
My first solid state.-ahci-enable.png
My System SpecsSystem Spec
30 Aug 2011   #123
TVeblen

Microsoft Community Contributor Award Recipient

Windows 7 64 Bit Home Premium SP1



Hi everyone. I've been following the thread to learn. I have not worked with an AWARD BIOS since the modern SATA MBs came out, so I am a true NEWB on this subject.

But one thing has been bothering me throughout: Is it normal in a Award BIOS to have SATA disks listed as Master/Slaves as in photo 1 below if you have the Intel Controller in AHCI mode?

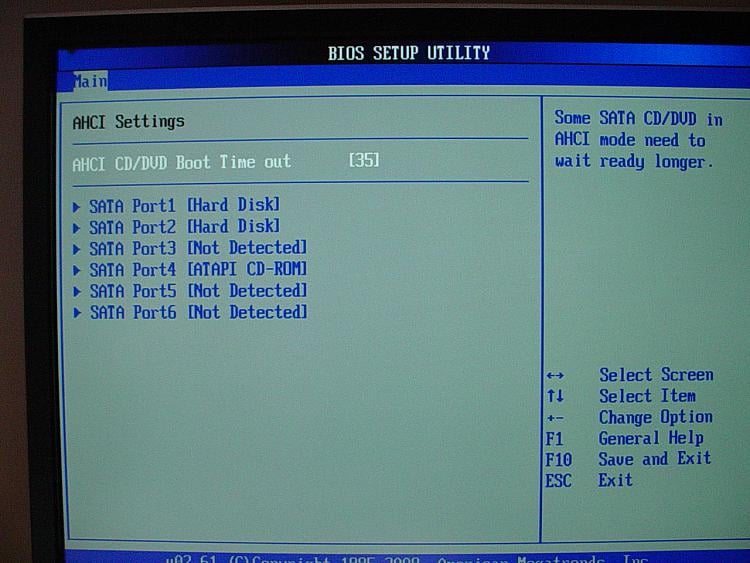

In my AMI BIOS if the controller is set to AHCI mode then the disks show up as SATA Ports 1 through 6 as in photo 2 below.

If I set the controller to IDE mode then the disks show as IDE CHANNELS, not SATA Ports. I can't remember if there is any Master/Slave designation.

I only mention this because if this were not normal AWARD behavior, it might indicate a problem with the controller or the BIOS.


Attached Thumbnails
My first solid state.-30082011724.jpg   My first solid state.-bios-003.jpg
My System SpecsSystem Spec
.

30 Aug 2011   #124
DeaconFrost

Windows 7 Ultimate x64 SP1



No, my drives in AHCI are not listed during the IDE section of the POST...they are only listed later on in a screen showing AHCI connected devices. As for in the BIOS itself, I don't think mine show as IDE devices, but I will have to verify when I get home.
My System SpecsSystem Spec
30 Aug 2011   #125
panais

Windows 7 Ultimate 64bit SP1



Ok iv done the AHCI tweak.

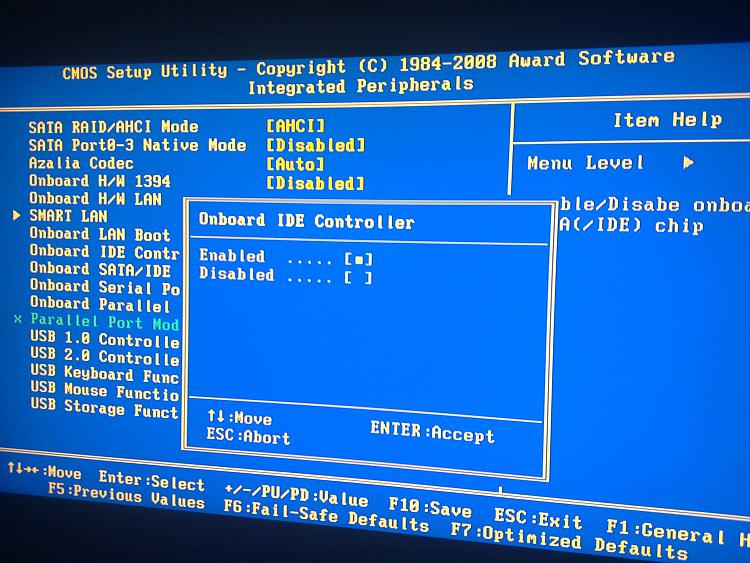

Here how is look like now,do you see anything wrong?

Also what to do with the Onboard IDE Controller? Enable or Disable?


Attached Thumbnails
My first solid state.-30082011732.jpg   My first solid state.-30082011731.jpg
Attached Images
My first solid state.-capture.png My first solid state.-.png
My System SpecsSystem Spec
30 Aug 2011   #126
essenbe

Windows 10 Pro/ Windows 10 Pro Insider



I'm not familiar with gigabyte boards, but I would disable on board IDE controller and on board sata/IDE controller set to ahci.
My System SpecsSystem Spec
30 Aug 2011   #127
DeaconFrost

Windows 7 Ultimate x64 SP1



In your screenshots, the Controller Mode is still set to IDE. That should have an AHCI option as well.

As for the drivers, they are right on Gigabyte's driver page for your board. Download them and extract them...then have them handy on a flash drive during the install. You'll come to a point where you are shown your hard drive and given the option to load other drivers. Have the flash drive in and choose that option.

GIGABYTE - Motherboard - Socket 775 - GA-X38-DS4 (rev. 1.0)

All you have to do is choose Windows 7 x64 and it will be the last driver on the page.
My System SpecsSystem Spec
30 Aug 2011   #128
essenbe

Windows 10 Pro/ Windows 10 Pro Insider



Panais, as Deacon suggested, if you boot into windows, install the Intel IRST drivers.
My System SpecsSystem Spec
30 Aug 2011   #129
pooch

Windows 7 Ultimate x64



I think you should be able to disable it, if you get problems you can always enable it again.
are you still getting blue screens?
My System SpecsSystem Spec
30 Aug 2011   #130
panais

Windows 7 Ultimate 64bit SP1



Quote   Quote: Originally Posted by essenbe View Post
I'm not familiar with gigabyte boards, but I would disable on board IDE controller and on board sata/IDE controller set to ahci.

Ok i will do it now,well for 100th time restarting.........
My System SpecsSystem Spec
