Windows 7: My first solid state.

29 Aug 2011   #51
pooch

Windows 7 Ultimate x64



I think it is the SATA RAID/AHCI mode this may be only for RAID notice you have the setting twice. It is certainly very confusing the way it is done, what other options do you have for this?
To clarify I think this setting is wrong


My System SpecsSystem Spec
.
29 Aug 2011   #52
Hopalong X

Windows7 Pro 64bit SP-1; Windows XP Pro 32bit



I just got home so give me a few minutes.

Make sure AHCI is turned on in Bios.

If it is then make sure AHCI is turned on in Windows.
This is Barefoot Kids tutorial.
AHCI : Enable in Windows 7 / Vista

All the proper settings for Windows are shown in the tutorial.
My System SpecsSystem Spec
29 Aug 2011   #53
panais

Windows 7 Ultimate 64bit SP1



Quote   Quote: Originally Posted by Hopalong X View Post
I just got home so give me a few minutes.
I have 2 ANCI in bios 1 is first in the list and the other is ninth in the list.

So,which one i must enable before installing ssd?


Attached Thumbnails

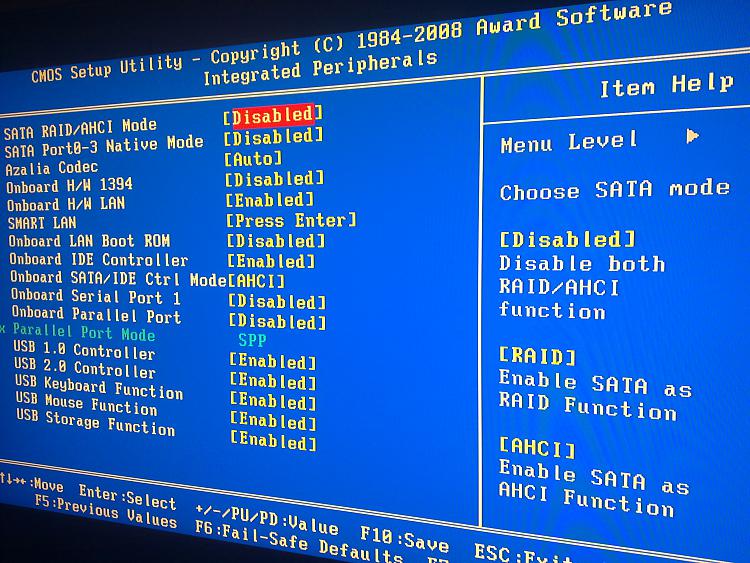

My first solid state.-first-anci-list-menu.jpg   My first solid state.-first-anci-list-options.jpg   My first solid state.-second-first-anci-list-menu.jpg   My first solid state.-second-first-anci-list-options.jpg
My System SpecsSystem Spec
.

29 Aug 2011   #54
pparks1

Windows 7 Ultimate x64



Quote   Quote: Originally Posted by panais View Post
Do you see anything bad?

Before the ssd installation i enable that in the red circle.

Now i enable that in blue.

I think i made something wrong!
In the top part of your screenshot, you are setting the AHCI settings and such for the Intel ICH9R southbridge controllers.

The second AHCI settings is for the secondary controller on your motherboard. I'm betting you have nothing plugged into either of these ports and hence the reason it says it finds nothing. You should be able to change it from AHCI to disabled, and get rid of that message at boot.

I'd think you are plugged into the block of 4 ports and that's the Intel Controller and then one that I would use. If you have nothing in the other 2, I would set that to Disabled.
My System SpecsSystem Spec
29 Aug 2011   #55
pparks1

Windows 7 Ultimate x64



Quote   Quote: Originally Posted by Hopalong X View Post
The first line in the screen shot "SATA RAID/AHCI Mode" has to show ENABELED not Disabled as it shows now..
And the line that says onboard SATA/IDE Contr can likely be set to disabled. -- I believe this is the one that is throwing the error.
My System SpecsSystem Spec
29 Aug 2011   #56
panais

Windows 7 Ultimate 64bit SP1



Quote   Quote: Originally Posted by Hopalong X View Post
I just got home so give me a few minutes.

Make sure AHCI is turned on in Bios.

If it is then make sure AHCI is turned on in Windows.
This is Barefoot Kids tutorial.
AHCI : Enable in Windows 7 / Vista

All the proper settings for Windows are shown in the tutorial.
Quote   Quote: Originally Posted by pparks1 View Post
Quote   Quote: Originally Posted by panais View Post
Do you see anything bad?

Before the ssd installation i enable that in the red circle.

Now i enable that in blue.

I think i made something wrong!
In the top part of your screenshot, you are setting the AHCI settings and such for the Intel ICH9R southbridge controllers.

The second AHCI settings is for the secondary controller on your motherboard. I'm betting you have nothing plugged into either of these ports and hence the reason it says it finds nothing. You should be able to change it from AHCI to disabled, and get rid of that message at boot.

I'd think you are plugged into the block of 4 ports and that's the Intel Controller and then one that I would use. If you have nothing in the other 2, I would set that to Disabled.
If i understand well i must enable the first anci and disable the ninth?

(I really sorry guys i never had ssd before or anci or raid)
My System SpecsSystem Spec
29 Aug 2011   #57
pparks1

Windows 7 Ultimate x64



Quote   Quote: Originally Posted by panais View Post
If i understand well i must enable the first anci and disable the ninth?

(I really sorry guys i never had ssd before or anci or raid)
Whether or not you enable one and disable the other depends upon how many devices you have plugged into your motherboard. In your mobo, that first option sets ports 0 through 3. If you had other devices plugged into the other 2 ports, you would need those ports enabled as well.

Setting to AHCI usually gives you more performance, at least it benchmarks better.

So, if you have 4 or less SATA devices connected, you should be able to disable the onboard option and it should eliminate that error you see.
My System SpecsSystem Spec
29 Aug 2011   #58
Hopalong X

Windows7 Pro 64bit SP-1; Windows XP Pro 32bit



The first line in the screen shot "SATA RAID/AHCI Mode" has to show ENABELED not Disabled as it shows now.


Yes enable #1 and disable #9. That should fix it.
My System SpecsSystem Spec
29 Aug 2011   #59
panais

Windows 7 Ultimate 64bit SP1



Quote   Quote: Originally Posted by pparks1 View Post
Quote   Quote: Originally Posted by panais View Post
If i understand well i must enable the first anci and disable the ninth?

(I really sorry guys i never had ssd before or anci or raid)
Whether or not you enable one and disable the other depends upon how many devices you have plugged into your motherboard. In your mobo, that first option sets ports 0 through 3. If you had other devices plugged into the other 2 ports, you would need those ports enabled as well.

Setting to AHCI usually gives you more performance, at least it benchmarks better.

So, if you have 4 or less SATA devices connected, you should be able to disable the onboard option and it should eliminate that error you see.
I have ocz vertex in 0 wd1.5tb in 1 wd1.5tb in 2 and dvdron in 3
My System SpecsSystem Spec
29 Aug 2011   #60
pparks1

Windows 7 Ultimate x64



So, disable the onboard controller then, and I bet your error goes away at startup. You have 4 devices and they are all running on the Intel controllers.
My System SpecsSystem Spec
