Windows 7: ram memory issue

07 May 2011   #21
adieitan96

Windows 8 Pro x64



so it should be like that?? it has to be only 3.87GB usable?

what is this "HPET mode" in the bios settings?? because it's on "32 bit mode"


My System SpecsSystem Spec
.
07 May 2011   #22
Brink

64-bit Windows 10 Pro



That's what we're trying to determine for sure or not. Hopefully not.

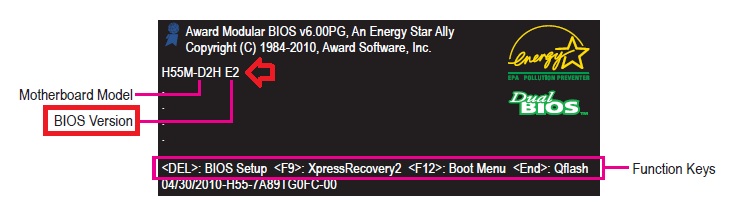

Do you have the latest F3 BIOS version flashed for your motherboard? It's suppose to have "Improve memory compatibility" that may help with this.

ram memory issue-bios.jpg


EDIT:

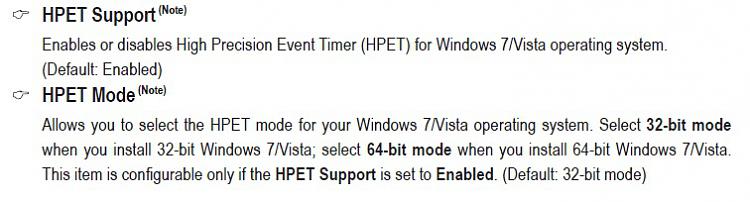

You should have HPET Mode set to 64-bit mode since you have 64-bit Windows 7 installed.

ram memory issue-hpet.jpg


My System SpecsSystem Spec
07 May 2011   #23
stormy13
Microsoft MVP

Win 7 Ultimate x64



Quote   Quote: Originally Posted by adieitan96 View Post
i read brink's answer and the onboard VGA setting is enabled
Is it set to Enabled or Enable If No Ext PEG? Enabled forces it on all the time whether you use it or not, the default Enable If No Ext PEG will disable it when a video card is used.

As for the memory remapping, unless I missed it in the manual it isn't there which means that it is enabled by default.
My System SpecsSystem Spec
.

07 May 2011   #24
adieitan96

Windows 8 Pro x64



Quote   Quote: Originally Posted by Brink View Post
That's what we're trying to determine for sure or not. Hopefully not.

Do you have the latest F3 BIOS version flashed for your motherboard? It's suppose to have "Improve memory compatibility" that may help with this.

Attachment 153262


EDIT:
You should have HPET Mode set to 64-bit mode since you have 64-bit Windows 7 installed.

Attachment 153264
i have restarted my computer and it says h55m-d2h F2
My System SpecsSystem Spec
07 May 2011   #25
adieitan96

Windows 8 Pro x64



Quote   Quote: Originally Posted by stormy13 View Post
Quote   Quote: Originally Posted by adieitan96 View Post
i read brink's answer and the onboard VGA setting is enabled
Is it set to Enabled or Enable If No Ext PEG? Enabled forces it on all the time whether you use it or not, the default Enable If No Ext PEG will disable it when a video card is used.

As for the memory remapping, unless I missed it in the manual it isn't there which means that it is enabled by default.
Enable If No Ext PEG
My System SpecsSystem Spec
07 May 2011   #26
Brink

64-bit Windows 10 Pro



Quote   Quote: Originally Posted by adieitan96 View Post

i have restarted my computer and it says h55m-d2h F2
That indicates that you have the older F2 version flashed. If you would like to flash your BIOS to the latest F3 version, you can get it at the link below. Once you download the self extracting EXE file, run the EXE file to extract the contents to your desktop. The h55md2h.f3 file is your BIOS file. If you read starting at page 64 in your motherboard's manual (click on link) for Q-Flash. It will give you details on how to flash your motherboard with Q-Flash. If you do not have a USB key to put the extracted files on to use with Q-Flash, then you could just manually navigate to and select the h55md2h.f3 file on your desktop while in Q-Flash.

GIGABYTE - Motherboard - Socket 1156 - GA-H55M-D2H (rev. 1.3)



warning   Warning
Be sure that you do exactly as the manual says. One mistake could make a dead brick out of your motherboard. If you are not comfortable doing this, then it would be best not to do so to avoid the risk.
My System SpecsSystem Spec
07 May 2011   #27
adieitan96

Windows 8 Pro x64



i prefers not to do that alone, unless ill give it to a Professional that will help me with that.. anyway thanks a lot
My System SpecsSystem Spec
07 May 2011   #28
Brink

64-bit Windows 10 Pro



You're welcome. That would be the safest thing to do.

Just as a test using the tutorial below, see what happens when you check the Maximum memory box and select (with arrows) the maximum amount of memory it will let you to. 4096 if it will let you select all 4GB. If it doesn't help, then just go back and uncheck the Maximum memory box again.

Memory - Set Maximum Amount Used by Windows 7
My System SpecsSystem Spec
07 May 2011   #29
adieitan96

Windows 8 Pro x64



iv'e done that before and when i checked it it shows me 3.49GB, less from now
My System SpecsSystem Spec
07 May 2011   #30
Brink

64-bit Windows 10 Pro



LOL, we wouldn't want to go back to that then.

I must admit that I'm out of ideas other than flashing your BIOS to F3 when you are able to get a friend that knows more about it to help, if you wanted to.
My System SpecsSystem Spec
