Windows 7: Show us your hard drive performance

04 Jul 2009   #201
Muad Dib

XP Pro & Vista Home Premium (x86); Windows Ultimate 7600 x64 Retail



Quote   Quote: Originally Posted by zrtom View Post
@Maud Dib,
I've been able to do a W7 upgrade on a 30GB SSD. Couldn't on a 16GB but it worked on a 30.
Quote   Quote: Originally Posted by DJG View Post
My vanilla 7260 install uses up 13.1GB, so yeah there wouldn't be much left in a 16GB drive, esp. since there's even less after formatting and factoring in real-life capacity rather than advertised capacity (e.g. 750GB translates to 698GB) which I think comes from using 1000 in advertising rather than 1024, or maybe not ...
Confirms what I suspected. An SSD for W7 probably needs to be 64GB in size (1x64GB or 2x32GB Raid 0, etc). That drives up the cost to achieve SSD performance for the OS installation. The 2x32GB Raid will also be problematic for many stock system configurations that only have space/connections for 4 SATA devices.


My System SpecsSystem Spec
.
09 Jul 2009   #202
pparks1

Windows 7 Ultimate x64



I just tested my Seagate 7200.12 1TB drive in my new machine and here are the results. I'm happy with everything except that Random Access Time number,
My System SpecsSystem Spec
09 Jul 2009   #203
V8307

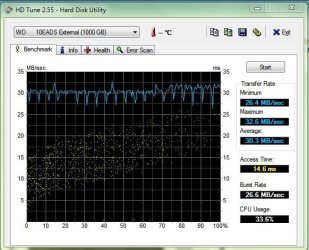

Show us your hard drive performance-untitled.jpg

Heres mine i think......

Oh and hi, my first post here and just learning my way around.

Mark


My System SpecsSystem Spec
.

09 Jul 2009   #204
bloke

Windows 7 7600 x64 (16385) Ultimate,Windows Vista x64 Ultimate



Quote   Quote: Originally Posted by pparks1 View Post
I just tested my Seagate 7200.12 1TB drive in my new machine and here are the results. I'm happy with everything except that Random Access Time number,
Hey! I have the 40ns version of ur drive, every scrore is about the same as urs but my access time is around 13ms. Something is up with ur score, i have an ata100 that gets 21ms. Have u tried closing tasks running in the background in task manager, and change ur theme to basic and see if that helps. If the drive is being used when doing the test then its trying to multitask on a mechanical hard drive, which usually doesnt turn out the best.
My System SpecsSystem Spec
10 Jul 2009   #205
ciphernemo

Windows 7 Ultimate 64-bit RTM



Quote   Quote: Originally Posted by bloke View Post
Hey! I have the 40ns version of ur drive, every scrore is about the same as urs but my access time is around 13ms. Something is up with ur score, i have an ata100 that gets 21ms. Have u tried closing tasks running in the background in task manager, and change ur theme to basic and see if that helps. If the drive is being used when doing the test then its trying to multitask on a mechanical hard drive, which usually doesnt turn out the best.
Yes, I agree, his access times are a little too high. Perhaps the drive is badly fragmented, running low on space, or just not configured properly in Windows? The seek time should be around half of what is shown there.
My System SpecsSystem Spec
10 Jul 2009   #206
ciphernemo

Windows 7 Ultimate 64-bit RTM



Quote   Quote: Originally Posted by V8307 View Post
Oh and hi, my first post here and just learning my way around.
Welcome to the Windows Seven Forums, Mark!
My System SpecsSystem Spec
10 Jul 2009   #207
pparks1

Windows 7 Ultimate x64



Quote   Quote: Originally Posted by ciphernemo View Post
Yes, I agree, his access times are a little too high. Perhaps the drive is badly fragmented, running low on space, or just not configured properly in Windows? The seek time should be around half of what is shown there.
My box is a brand new build. There is next to nothing installed, the box wasn't being used when the test was run. My hard drive is configured with a 150GB C drive and the remaining 800GB or so as the D drive. My C drive has 120GB free. My drive was defragged before this test was run.

I'm running on a Gigabyte GA-EP45-UD3R mobo, revision 1.1 on the latest BIOS, 8GB of RAM, an Intel Q9550 quad core CPU and an Nvidia 9800GTX+ video card.

I'm not running in AHCI or RAID mode, but rather native IDE. I'm also plugged into the Southbridge using the Intel ICH10R controller on the mobo.

I believe that I am using the native Windows 7 driver for the controller. Maybe I need to change that. Any suggestions?

The box seems extremely fast and my performance is fantastic..as far as I can tell. Without this benchmark result, I would have never suspected any problems whatsoever.

Edit: I do have write caching enabled on the drive under the Policies tab.
My System SpecsSystem Spec
10 Jul 2009   #208
samstar1412

32bit-Vista Home Premium SP2, 32bit-Windows 7 Ultimate RC, also got Mac OS X 10.5.7 (in VMware)



Just did a quick test on my laptops drive not sure what brand or model all i know is its 320gb


Attached Images

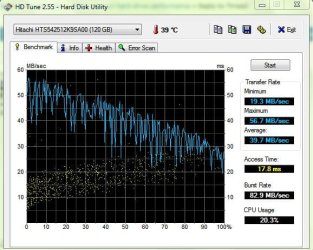

Show us your hard drive performance-laptopreadbench.jpg
My System SpecsSystem Spec
10 Jul 2009   #209
ciphernemo

Windows 7 Ultimate 64-bit RTM



Quote   Quote: Originally Posted by pparks1 View Post
I'm not running in AHCI or RAID mode, but rather native IDE. I'm also plugged into the Southbridge using the Intel ICH10R controller on the mobo.

I believe that I am using the native Windows 7 driver for the controller. Maybe I need to change that. Any suggestions?
Did you install the chipset drivers for your motherboard and its ICH10 southbridge? Download from Intel® X58 Express Chipset - Chipset information and downloads, or better yet, get it from your motherboard manufacturer's site.
My System SpecsSystem Spec
10 Jul 2009   #210
pparks1

Windows 7 Ultimate x64



Quote   Quote: Originally Posted by ciphernemo View Post
Did you install the chipset drivers for your motherboard and its ICH10 southbridge? Download from Intel® X58 Express Chipset - Chipset information and downloads, or better yet, get it from your motherboard manufacturer's site.
I don't have the X58 chipset as I'm not using the LGA1366 chip, but rather I have the P45 chipset with the LGA 775 Q9550 Intel Quad Core Chip.

I've been on the Gigabyte website and they only driver that they show for the GA-EP45-UD3R rev 1.1 under Windows 7 (32 or 64), is an audio driver. I see that there is a driver for the SATA controller for Windows Vista (32 or 64).....but I'm not sure if it's wise to install that driver under Windows 7.

I checked the Intel website under the 4 series chipsets.....and I don't see anything other than a video driver for onboard video....which certainly doesn't apply to me.

Does it really make sense that this could be a driver issue since I'm getting nearly 100MB/s throughput on the device under the driver that I am currently using? It seems like if my driver was off and not setup properly...I wouldn't get the performance out of the drive that I am seeing.
My System SpecsSystem Spec
