Windows 7 and UEFI BIOS Boot Manager error 0xc000000e


  1. Posts : 17
    Windows 7 Home Premium x64 SP1
       #1

    Windows 7 and UEFI BIOS Boot Manager error 0xc000000e


    I just flashed a UEFI BIOS and did a clean install. I'm getting the error 0xc000000e only on reboot. If i shut down and turn on again it boots windows no problem. Please help!
    Last edited by AnthonyP; 19 Jun 2014 at 14:29.
      My Computer

  2.    #2

    What are the exact UEFI, CSM and Legacy BIOS settings in BIOS setup? Did you do a UEFI install, booting from a UEFI device to install, or did you install to Legacy MBR disk?

    Unplug all peripherals and try again.

    If you can get into Safe Mode, establish a Clean Boot from Troubleshooting steps in picture below. Then test your hard drive, RAM and work through the other steps to go over your install and hardware.
      My Computer


  3. Posts : 17
    Windows 7 Home Premium x64 SP1
    Thread Starter
       #3

    I installed in Legacy but the BIOS had both the Legacy and UEFI options activated so it could boot to either. I am missing the 100MB system reserved partition and there is no other FAT32 EFI partition. The whole disk is just formatted for the OS.
      My Computer

  4.    #4

    Again the problem could be in the UEFI settings which is why I asked for what they offer exactly. Camera snaps of everything pertaining to and in the area of UEFI, CSM, Legacy BIOS and related settings would be good. Screenshots and Files - Upload and Post in Seven Forums - Windows 7 Forums

    If you were not issued a System Reserved partition then you had to pre-format the partition. Is this correct? How did you do this exactly?

    Please also post back a screenshot of Disk Management - Post a Screen Capture Image.

    Establish a Clean Boot, check the System Resources and logs, test your hardware and go over the other Troubleshooting Steps for Windows 7 which normally uncover the problem.
      My Computer


  5. Posts : 17
    Windows 7 Home Premium x64 SP1
    Thread Starter
       #5

    There is nothing wrong with my hardware, I did not pre-format the partition. I installed like a clean install. I set my mobo to defaults in UEFI changed the SATA controller from IDE to AHCI and booted the Windows DVD. Installed it to the unreserved SSD nothing special.
    Attached Thumbnails Attached Thumbnails Windows 7 and UEFI BIOS Boot Manager error 0xc000000e-untitled2.png   Windows 7 and UEFI BIOS Boot Manager error 0xc000000e-untitled.jpg
      My Computer

  6.    #6

    I thought you indicated in first post it would still boot so that's why I asked for Disk Mgmt screenshot (twice). Is there something preventing this? We've done this thousands of times here so know what is needed and expect close cooperation as these are critical operations.

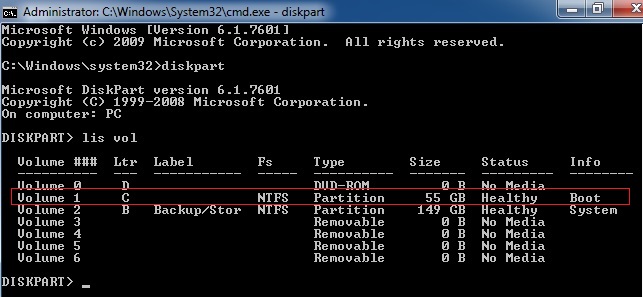

    It placed the System boot files on the 149gb Backup/Storage partition, as you can see in the DIskpart screenshot showing all Volumes. The Boot label on C only means it is the presently-booted partition.

    This is why it didn't issue a System Reserved partition during install to a blank HD, because you had not unplugged all other drives so it will place the System boot files on the first available Primary partition.

    To remedy this, Mark Win7 Partition Active then power down to unplug all other drives, swap the cable for drive labeled Disk0 in Disk Mgmt to Win7 drive, boot into Win7 installation media System Recovery Options to run Startup Repair - Run 3 Separate Times until Win7 boots and holds the System flag.

    When you plug back in the other drives make sure Win7 drive remains set first hard drive to boot in BIOS setup, then mark the Storage partition Inactive: Partition - Mark as Inactive - Windows 7 Forums.
      My Computer
