Windows 7: Build your own External Hard Drive

25 Jun 2011   #91
Cr00zng

Windows 7 64-bit, Windows 8.1 64-bit, OSX El Capitan, Windows 10 (VMware)



Oops, thanks for the correction pparks...

The HD Tune benchmark results are confusing for me.

Seagate 1 TB internal on a SATA 2 port:

Build your own External Hard Drive-internal-seagate-sata2.png

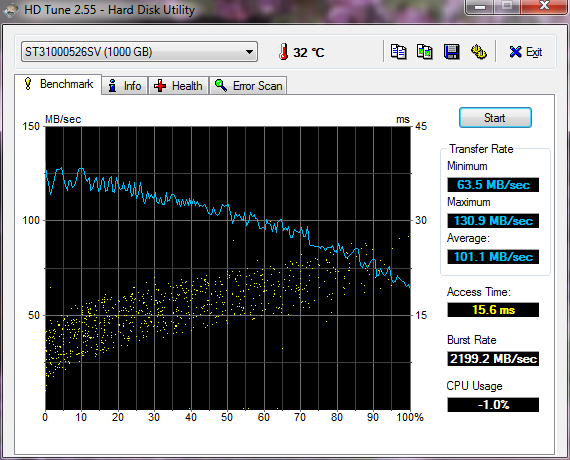

Segate 1 TB external on eSATA 3 port (Marvell 91xx):

Build your own External Hard Drive-external-seagate-esata3.png

The identical drives had been purchased at the same time; the internal drive has about 4% usage while the external does 38%. Yes, I did rerun the tests and had the same results.

Why would there be such a wide gap in access time and burst, even if they are connected to different SATA ports?

Just for curiosity, I've tested my older machine (specs in my profile).

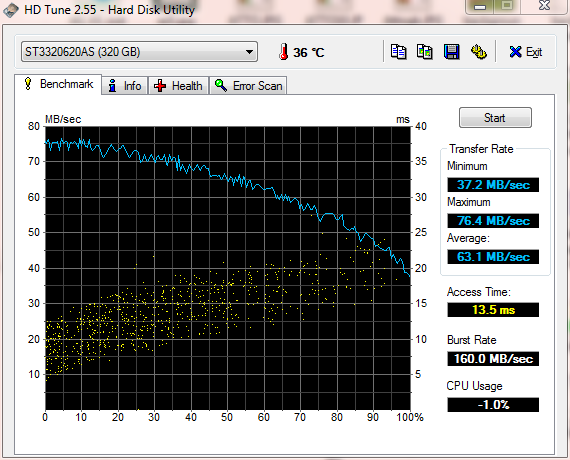

Internal Seagate 320 GBs on SATA 2 port, the drive is four years old:

Build your own External Hard Drive-p7p55-sata2.png

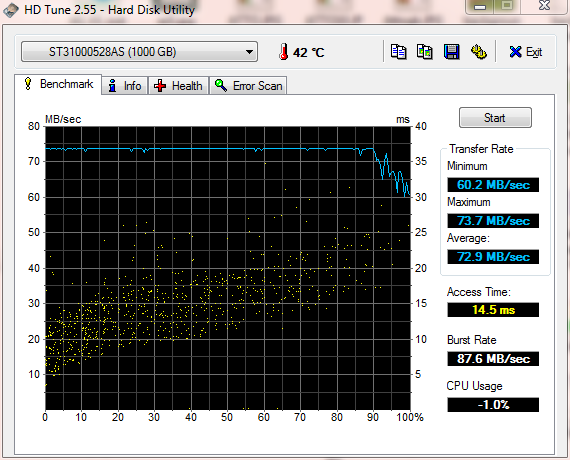

And this is the external Seagate 1 TB (different model# from the above) on eSATA 2 port, the drive is about 7 month old:

Build your own External Hard Drive-p7p55-esata2.png

I am puzzled... the four years old drive has better access time than the 2-7 month old?




My System SpecsSystem Spec
.
25 Jun 2011   #92
pparks1

Windows 7 Ultimate x64



The thing with benchmarks is that they are not always consistent.

For example, run HDTune 10 times in a row. Your numbers won't be the same...but they really should be.

When I build my current machine, 2 years ago, I went with a 1TB Seagate 7200.12. It performed great, but benchmarks it had about 25ms access time for some reason. No matter what port, what cable, what drives, or what OS.... (vista or 7), I showed this same slow access time. Real world usage didn't seem to indicate anything was wrong. It was this very problem that brought me to this forum.

In the end, I ended up buying a WD Caviar Black 1TB for my new machine, and it was about 15Mb/s slower transfer, but was around 8-10ms access time. I put the Seagate 7200.12 in my older Linux desktop, and it came back with 12ms access times and has performed just fine.

Benchmarks for me, are not the be-all end all for my performance. They are simply an indicator showing that nothing is terribly wrong or broken.

If you put that same 2-7 month old hard drive in 5 different boxes, you would likely get 5-7 different results. Don't fret over 1-2ms, it's simply just not worth it.
My System SpecsSystem Spec
25 Jun 2011   #93
essenbe

Windows 10 Pro/ Windows 10 Pro Insider



I have a very similar opinion of benchmarks.I started off by cheking my SSD. With AS SSD the numbers were all over the place. I'v seen scores of 335 and other times I've seen scores of 440. Yet, in actual useage I could tell no difference. Startup times were the same and apps opened the same. I've come to the conclusion that benchmarks have no bearing on actual usage.
My System SpecsSystem Spec
.

25 Jun 2011   #94
James Colbert




Thanks for the heads up on the Samsung/Newegg special. I picked on up just before the offer expired. I just now initialized and created a partition on it to make sure it was operable (life is busy...). It is. Great deal. Thanks!
My System SpecsSystem Spec
25 Jun 2011   #95
linnemeyerhere

Microsoft Community Contributor Award Recipient

Windows 7 Ultimate 64



For the heavy data whores and you know who you are this bad boy or the like is the direction I would tend to go. Smallish foot print with massive expand ability.
Sans Digital TR5UTP Hard Drive Enclosure - 5 Bay, 3.5, SATA to USB 3.0eSATA, RAID, 2-Port eSATA PCIe Card Included at TigerDirect
4 bay in black.....nice!
http://biz.tigerdirect.com/applicati...223&CatId=2780
My System SpecsSystem Spec
25 Jun 2011   #96
essenbe

Windows 10 Pro/ Windows 10 Pro Insider



Quote   Quote: Originally Posted by linnemeyerhere View Post
For the heavy data whores and you know who you are this bad boy or the like is the direction I would tend to go. Smallish foot print with massive expand ability.
Sans Digital TR5UTP Hard Drive Enclosure - 5 Bay, 3.5, SATA to USB 3.0eSATA, RAID, 2-Port eSATA PCIe Card Included at TigerDirect
4 bay in black.....nice!
Sans Digital TR4M-BP Hard Drive Enclosure - 4-Bay 3.5 SATA to eSATA, RAID 0, 1, 5, 10, JBOD, SATA 6G PCIe Card at TigerDirect
I've thought about it but don't know If I want to go that route. But I do have enough hard drives to fill them up.
My System SpecsSystem Spec
25 Jun 2011   #97
Cr00zng

Windows 7 64-bit, Windows 8.1 64-bit, OSX El Capitan, Windows 10 (VMware)



Quote   Quote: Originally Posted by pparks1 View Post
When I build my current machine, 2 years ago, I went with a 1TB Seagate 7200.12. It performed great, but benchmarks it had about 25ms access time for some reason. No matter what port, what cable, what drives, or what OS.... (vista or 7), I showed this same slow access time. Real world usage didn't seem to indicate anything was wrong. It was this very problem that brought me to this forum.
Maybe I should've listen and leave the machine alone, but no...

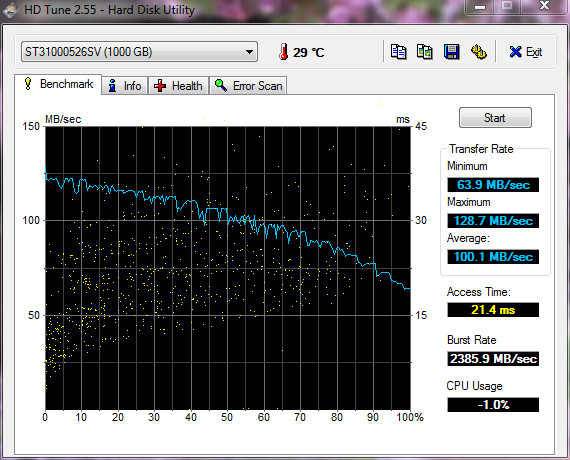

I moved the internal drive to the Marvell based SATA 3 port and might as well, changed the cable:

Build your own External Hard Drive-internal-marvell-91xx-port.png

Other than the huge increase in burst rate, which is doubtful at best, there's no change in the benchmark performance. Or for that matter, in the real world usage performance as you've stated.

Quote   Quote: Originally Posted by pparks1 View Post
Benchmarks for me, are not the be-all end all for my performance. They are simply an indicator showing that nothing is terribly wrong or broken.

If you put that same 2-7 month old hard drive in 5 different boxes, you would likely get 5-7 different results. Don't fret over 1-2ms, it's simply just not worth it.
1-2ms agreed, but when the difference is about 6ms that does indicate some issues; however, the difference is still not to the point to be worth for looking into it further. Especially when the drive works just fine otherwise.

The issue could still be the benchmarking tools and/or the drive quality in itself. I could swap the drive to verify it, but at this point it isn't worth for the effort...


My System SpecsSystem Spec
27 Jun 2011   #98
Hopalong X

Windows7 Pro 64bit SP-1; Windows XP Pro 32bit


FYI

Newegg U.S.- 20% off external enclosures or docks. June 27-28.
Not sure about Canada.

I also posted on the Deals thread in Chill Room.
It seemed appropriate here also this one time.

Newegg.com - External Enclosures, External Hard Drive Enclosures
--


Attached Thumbnails
Build your own External Hard Drive-ext-enclosures.png
My System SpecsSystem Spec
27 Jun 2011   #99
pparks1

Windows 7 Ultimate x64



Quote   Quote: Originally Posted by Cr00zng View Post
Other than the huge increase in burst rate, which is doubtful at best,
Yeah, that burst rate is obviously not realistic...clearly the benchmark is not working properly or measuring remotely accurately.

Quote   Quote: Originally Posted by Cr00zng View Post
1-2ms agreed, but when the difference is about 6ms that does indicate some issues; however, the difference is still not to the point to be worth for looking into it further. Especially when the drive works just fine otherwise.
Exactly, my random access times on my Seagate 7200.12 read in the 20-25ms range on my box. I drove myself nuts and replaced it with a WD Caviar Black. All-in-all, I can tell no performance difference between the drives on the actual machine. That Seagate in another machine is fine. So, I'm unsure if there were any actual issues, but I felt better seeing that my access times were lower with the WD. And just being a storage drive in the end (as I'm now using an SSD for the OS)...the access times are far less important now.
My System SpecsSystem Spec
29 Jun 2011   #100
essenbe

Windows 10 Pro/ Windows 10 Pro Insider

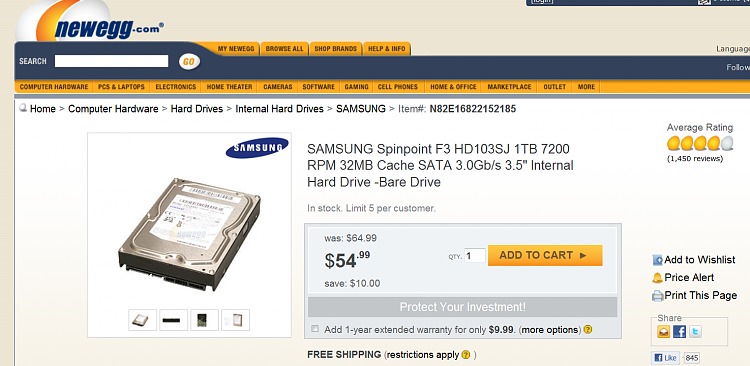

Newegg Samsung Spinpoint $55.00
Build your own External Hard Drive-capture.png


My System SpecsSystem Spec
